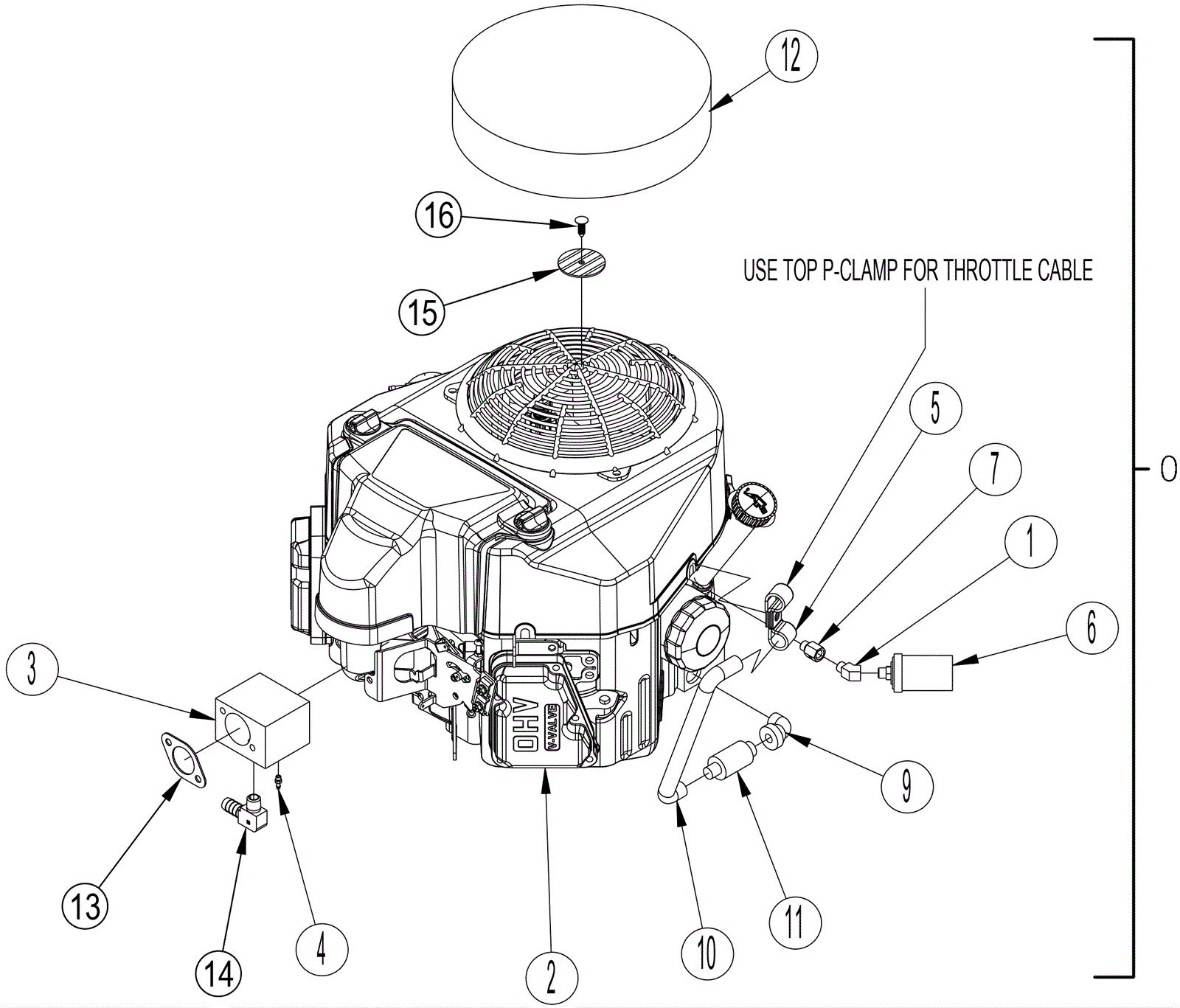

Engine Assembly

#PartDescription ReqNotesAvailability
0a 472-7668 ENGINE KIT-603CC CAT-11 1 (includes 1-2, 3b-13, 14b-16) (only used on models 56381402, 56381407 and 56381454)
0b 472-7478 ENGINE KIT-603CC MUFF 1 (includes 1-3a, 4-14a, 15-16) (only used on models 56381404, 56381405 and 56381406)
1 372-3698 Elbow (OBSOLETE) 1
2 N/A Not available 1 (kawasaki engine)
3a 472-7448 CARBURETOR-LPG 1 (only used on models 56381404, 56381405 and 56381406)
3b 472-7666 CARBURETOR-LP-11 1 (only used on models 56381402, 56381407 and 56381454)
4 472-7453 FITTING-1/8 BARB X 10-32 1
5 272-3351 P clamp 2
6 170-3221 Oil pressure switch, 3-prong molded plug 1
7 372-3186 Adapter 1
9 170-3238 Street elbow 1
10 372-1226 1/2 inch drain hose 1
11 154-0042 Oil drain valve kit 1
12 272-6584 Dust bonnet 1
13 472-7450 GASKET-CARBURETOR 1
14a 472-7459 ELBOW-90 BARB W/ORIFICE 1 (only used on models 56381404, 56381405 and 56381406)
14b 472-7667 ELBOW-90 BARB W/ ORIFICE-11 1 (only used on models 56381402, 56381407 and 56381454)
15 472-7833 BONNET RETAINER 1
16 272-2117 Nylon tree push-in rivet 1
N/S 178-0254 Oil filter 1
N/S 991-6027 Oil filter 1 (NON-OEM)
N/S 166-0008 Spark plug (Kawasaki FS481V) 2
N/S 178-0264 Ignition coil assembly Kawasaki FS481V 2
N/S 991-7143 Ignition coil assembly 2 (NON-OEM)
N/S 178-0256 Air filter 1
N/S 472-7677 BRACKET-MUFFLER 1
N/S 178-0255 Air pre-filter 1
N/S 991-6028 Air pre-filter 1 (Non-Oem)
N/S 272-7307 Starter 1
N/S 272-7283 Exhaust gasket 1
N/S 472-7468 ELBOW-A/C 1
N/S 472-7469 HOSE-BREATHER 1
N/S 189-3090 Oil dipstick 1
N/S 472-7480 GASKET KIT-FS481V 1
