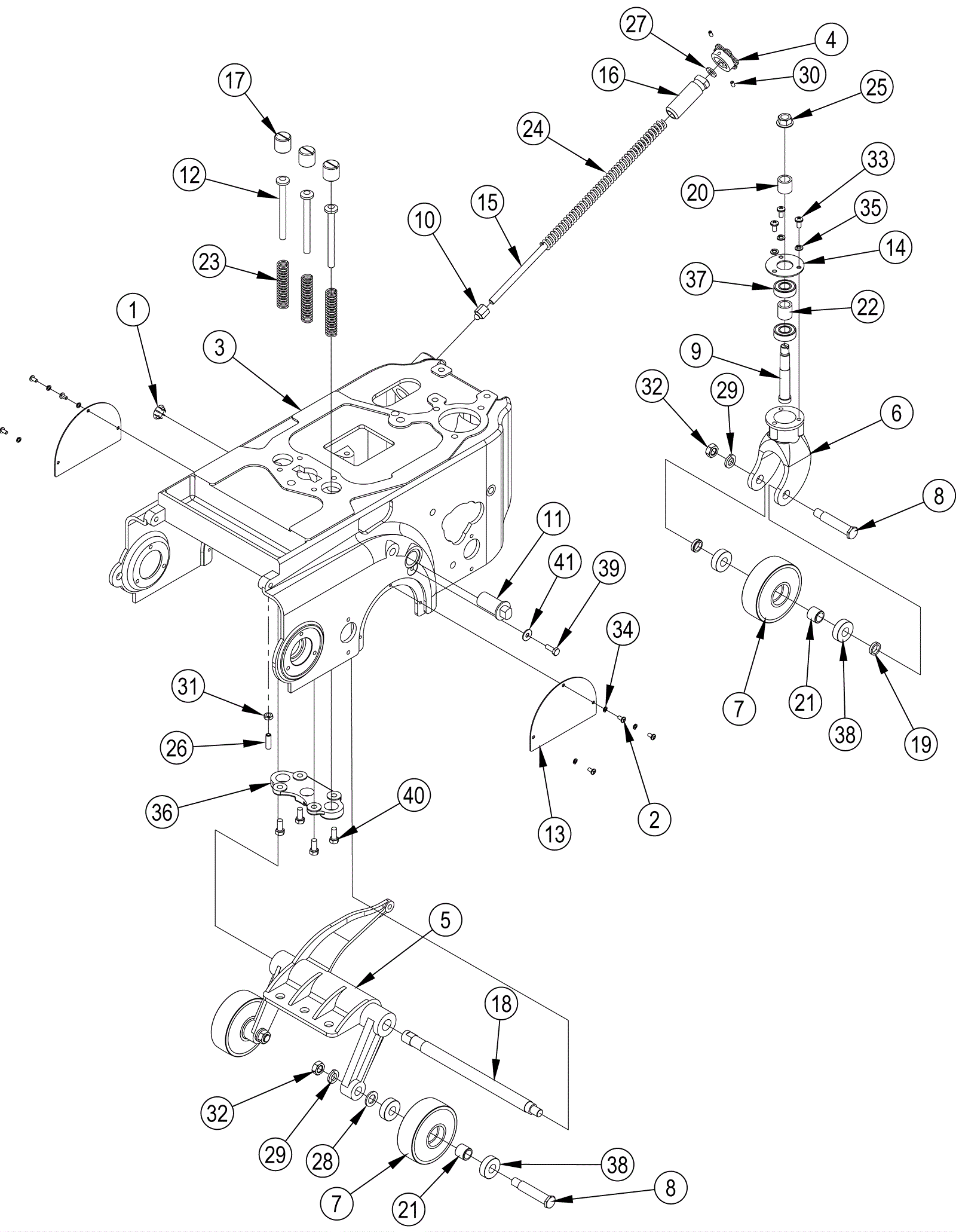

American 12 Base Assembly(models 07044C,07049C)

#PartDescriptionPriceReqNotesAvailability
1 154-3987 25/32 inch button plug $8.93 1 usually ships 12-17 days
2 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 6 ships same day
3 170-0136 frame(obsolete) Call for price 1 usually ships 17-28 days
4 372-1894 Knob $63.61 1 usually ships 12-17 days
5 170-0138 reach lever(obsolete) Call for price 1 usually ships 17-28 days
6 372-1916 Wheel yoke $203.89 1 usually ships 12-17 days
7 154-3744 Steel wheel $280.26 3 usually ships 12-17 days
8 372-1917 Axle $36.77 3 usually ships 12-17 days
9 372-1907 Pivot bolt $40.11 1 usually ships 12-17 days
10 372-1923 Nut $44.42 1 usually ships 12-17 days
11 372-1905 Eccentric $38.50 1 usually ships 12-17 days
12 372-1900 Spring plunger $41.34 3 usually ships 12-17 days
13 372-1903 Cover plate $33.32 2 usually ships 12-17 days
14 372-1914 Bearing retainer (OBSOLETE) Call for price 1 usually ships 17-28 days
15 170-0146 rod pilot(obsolete) Call for price 1 usually ships 17-28 days
16 372-1896 Drum pressure screw $54.98 1 usually ships 12-17 days
17 170-0199 screw(obsolete) Call for price 3 usually ships 17-28 days
18 170-0200 shaft lever(obsolete) Call for price 1 usually ships 17-28 days
19 372-1932 Spacer $9.92 2 usually ships 12-17 days
20 170-0201 spacer(obsolete) Call for price 1 usually ships 17-28 days
21 372-1934 Spacer $5.75 3 usually ships 12-17 days
22 170-0202 spacer drum sander(obsolete) Call for price 1 usually ships 17-28 days
23 372-1901 Spring $13.32 3 usually ships 12-17 days
24 170-0205 spring drum(obsolete) Call for price 1 usually ships 17-28 days
25 370-5210 NUT LARGE FLANGE 1/2-13 $2.35 1 usually ships 12-17 days
26 370-6235 SCR 5/16-18X1 ST ST CUP PT $1.72 1 usually ships 12-17 days
27 170-8184 Washer $3.45 1 usually ships 1-5 days
28 370-6324 WASHER .59X1.00X.09 FLAT ST $3.45 2 usually ships 12-17 days
29 370-6352 WASHER LOCK 1/2 NOM $1.21 3 usually ships 12-17 days
30 370-6472 SET SCREW-10-24X3/8 CONE POINT $1.87 2 usually ships 12-17 days
31 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
32 999-0050 Nut 1/2-13 hex jam plain finish $0.99 3 ships same day
33 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 3 ships same day
34 170-6125 Washer 1/8 lock $1.21 6 usually ships 1-5 days
35 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
36 170-0222 plunger plate(obsolete) Call for price 1 usually ships 17-28 days
37 372-1915 Ball bearing $38.50 2 usually ships 12-17 days
38 172-4656 Ball bearing $22.77 6 ships same day
39 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
40 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
41 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
