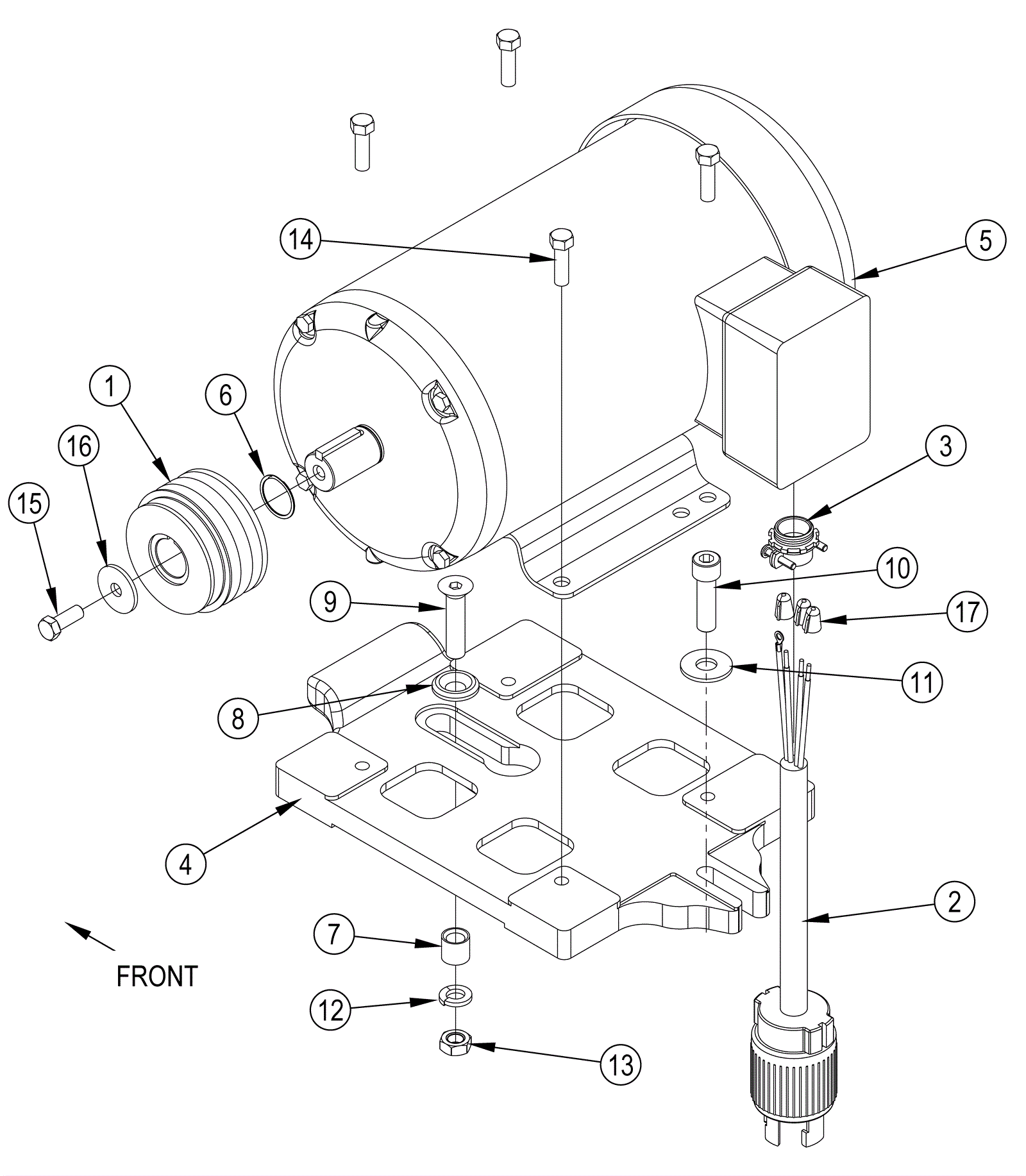

American 12 Motor Assembly (model 07001A)

#PartDescriptionPriceReqNotesAvailability
1 170-3422 motor pulley (obsolete) Call for price 1 usually ships 17-28 days
2 170-3419 motor cord (obsolete) Call for price 1 usually ships 17-28 days
3 170-3430 cable connector (obsolete) Call for price 1 usually ships 17-28 days
4 170-4351 platform motor black (obsolete) Call for price 1 usually ships 17-28 days
5 170-4488 motor 10 30230/460v (obsolete) Call for price 1 usually ships 17-28 days
6 372-1882 Retaining ring $5.24 1 usually ships 12-17 days
7 170-4489 spacer screw motor (obsolete) Call for price 1 usually ships 17-28 days
8 170-4540 washer screw motor(obsolete) Call for price 1 usually ships 17-28 days
9 370-6018 SCREW 1/2-13 X 2 1/4 FLAT HD $8.80 1 usually ships 12-17 days
10 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 1 ships same day
11 372-1806 Washer .56 x 1.38 x .11 flat (OBSOLETE) Call for price 1 usually ships 17-28 days
12 370-6352 WASHER LOCK 1/2 NOM $1.21 1 usually ships 12-17 days
13 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
14 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 4 ships same day
15 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 1 ships same day
16 372-1883 Retainer pulley $10.11 1 usually ships 12-17 days
17 370-0822 CONNECTORWIRE NUT-RED $1.41 3 usually ships 12-17 days
