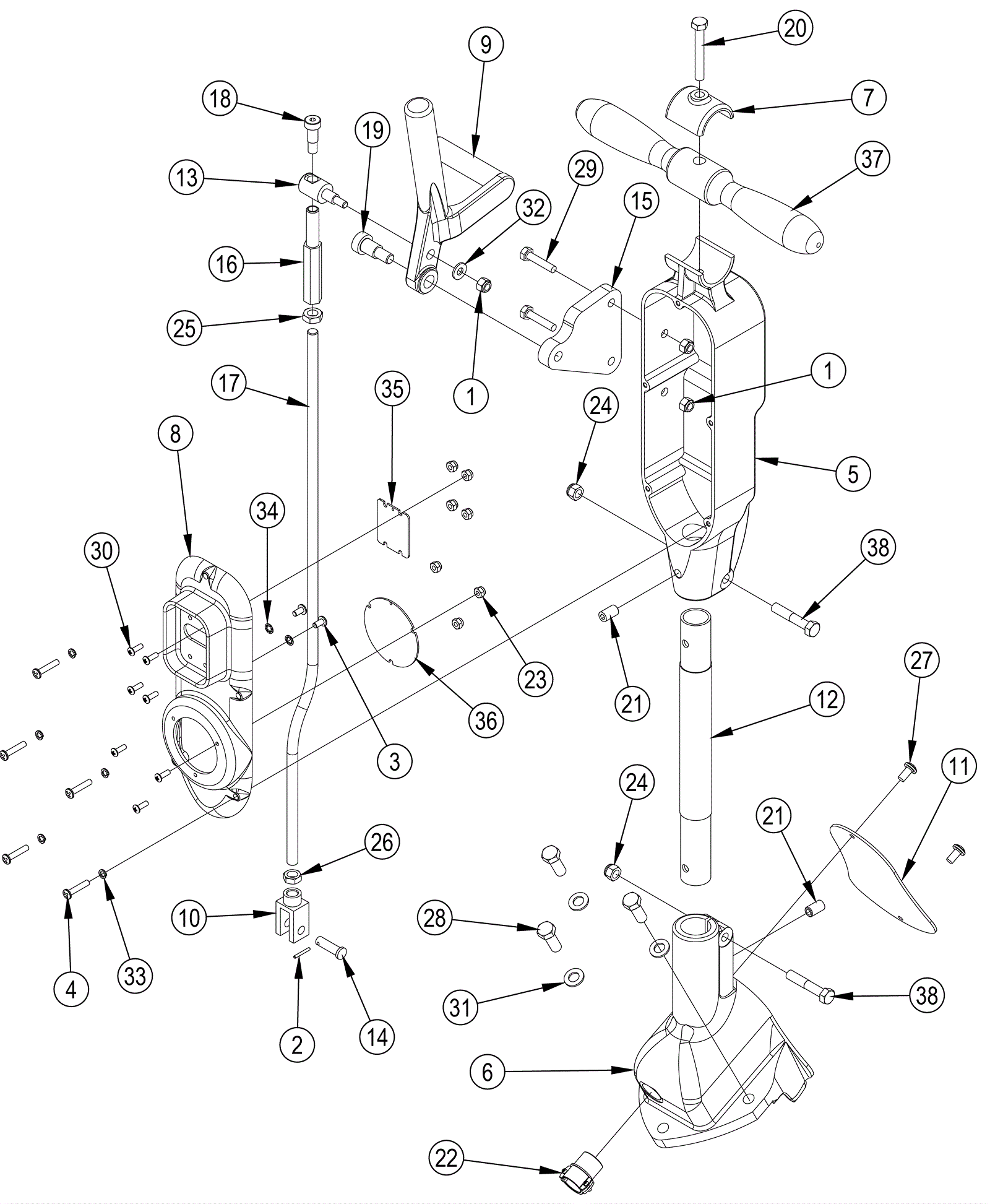

American 12 Handle Assembly( model 07120A)

#PartDescriptionPriceReqNotesAvailability
1 170-7514 Nut 1/4-20 stop $1.87 3 usually ships 1-5 days
2 997-2500 Cotter pin $0.99 1 ships same day
3 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
4 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 5 ships same day
5 372-1796 Switch box $374.14 1 usually ships 12-17 days
6 170-2329 handle bracket (obsolete) Call for price 1 usually ships 17-28 days
7 372-1790 Clamp $41.83 1 usually ships 12-17 days
8 372-1778 Switch cover $219.67 1 usually ships 12-17 days
9 372-1792 Lever control $215.20 1 usually ships 12-17 days
10 372-1921 Control rod clevis (OBSOLETE) Call for price 1 usually ships 17-28 days
11 170-6760 cover-brkt-hdl (obsolete) Call for price 1 usually ships 17-28 days
12 170-4718 handle pipe black (obsolete) Call for price 1 usually ships 17-28 days
13 372-1785 Pivot control rod $20.26 1 usually ships 12-17 days
14 372-1922 Pin (OBSOLETE) $18.41 1 usually ships 17-28 days
15 372-1791 Plate (OBSOLETE) Call for price 1 usually ships 17-28 days
16 372-1787 Control rod adjuster $34.32 1 usually ships 12-17 days
17 170-4719 rod control am-12 (obsolete) Call for price 1 usually ships 17-28 days
18 370-4780 BOLT SHOULDER 3/8 X 5/8 $5.50 1 usually ships 12-17 days
19 372-1786 Bolt 1/2 x 5/8 shoulder $26.40 1 usually ships 12-17 days
20 370-6199 SCREW5/16-18 X 2 1/2 HX HD $2.82 1 usually ships 12-17 days
21 370-6229 SCR 3/8 -16X 5/8 ST ST DOGPT $7.82 2 usually ships 12-17 days
22 170-0826 Conduit connector (OBSOLETE) $5.50 1 usually ships 1-5 days
23 170-2034 Nut 8-32 $1.21 7 usually ships 1-5 days
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
25 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
26 999-0170 Nut 3/8-16 hex plain finish $0.99 1 ships same day
27 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 2 ships same day
28 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 3 ships same day
29 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
30 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 7 ships same day
31 999-0659 Washer 3/8 medium split lock stainless steel $0.39 3 ships same day
32 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
33 170-6125 Washer 1/8 lock $1.21 5 usually ships 1-5 days
34 372-1780 Washer (OBSOLETE) $10.52 2 usually ships 17-28 days
35 375-7528 Cover switch (OBSOLETE) Call for price 1 usually ships 17-28 days
36 375-7529 Cover inlet (OBSOLETE) Call for price 1 usually ships 17-28 days
37 372-1789 Handle $75.43 1 usually ships 12-17 days
38 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
N/S 154-3996 Prop 65 decal $1.94 1 usually ships 12-17 days
