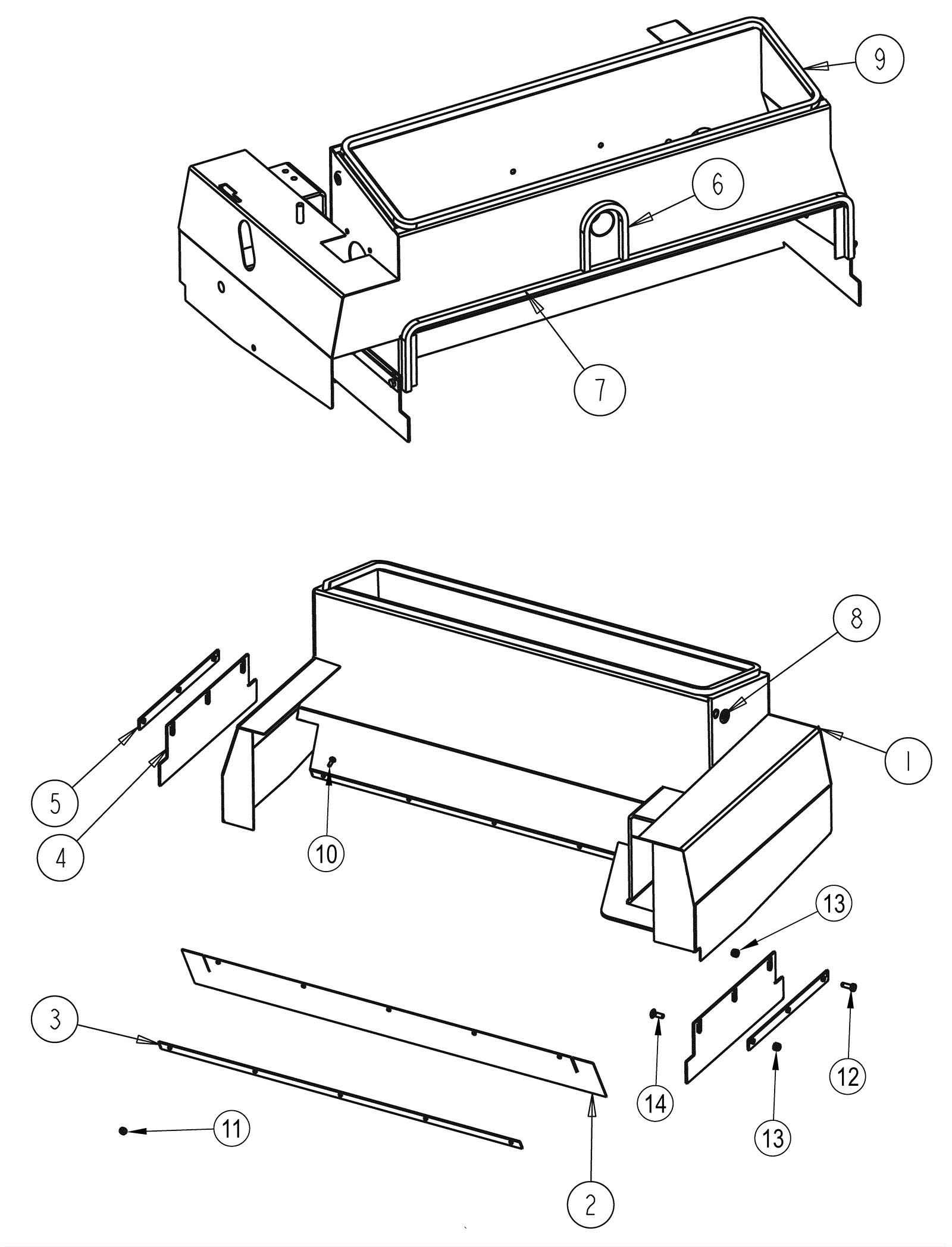

Presweep Assembly-Frame and Flaps-1 (Optional)

#PartDescriptionPriceReqNotesAvailability
1 170-7835 Broom housing (OBSOLETE) $1,788.71 1 usually ships 1-5 days
2 170-7836 Rear flap (OBSOLETE) $38.28 1 usually ships 1-5 days
3 170-7648 Flap rear clamp (OBSOLETE) $53.02 1 (rear) usually ships 1-5 days
4 170-7837 Side flap (OBSOLETE) $30.58 2 usually ships 1-5 days
5 170-7838 Square clamp side (OBSOLETE) $23.21 2 usually ships 1-5 days
6 170-7839 Hopper gasket (OBSOLETE) $10.01 1 usually ships 1-5 days
7 170-7840 Hopper gasket $29.70 1 usually ships 1-5 days
8 170-7841 Grommet $10.52 1 usually ships 1-5 days
9 170-7842 Plastic hopper gasket (OBSOLETE) $30.69 1 usually ships 1-5 days
10 170-6743 Screw 10-24 x 1/2 round head machine $13.17 5 usually ships 1-5 days
11 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 5 ships same day
12 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
13 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
14 272-8684 Carriage bolt $12.31 5 usually ships 1-5 days
