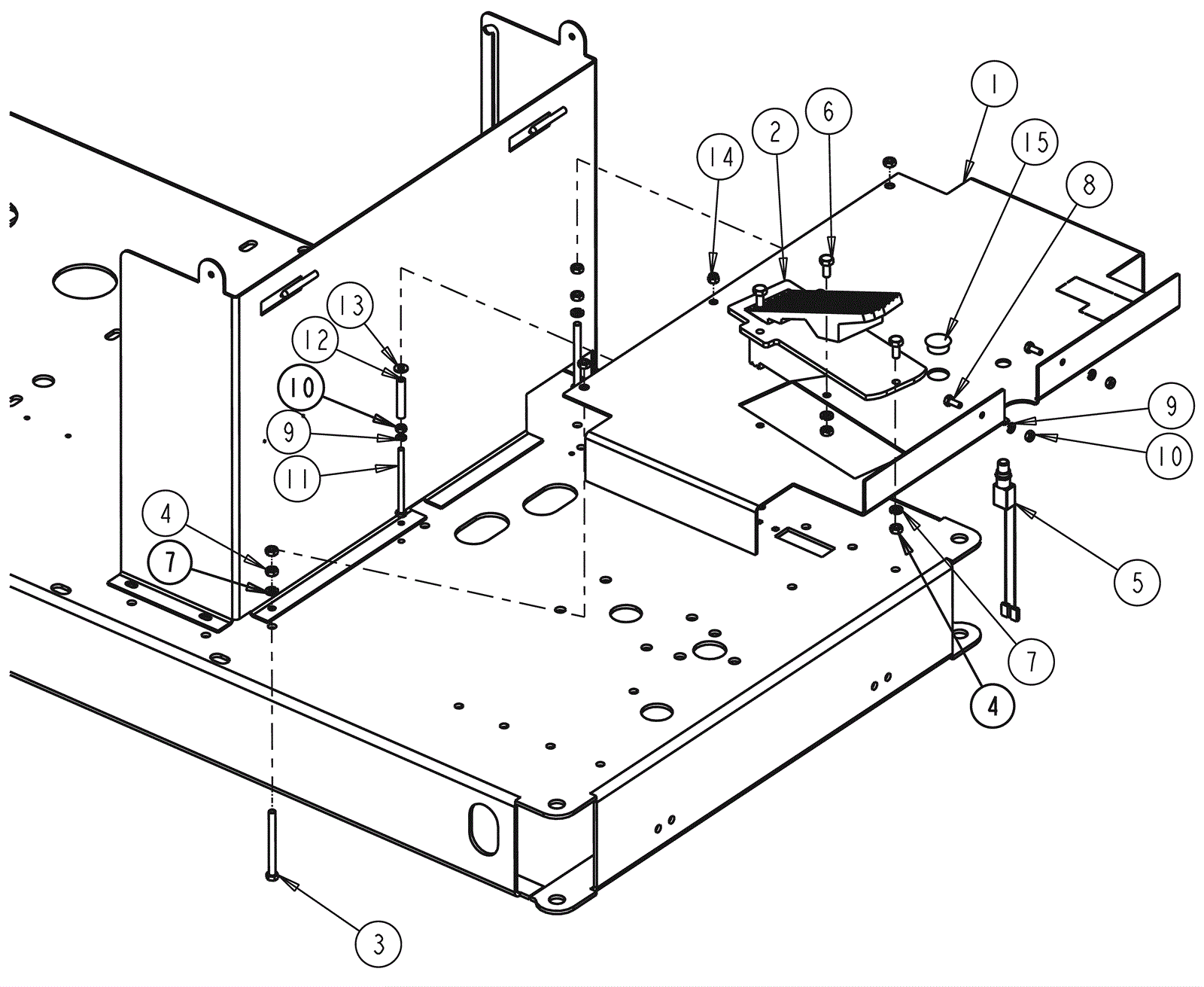

ENCORE MAX Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 370-4099 PANEL-FLOOR $152.24 1 usually ships 17-28 days
2 472-7493 SERVICE KIT-FOOT PEDAL (OBSOLETE) $623.11 1 usually ships 17-28 days
3 999-1834 Bolt 5/16-18 x 3 1/2 hex cap zinc $1.38 3 usually ships 1-5 days
4 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
5 170-7744 Push button lid switch $174.90 1 usually ships 1-5 days
6 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 3 ships same day
7 170-6686 Washer 5/16 lock $10.85 6 usually ships 17-28 days
8 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
9 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
10 170-6639 Nut 1/4-20 $13.17 2 usually ships 1-5 days
11 170-6745 Screw 1/4 - 20 x 3 1/2 $12.31 1 usually ships 1-5 days
12 370-6388 SPACER $10.23 1 usually ships 17-28 days
13 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
15 370-1380 1 HOLE PLUG $10.01 1 usually ships 17-28 days
