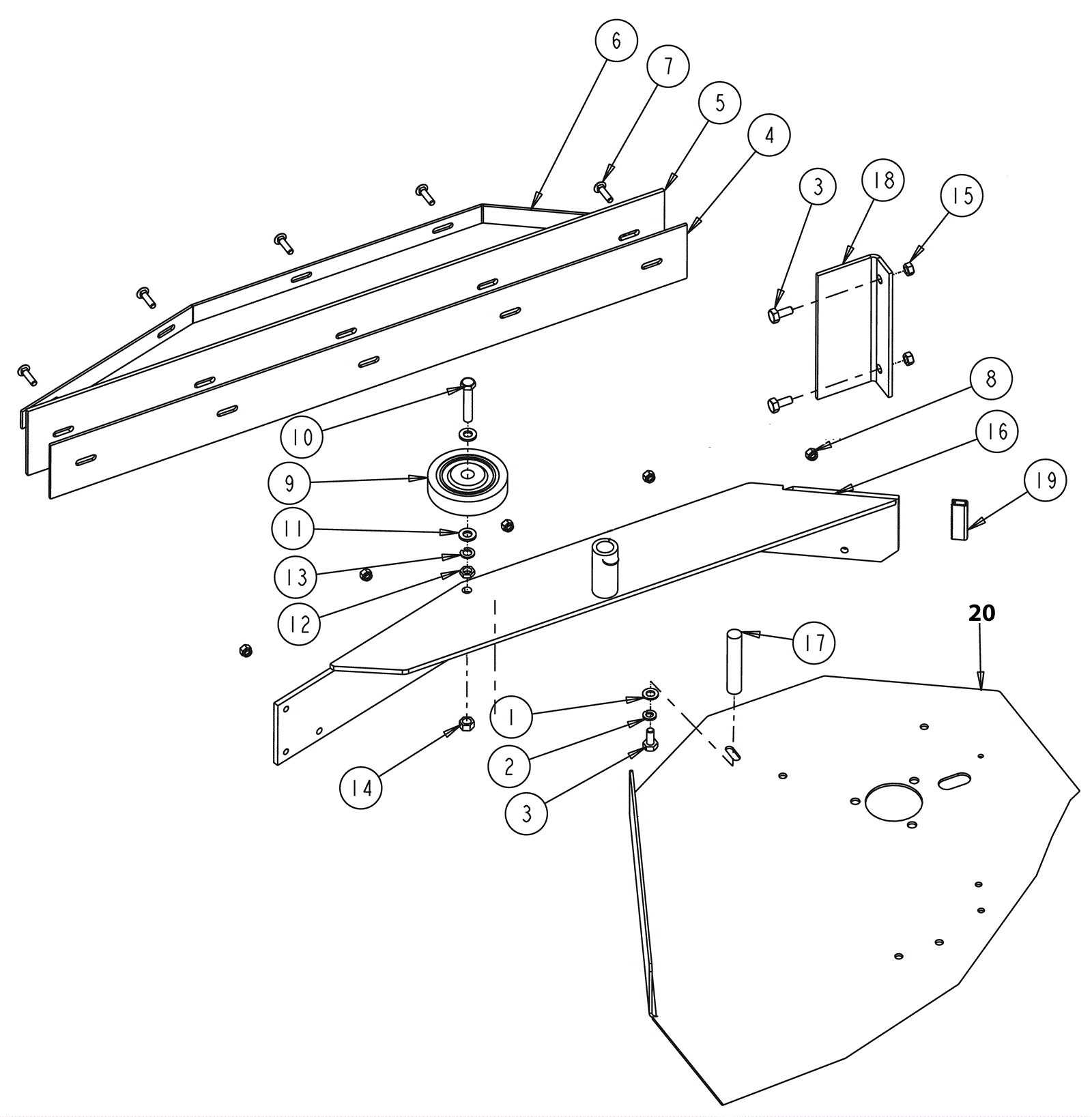

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
2 |
|
ships same day |
2 |
170-6686
|
Washer 5/16 lock |
$10.85
|
1 |
|
usually ships 17-28 days |
3 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
3 |
|
ships same day |
4 |
170-8337
|
Squeegee blade inner righthand side rubber |
$76.52
|
1 |
(inner) |
usually ships 1-5 days |
5 |
170-8339
|
Squeegee blade outer righthand side rubber |
$75.10
|
1 |
(outer) |
usually ships 1-5 days |
6 |
170-8341
|
Squeegee clamp righthand side (OBSOLETE) |
$47.08
|
1 |
(34in and 38in) |
usually ships 1-5 days |
7 |
370-0975
|
BOLT CARR .25-20 X 1.00 G5 ZN |
$13.17
|
5 |
|
usually ships 17-28 days |
8 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
5 |
|
ships same day |
9 |
170-6959
|
Wheel |
$50.03
|
1 |
|
usually ships 1-5 days |
10 |
999-0107
|
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
$1.19
|
1 |
|
ships same day |
11 |
170-6782
|
Washer 3/4 x 25/64 x 3/32 flat |
$12.31
|
2 |
|
usually ships 17-28 days |
12 |
999-0247
|
Nut 3/8-16 hex jam plain finish |
$0.99
|
1 |
|
ships same day |
13 |
170-6752
|
Washer 3/8 lock split plated |
$12.31
|
1 |
|
usually ships 1-5 days |
14 |
999-0635
|
Nut 3/8-16 hex stainless steel |
$0.99
|
1 |
|
ships same day |
15 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
2 |
(mount inside holes on frame) |
ships same day |
16 |
370-4649
|
TOOL-RH SIDE SQUEEGEE 34 & 38 |
$1,155.00
|
1 |
(lube cylindrical area with Lawson 96763 spray) |
usually ships 17-28 days |
17 |
370-4152
|
PIN-SIDE SQUEEGEE LOCK |
$15.70
|
1 |
|
usually ships 17-28 days |
18 |
370-2831
|
BRKT-SIDE SQUEEGEE (OBSOLETE) |
$68.64
|
1 |
|
usually ships 17-28 days |
19 |
370-3353
|
EDGING-SIDE BROOM BELT 91WS (OBSOLETE) |
$8.25
|
1 |
|
usually ships 17-28 days |
20 |
170-8318
|
Scrub deck 34 inch |
$220.00
|
1 |
(for assembly reference) |
usually ships 1-5 days |
