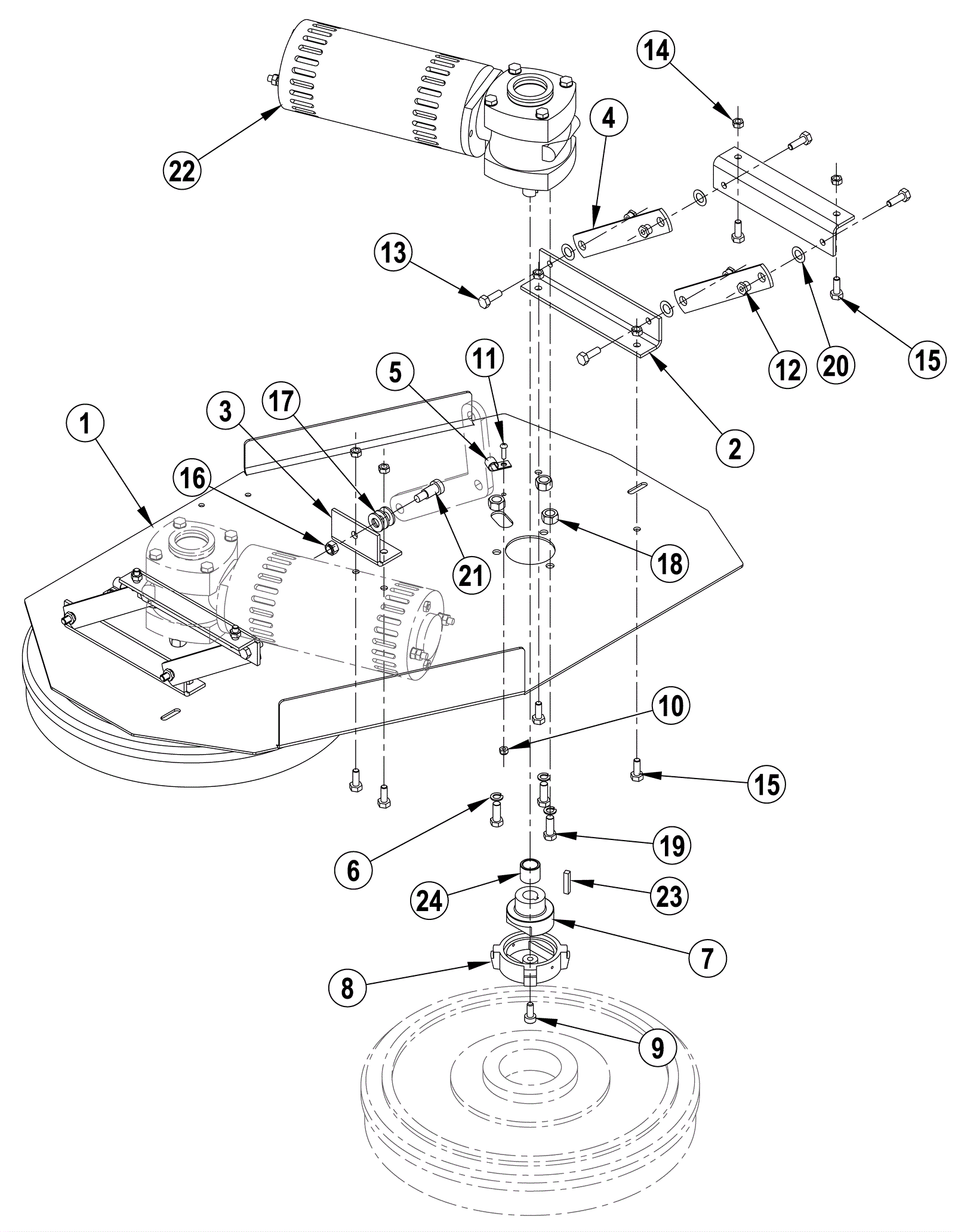

ENCORE MAX Scrub Deck Assembly- 34in

#PartDescriptionPriceReqNotesAvailability
1 370-3510 SCRUB DECK-34 (OBSOLETE) $266.31 1 usually ships 17-28 days
2 170-8294 Brush arm bracket (OBSOLETE) $26.95 4 usually ships 1-5 days
3 170-8295 Bracket brush load $27.78 1 usually ships 1-5 days
4 170-8296 Brush frame link (OBSOLETE) $11.77 4 usually ships 1-5 days
5 170-8297 Clamp $10.52 2 usually ships 17-28 days
6 170-6752 Washer 3/8 lock split plated $12.31 6 usually ships 1-5 days
7 170-6936 Hub $193.62 2 usually ships 1-5 days
8 170-6937 Gimball $77.24 2 usually ships 1-5 days
9 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 2 ships same day
10 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 2 ships same day
11 999-0078 Screw 10-24 x 3/4 round head slotted zinc $0.99 2 ships same day
12 170-7643 Special nut $15.48 8 usually ships 1-5 days
13 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 8 ships same day
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 10 ships same day
15 181-0983 Screw 5/16-18 x 7/8 hex head $12.31 10 usually ships 1-5 days
16 170-8304 Nut 3/8-16 insert fiber $10.52 1 usually ships 1-5 days
17 999-0114 Washer 1/2 SAE flat $0.99 3 ships same day
18 170-6871 Nut 1/2-13 $12.31 6 usually ships 1-5 days
19 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 6 ships same day
20 170-7562 Washer 7/8 x 1/2 x 5/32 spring $12.31 8 usually ships 1-5 days
21 170-8305 Shoulder screw 1/2 - 3/4 $10.52 1 usually ships 1-5 days
22a 370-0371 MOTOR BEVELED GEAR $2,035.00 2 (after SN 180310) usually ships 17-28 days
22b 170-8301 Brush motor $1,485.00 2 (before SN 180311) usually ships 1-5 days
22c 272-3688 Brush and spring kit $314.39 2 (brush motor replacement kit) (before SN 180311) usually ships 17-28 days
23 170-8302 1/4 sq x 1 1/4 key $10.52 2 usually ships 1-5 days
24a 370-4418 SPACER $8.25 2 (after SN 180310) usually ships 17-28 days
24b 170-8299 Spacer $9.13 4 (before SN 180311) usually ships 1-5 days
N/S 170-8300 Reducer assembly $1,420.10 2 (before SN 180311) (educer assembly) usually ships 1-5 days
N/S 170-6686 Washer 5/16 lock $10.85 4 (before SN 180311) (lock washer) usually ships 17-28 days
N/S 170-6751 Screw hex cap $10.52 4 (before SN 180311) (screw) usually ships 1-5 days
