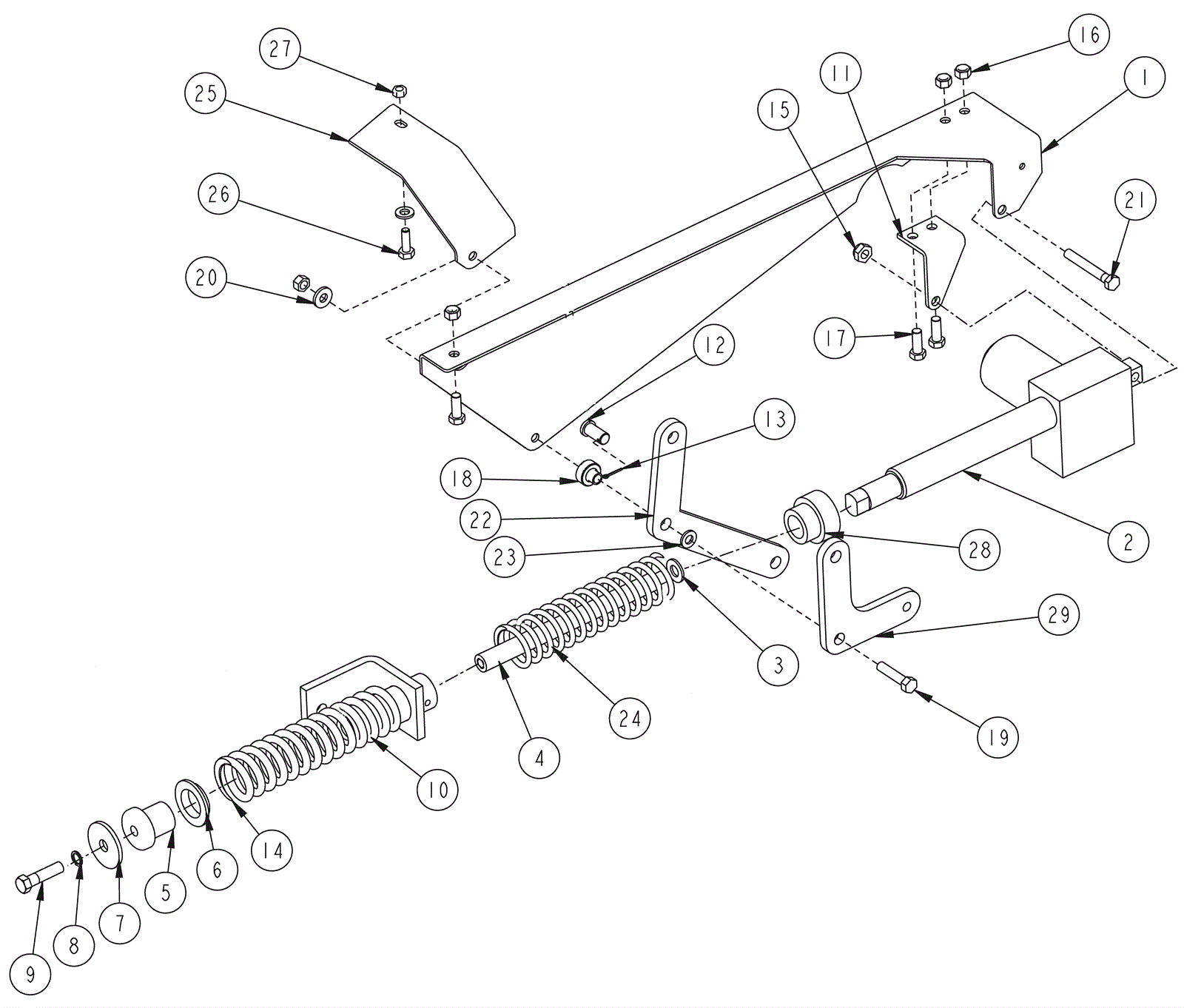

ENCORE MAX Scrub Deck Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 370-4551 ACTUATOR SUPPORT $127.27 1 usually ships 17-28 days
2 170-9402 Actuator (OBSOLETE) Call for price 1 (included in KIT1) usually ships 17-28 days
3 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
4 370-4314 ROD-BRUSH SPRING $66.39 1 (apply neverseize) usually ships 17-28 days
5 370-2992 BUSHING $27.50 1 usually ships 17-28 days
6 370-3382 WASHER-SPRING GUIDE $19.65 1 usually ships 17-28 days
7 370-1330 .5 X 2 X .1875 WASHER $10.52 1 usually ships 17-28 days
8 370-0984 LK WSH MED SEC SPL ZN 7/16 BLT $10.52 1 usually ships 17-28 days
9 370-1007 SCREW-HHC .438-14 X 1.75 $10.52 1 (apply loctite 242) usually ships 17-28 days
10 370-2649 ARM-PIVOT SR5730 $250.25 1 (apply neverseize to inner diameter) usually ships 17-28 days
11 370-4190 PIVOT $22.33 1 usually ships 17-28 days
12 170-8313 Brush lift pivot pin $17.06 1 (apply neverseize) usually ships 1-5 days
13 272-4978 Cotter pin $9.13 1 (apply neverseize) usually ships 1-5 days
14 370-4436 SPRING-157LB/IN DECK LIFT $128.59 1 usually ships 17-28 days
15 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
16 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
17 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 3 ships same day
18 370-2993 BUSHING SCRB DCK ACT SR5730 (OBSOLETE) $76.12 1 (apply neverseize) usually ships 17-28 days
19 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
20 272-4896 Flat washer $12.31 1 usually ships 1-5 days
21 370-1156 SCREW-HHC .375-16X2.75 GRADE8 $10.52 1 usually ships 17-28 days
22 370-2650 ARM-SCRUB DECK $34.10 1 (deck scrub only) usually ships 17-28 days
23 170-6782 Washer 3/4 x 25/64 x 3/32 flat $12.31 2 usually ships 17-28 days
24 370-4437 SPRING-51LB/IN DECK LIFT $126.50 1 (51 pounds per inch) (clean, prime, and apply loctite 242) usually ships 17-28 days
25 370-2909 BRKT-DECK LIFT (OBSOLETE) $48.51 1 usually ships 17-28 days
26 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 1 ships same day
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
28 370-4417 SPACER-SPRING $95.70 1 (included in KIT1) usually ships 17-28 days
29 370-2653 ARM ACTUATOR (OBSOLETE) $36.30 1 (cylindrical scrub only) usually ships 17-28 days
KIT1 270-0671 Actuator kit (OBSOLETE) $813.45 1 (actuator service kit) (includes 2, 28) usually ships 1-5 days
