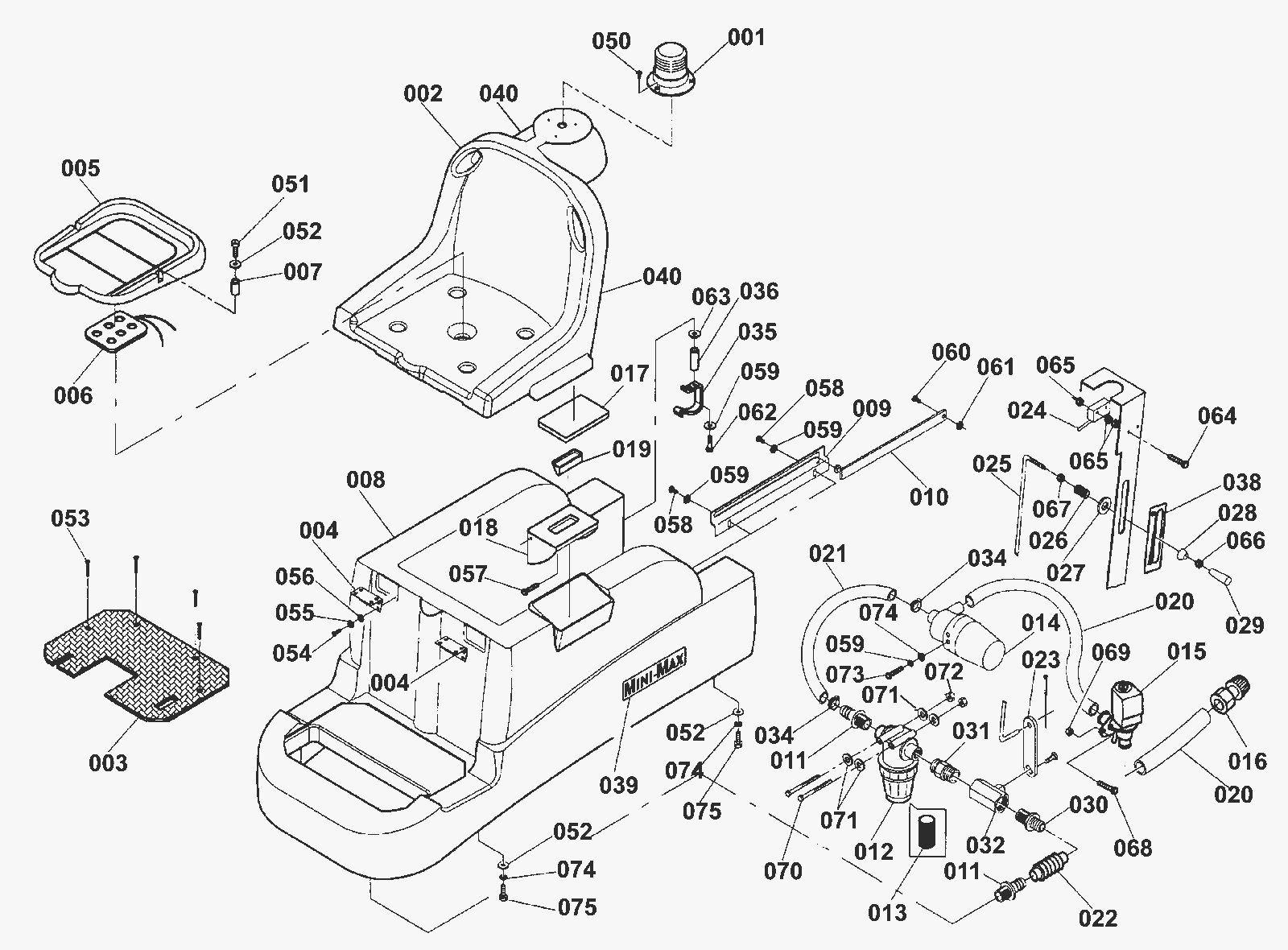

Seat and Solution Tank Assembly

#PartDescription ReqNotesAvailability
001 170-4250 Flashing light (OBSOLETE) 1
002 170-4251 Support seat (OBSOLETE) 1
003 170-4252 Bottom plate (OBSOLETE) 1
004 170-4242 Hinge (OBSOLETE) 2
005 170-4253 Seat (OBSOLETE) 1
006 170-4254 Microswitch (OBSOLETE) 1
007 170-4255 Spacer (OBSOLETE) 2
008 170-4256 Solution tank (OBSOLETE) 1
009 170-4257 Support (OBSOLETE) 1
010 170-4258 Prop (OBSOLETE) 1
011 170-4259 Connector (OBSOLETE) 2
012 170-4260 Filter (OBSOLETE) 1
013 170-4261 Cartridge filter (OBSOLETE)
014 170-4262 Pump (OBSOLETE) 1
015 170-6220 Solenoid valve (OBSOLETE) 1
016 170-4263 Quick coupling (OBSOLETE) 1
017 170-4264 Gasket (OBSOLETE) 1
018 170-4265 Door (OBSOLETE) 1
019 170-4266 Lever (OBSOLETE) 1
020 170-4267 Hose (OBSOLETE) 2
021 170-4268 Hose (OBSOLETE) 1
022 170-4269 Bellows (OBSOLETE) 1
023 170-4270 Lever valve (OBSOLETE) 1
024 170-4271 Microswitch 1
025 170-4272 Rod (OBSOLETE) 1
026 170-4273 Spring (OBSOLETE) 1
027 170-4274 Washer 6 x 30 x 3 diameter (OBSOLETE) 1
028 170-4204 Washer 1
029 170-4275 Knob (OBSOLETE) 1
030 170-4276 Connector (OBSOLETE) 1
031 170-4277 Nipple 1
032 170-3677 Valve 1
034 170-4278 Clamp (OBSOLETE) 3
035 170-4226 Coupler (OBSOLETE) 1
036 170-4190 Bushing (OBSOLETE) 1
038 170-4279 Decal (OBSOLETE) 1
039 170-4280 Decal (OBSOLETE) 2
041 170-3005 Pop rivet 3
050 N/A Not available Screw 4 13/64 x 13 diameter
051 N/A Not available Screw M6 x 30
052 N/A Not available Washer 6 x 18 diameter
053 N/A Not available Screw M6 x 18
054 N/A Not available Screw M5 x 12
055 N/A Not available Washer lock 5 diameter
056 N/A Not available washer 5 x 10 diameter
057 N/A Not available Screw M4 x 20
058 N/A Not available Screw M6 x 20
059 N/A Not available Washer 6 x 12 diameter
060 N/A Not available Screw M8 x 25
061 N/A Not available Washer 8 x 24 diameter
062 N/A Not available Screw M6 x 50
063 N/A Not available Washer 6 x 24 diameter
064 N/A Not available Screw M3 x 40
065 N/A Not available Nut M3
066 N/A Not available Nut m5
067 N/A Not available Nut M5
068 N/A Not available Screw M4 x 12
069 N/A Not available Nut lock M4
070 N/A Not available Screw M8 x 80
071 N/A Not available Washer 8 x 17 diameter
072 N/A Not available Nut lock M8
073 N/A Not available Screw M6 x 16
074 N/A Not available Washer lock 6 diameter
075 N/A Not available Screw M6 x 20
N/S 170-0230 Falling parts warning decal 1
N/S 170-0229 Battery warning decal 1
N/S 170-5510 Serial tag 1
N/S 170-3930 Warning plate (OBSOLETE) 1
N/S 170-4281 Battery connection label (OBSOLETE) 1
