VISION 17E

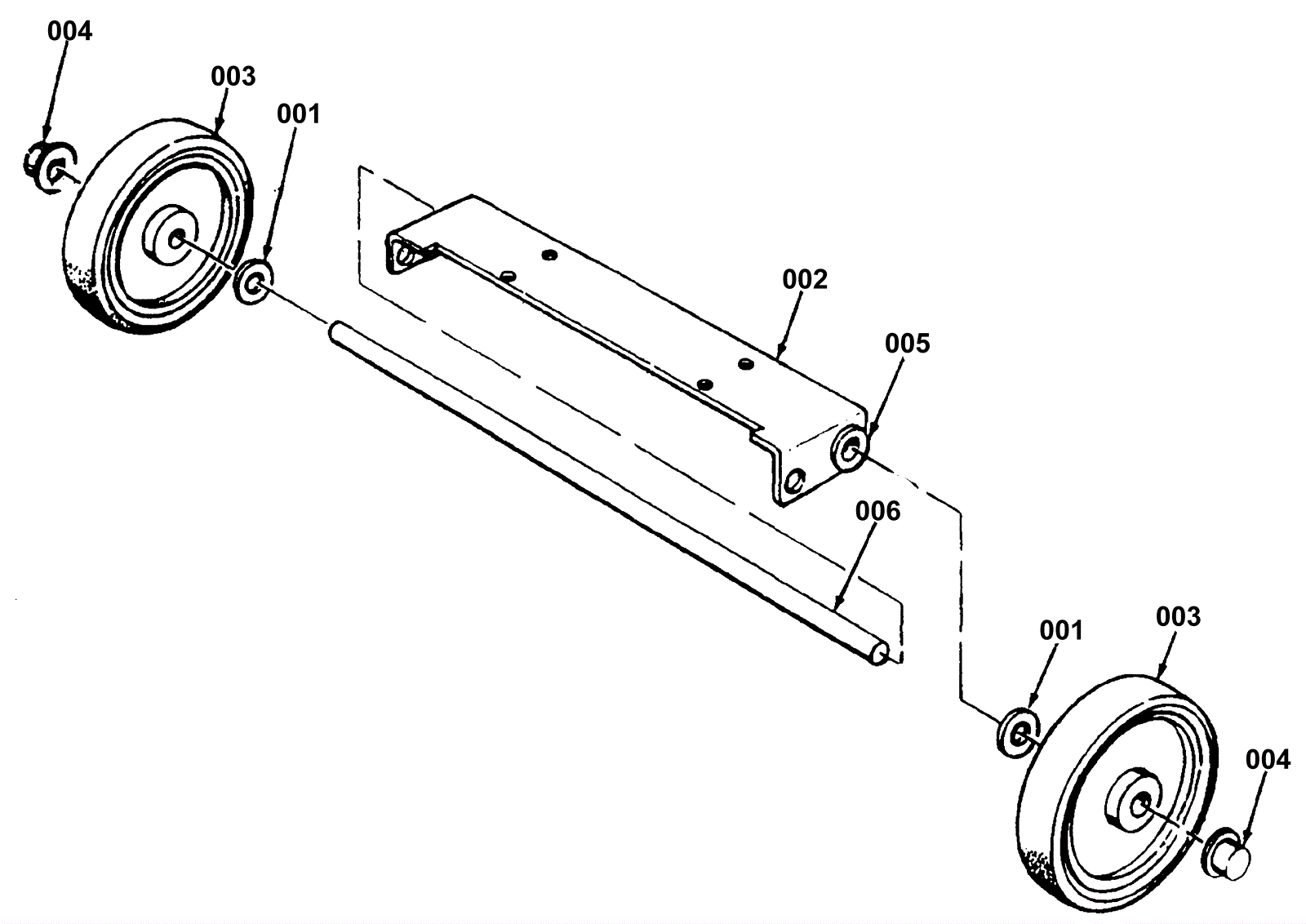

Non-Traverse Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
001
170-6124
Washer flat nylon
$1.21
2
usually ships 4-15 days
002
170-4450
Axle bracket (OBSOLETE)
$108.37
1
usually ships 1-5 days
003
170-4451
Wheel (OBSOLETE)
$129.27
2
usually ships 16-41 days
004
170-6076
Pal nut
$10.56
2
usually ships 16-41 days
005
170-2715
Bushing-pivot (OBSOLETE)
$10.69
2
usually ships 1-5 days
006
170-4452
Shaft (OBSOLETE)
$32.08
1
usually ships 1-5 days
