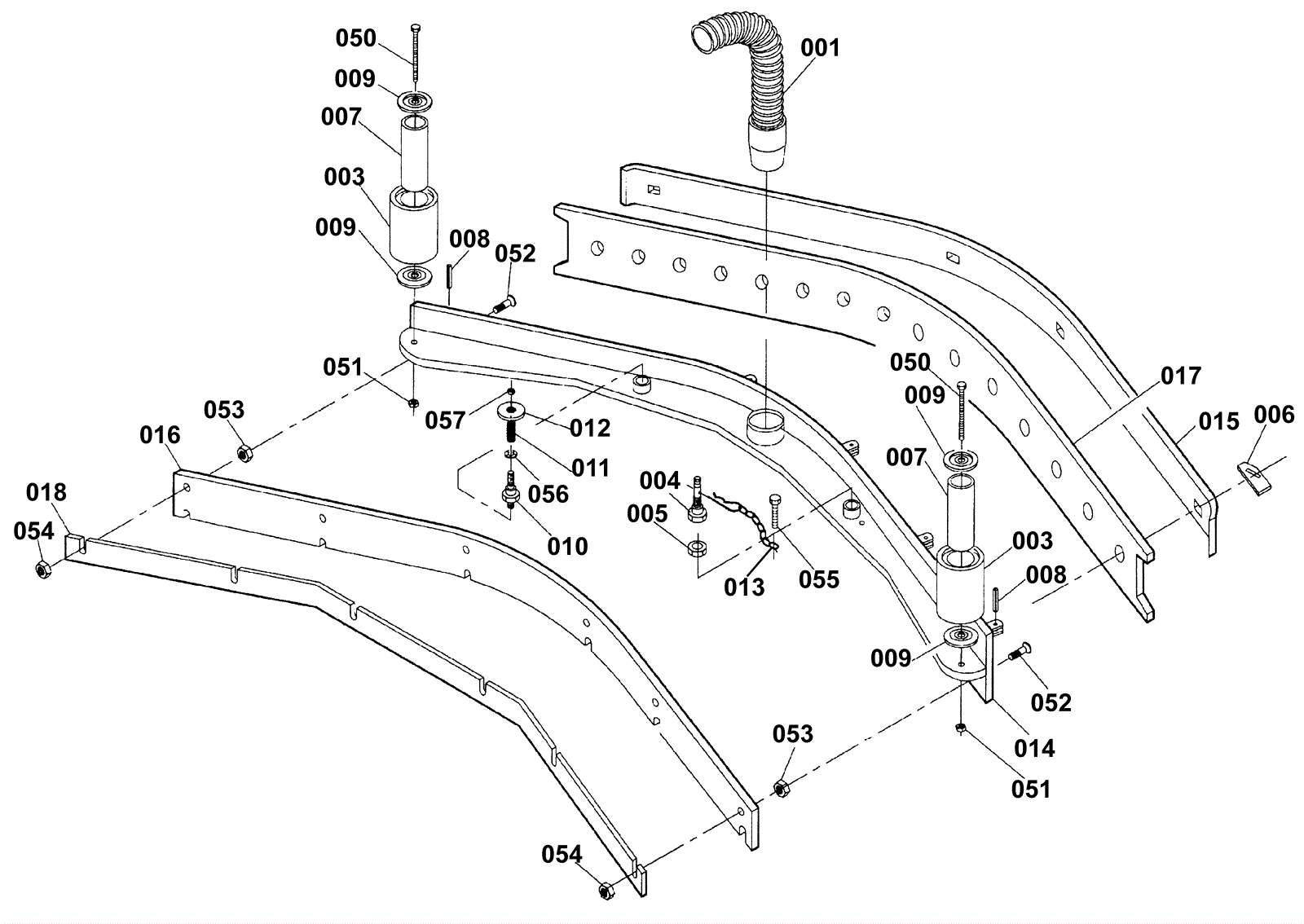

MINI-MAX 30 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-6221 Hose (OBSOLETE) $106.41 1 usually ships 16-41 days
003 170-4151 Wheel (OBSOLETE) $40.39 2 usually ships 1-5 days
004 170-4282 Stud bolt (OBSOLETE) $24.75 1 usually ships 1-5 days
005 170-4283 Special nut (OBSOLETE) $10.38 1 usually ships 1-5 days
006 170-4284 Locking tab (OBSOLETE) $28.51 4 usually ships 1-5 days
007 170-4153 Pipe (OBSOLETE) $9.03 2 usually ships 1-5 days
008 170-4285 Spring pin (OBSOLETE) Call for price 4 usually ships 1-5 days
009 170-4152 Special washer (OBSOLETE) $6.78 4 usually ships 1-5 days
010 170-4286 Stud bolt $33.00 1 usually ships 1-5 days
011 170-4287 Spring (OBSOLETE) $8.47 1 usually ships 1-5 days
012 170-4288 Nut adjuster (OBSOLETE) $14.85 1 usually ships 1-5 days
013 170-8906 Chain with pin $15.40 1 usually ships 1-5 days
014a 170-4289 Squeegee body 33 inch (OBSOLETE) $1,015.33 1 usually ships 1-5 days
014b N/A Not available Call for price 1 Squeegee body usually ships 3-26 days
015a 170-4291 30 Inch rear clamping plate (OBSOLETE) $76.03 1 usually ships 1-5 days
015b 170-4292 40 Inch rear clamping plate (OBSOLETE) $87.91 1 usually ships 1-5 days
016a 170-8907 Squeegee blade front (OBSOLETE) $45.40 1 usually ships 1-5 days
016b N/A Not available Call for price 1 (Front squeegee blade) usually ships 3-26 days
017a 170-8908 Squeegee blade rear (OBSOLETE) $187.02 1 usually ships 16-41 days
017b 170-4041 Squeegee blade rear (OBSOLETE) $246.26 1 usually ships 16-41 days
018a 170-4293 33 Inch front clamping plate (OBSOLETE) $109.30 1 usually ships 1-5 days
018b 170-4294 40 Inch front clamping plate (OBSOLETE) $47.52 1 usually ships 1-5 days
050 N/A Not available Call for price Screw M10 x 110 usually ships 3-26 days
051 N/A Not available Call for price Nut lock M10 usually ships 3-26 days
052 N/A Not available Call for price Screw M6 x 25 usually ships 3-26 days
053 N/A Not available Call for price Nut M6 usually ships 3-26 days
054 N/A Not available Call for price Nut lock M6 usually ships 3-26 days
055 N/A Not available Call for price Screw M5 x 10 usually ships 3-26 days
056 N/A Not available Call for price Washer 8 x 24 diameter usually ships 3-26 days
057 N/A Not available Call for price Nut lock M8 usually ships 3-26 days
N/S 170-4038 Squeegee assembly 33 inch (OBSOLETE) $1,141.15 26 usually ships 1-5 days
N/S 170-4039 Squeegee assembly 40 inch (OBSOLETE) $1,230.24 28-30 usually ships 1-5 days
