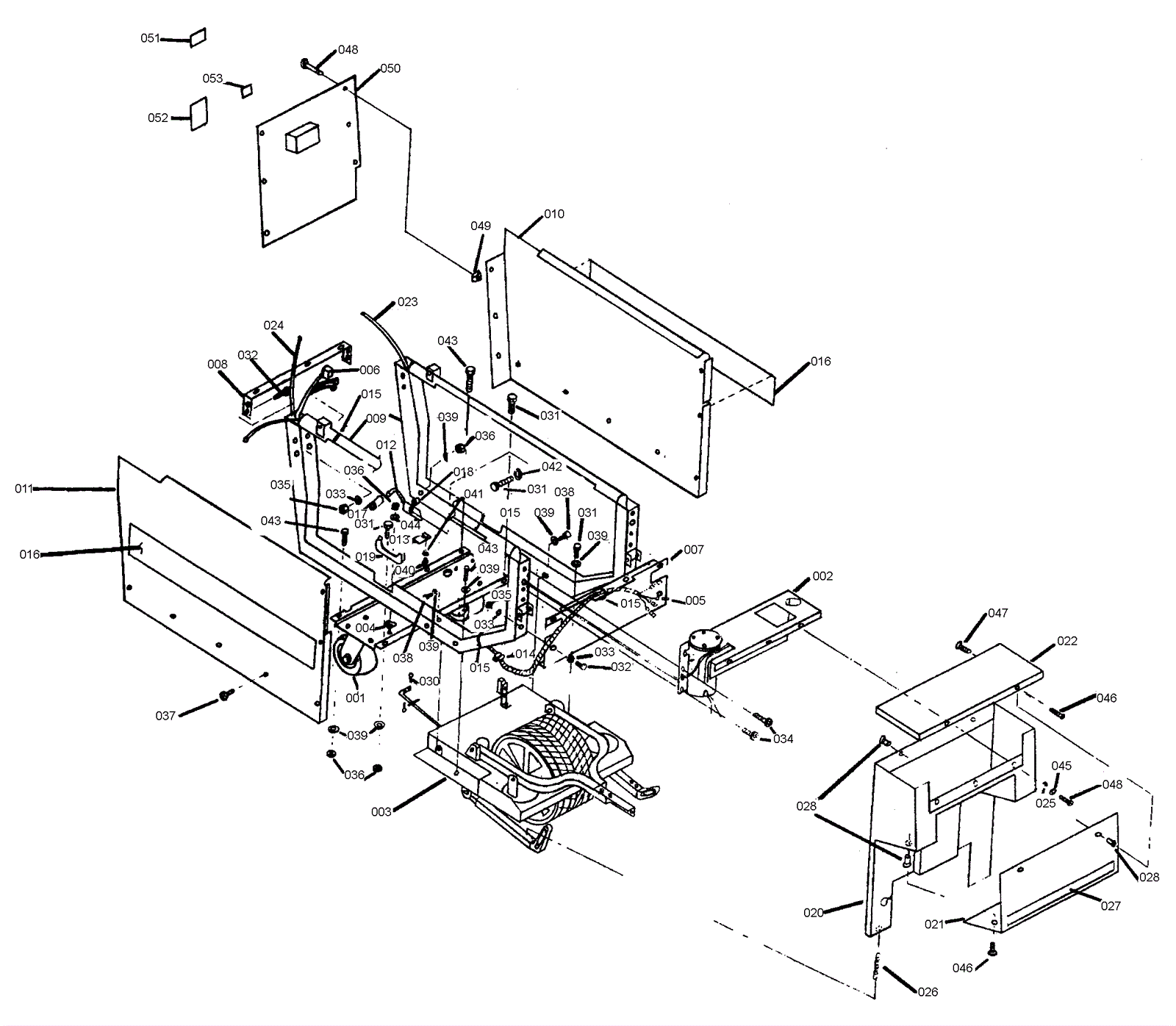

ULTRASPEED 3220 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Rear caster assembly. See. Rear caster assembly usually ships 3-26 days
002 N/A Not available Call for price 1 Air compressor assembly. See Air compressor assembly usually ships 3-26 days
003 N/A Not available Call for price 1 Support assembly. See Support assembly usually ships 3-26 days
004 170-0457 Strap (OBSOLETE) $5.50 1 usually ships 1-5 days
005 170-0009 Connector housing $16.95 4 ships same day
006 170-4901 Machine harness (OBSOLETE) Call for price 1 usually ships 1-5 days
007 N/A Not available Call for price 1 Spring bracket usually ships 3-26 days
008 170-0626 Switch assembly mounting bracket (FSO) (OBSOLETE) $39.92 1 usually ships 1-5 days
009 170-0420 Main frame assembly (OBSOLETE) $264.57 2 usually ships 1-5 days
010 170-4902 Left hand panel (OBSOLETE) $390.61 1 usually ships 1-5 days
011 170-4903 Right hand panel (OBSOLETE) $388.72 1 usually ships 1-5 days
012 170-0552 Brake pedal assembly (OBSOLETE) $59.05 1 usually ships 1-5 days
013 170-0564 Brake pedal stop (OBSOLETE) $4.85 1 usually ships 1-5 days
014 N/A Not available Call for price 1 usually ships 3-26 days
015 170-0080 Wire tie $12.31 3 usually ships 16-41 days
016 170-4904 Ultra speed label (OBSOLETE) Call for price 2 usually ships 1-5 days
017 170-0434 Brake pedal cover (OBSOLETE) $5.94 1 usually ships 1-5 days
018 170-0553 Brake pedal spacer (FSO) (OBSOLETE) $6.29 1 usually ships 1-5 days
019 170-0625 Frame trim (OBSOLETE) $4.14 1 usually ships 1-5 days
020 170-4905 Front cover (OBSOLETE) Call for price 1 usually ships 1-5 days
021 170-4906 Cover (OBSOLETE) Call for price 1 usually ships 1-5 days
022 170-4907 Front top cover (OBSOLETE) $92.54 1 usually ships 1-5 days
023 170-4908 Hose 23 (OBSOLETE) Call for price 1 usually ships 1-5 days
024 170-0709 Exhaust hose (OBSOLETE) $11.04 1 usually ships 1-5 days
026 N/A Not available Call for price 1 Idler tension spring usually ships 3-26 days
027 170-4909 Front label (OBSOLETE) Call for price 1 usually ships 1-5 days
028 170-4910 Nut well $3.34 6 usually ships 1-5 days
030 997-2504 Cotter pin 1/16 x 1/2 $0.99 2 usually ships 1-5 days
031 170-3357 Screw 5/16-18x1 1/4 hex head $7.49 4 usually ships 4-15 days
032 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 8 ships same day
033 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
034 170-4911 Screw 1/4-20 x 3/4 pan type F (OBSOLETE) $5.50 4 usually ships 1-5 days
035 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
036 999-0069 Nut 5/16-18 hex $0.99 7 ships same day
037 170-4912 Screw (OBSOLETE) $5.50 10 usually ships 1-5 days
038 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 2 ships same day
039 999-0028 Washer 5/16 split lock plain finish $0.99 9 ships same day
040 170-3353 Screw 3/8-16x1/2 hex head (OBSOLETE) $5.94 2 usually ships 1-5 days
041 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
042 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 1 ships same day
043 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 3 ships same day
044 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
045 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
046 170-5784 Screw 1/4-20 x 1-1/4 pan head $10.52 4 usually ships 1-5 days
047 170-3428 Clutch plate screws $4.52 2 usually ships 1-5 days
048 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 9 ships same day
049 170-0462 Nut 1/4-20 speed (OBSOLETE) $5.50 6 usually ships 1-5 days
050 170-4913 Rear cover (OBSOLETE) Call for price 1 usually ships 1-5 days
051 170-4914 Charge plug label (OBSOLETE) Call for price 1 usually ships 1-5 days
052 170-0570 Lubrication label (FSO) (OBSOLETE) $5.50 1 usually ships 1-5 days
053 170-0555 Parking brake label (FSO) (OBSOLETE) $3.29 1 usually ships 1-5 days
