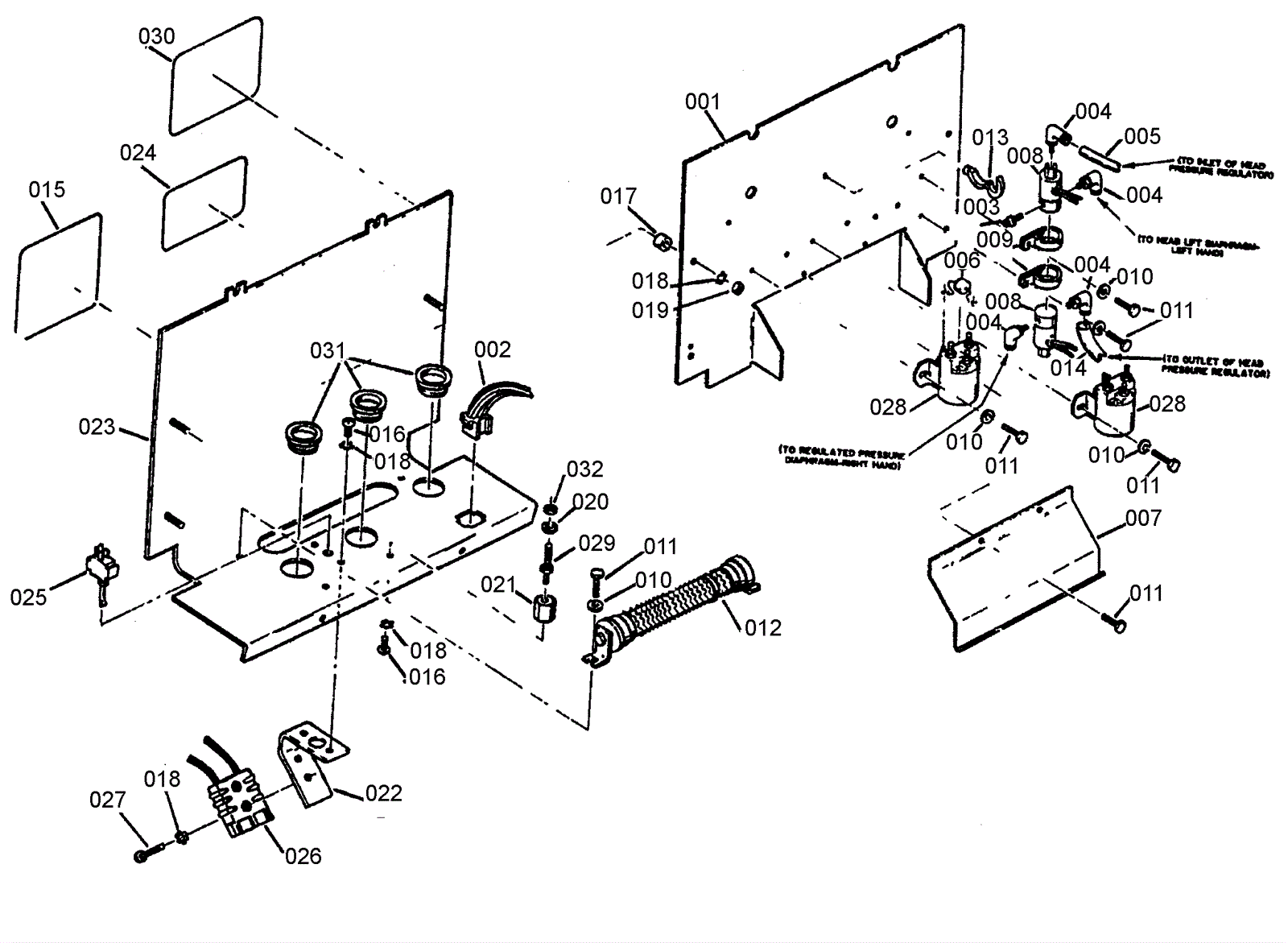

ULTRASPEED 3220 Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-4875 Panel (OBSOLETE) Call for price 1 usually ships 1-5 days
002 170-4876 Power harness (OBSOLETE) Call for price 1 usually ships 1-5 days
003 170-4877 Nozzle (OBSOLETE) Call for price 1 usually ships 1-5 days
004 170-4842 Elbow $26.92 4 usually ships 1-5 days
005 170-4878 Hose 8 (OBSOLETE) Call for price 1 usually ships 1-5 days
006 170-0062 Diode $16.95 1 usually ships 16-41 days
007 170-4879 Shield (OBSOLETE) Call for price 1 usually ships 1-5 days
008 170-3323 Valve assy with fittings and lever (OBSOLETE) $231.07 2 usually ships 1-5 days
009 170-4880 Clamp (OBSOLETE) Call for price 2 usually ships 1-5 days
010 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
011 N/A Not available Call for price 10 (Screw) usually ships 3-26 days
012 170-4881 Resistor (OBSOLETE) $159.43 1 usually ships 1-5 days
013 170-4882 Clip (OBSOLETE) Call for price 1 usually ships 1-5 days
014 170-4883 Hose 2 (OBSOLETE) Call for price 1 usually ships 1-5 days
015 170-0545 Warning label (FSO) (OBSOLETE) $5.50 1 usually ships 1-5 days
016 999-0056 Screw 10-32 x 3/8 round head slotted zinc plated $0.99 4 ships same day
017 170-2269 Spacer (OBSOLETE) $3.99 4 usually ships 1-5 days
019 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
020 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
021 999-0063 Screw 10-24 x 1/4 round head slotted brass $0.99 2 ships same day
022 170-4884 Bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
023 170-4885 Panel assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
024 170-0542 Battery care label (OBSOLETE) $6.78 1 usually ships 1-5 days
025 170-0567 On/off switch (OBSOLETE) $83.16 1 usually ships 1-5 days
026 170-4886 Cable assembly (OBSOLETE) $100.39 1 usually ships 1-5 days
027 170-4887 Screw $7.40 2 usually ships 4-15 days
028 170-2805 Brush set consists of 2 halves (OBSOLETE) $250.36 2 usually ships 16-41 days
029 170-4888 Stud (OBSOLETE) $6.41 2 usually ships 1-5 days
030 170-4889 Battery installation label (OBSOLETE) Call for price 1 usually ships 1-5 days
031 N/A Not available Call for price 3 Bushing usually ships 3-26 days
032 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
