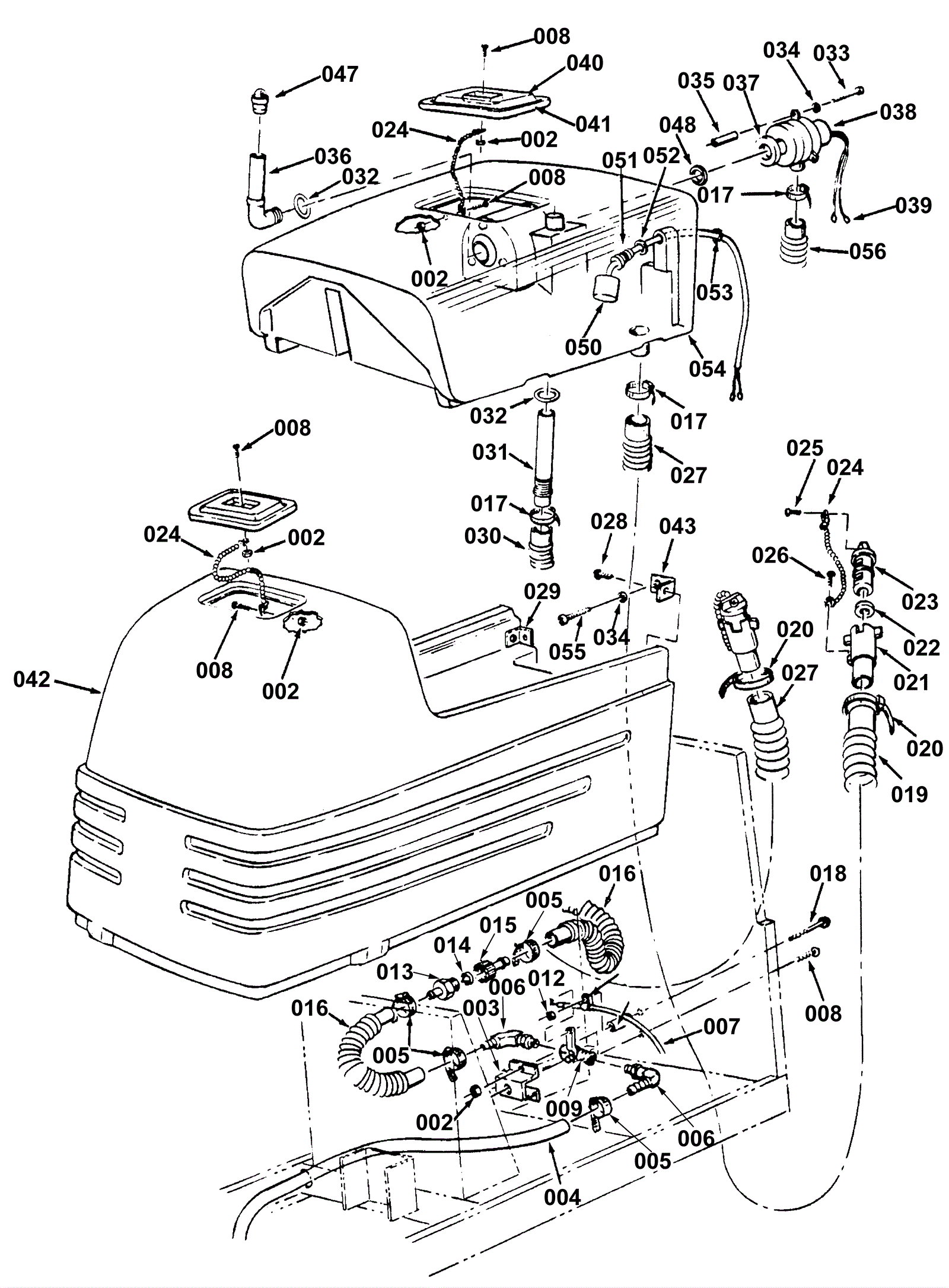

VISION 21I Solution and Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
002 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
003 170-0259 Bracket (OBSOLETE) $20.79 1 usually ships 1-5 days
004 170-0260 Solution hose $55.12 1 usually ships 13-18 days
005 997-2002 Hose clamp #6 $2.15 6 ships same day
006 170-0261 Elbow $20.23 2 usually ships 13-18 days
007 170-0028 Solution control cable assembly $67.96 1 usually ships 13-18 days
008 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 6 ships same day
009 170-0006 Manual solution valve $79.22 1 usually ships 13-18 days
010 170-0262 Spacer $11.75 1 usually ships 1-5 days
011 170-0263 Cable clip $11.75 1 usually ships 1-5 days
012 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
013 170-0264 Hose barb $11.35 1 usually ships 13-18 days
014 164-0065 Filter screen $3.20 1 ships same day
015 164-0182 Hose barb and collar $10.59 1 ships same day
016 170-0033 Solution hose $58.17 2 usually ships 13-18 days
017 997-2007 Hose clamp $2.07 5 ships same day
018 999-1064 Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated $0.99 1 ships same day
019 170-0041 39 inch drain hose $135.82 1 usually ships 13-18 days
020 164-0218 Nylon hose clamp $4.31 2 usually ships 19-25 days
021 170-0043 Drain valve $27.26 2 usually ships 13-18 days
022 170-0032 Drain valve gasket $11.35 2 ships same day
023 170-0042 Drain valve handle $27.26 2 usually ships 13-18 days
024 170-0268 Drain chain assembly $12.89 4 usually ships 13-18 days
025 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 2 ships same day
026 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss $0.99 2 ships same day
027 170-0269 19 inch solution drain hose $82.27 1 usually ships 1-5 days
028 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
029 170-0178 Bracket $144.86 1 usually ships 1-5 days
030a 164-0089 Squeegee vacuum hose with cuffs $63.28 1 ships same day
030b 991-8568 Squeegee vacuum hose $46.80 1 usually ships 18-24 days
030c 991-1904 Squeegee vacuum hose with straight cuffs $46.80 1 (NON-OEM) ships same day
031 170-0272 Squeegee adaptor assembly (OBSOLETE) $10.60 1 usually ships 1-5 days
032 170-0273 O-ring $8.03 2 ships same day
033 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated $1.39 6 ships same day
034 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
035 170-0274 Vacuum motor spacer $28.46 3 usually ships 13-18 days
036 170-2076 Tube stand (OBSOLETE) $36.19 1 usually ships 1-5 days
038 991-1210 24V 3 stage vacuum motor tangential $119.97 1 usually ships 18-24 days
039a 170-0279 Contact $1.45 4 usually ships 12-15 days
039b 170-0280 Connector housing (black) $2.42 2 usually ships 12-15 days
039c 170-0281 Connector housing (blue) $9.70 2 usually ships 13-18 days
040 170-0613 Tank lid $51.96 2 ships same day
041 170-6038 Tank lid gasket $27.26 2 usually ships 13-18 days
042 170-2077 Solution tank (OBSOLETE) $573.21 1 usually ships 1-5 days
043 170-2078 Left solution tank bracket (OBSOLETE) $12.47 1 usually ships 1-5 days
047 170-2149 Vacuum strainer $40.44 1 usually ships 1-5 days
048 170-0647 Lock nut $11.35 1 usually ships 13-18 days
050 170-0291 Float switch kit $216.63 1 usually ships 1-5 days
051 170-0292 Strain relief $16.35 1 usually ships 12-15 days
052 170-0293 Seal $37.27 1 usually ships 13-18 days
053 170-2413 Nut lock $1.21 1 usually ships 12-15 days
054 170-2079 Recovery tank (OBSOLETE) $547.07 1 usually ships 1-5 days
055 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 usually ships 16-20 days
056 N/A Not available Call for price 1 Vacuum motor hose usually ships 3-26 days
