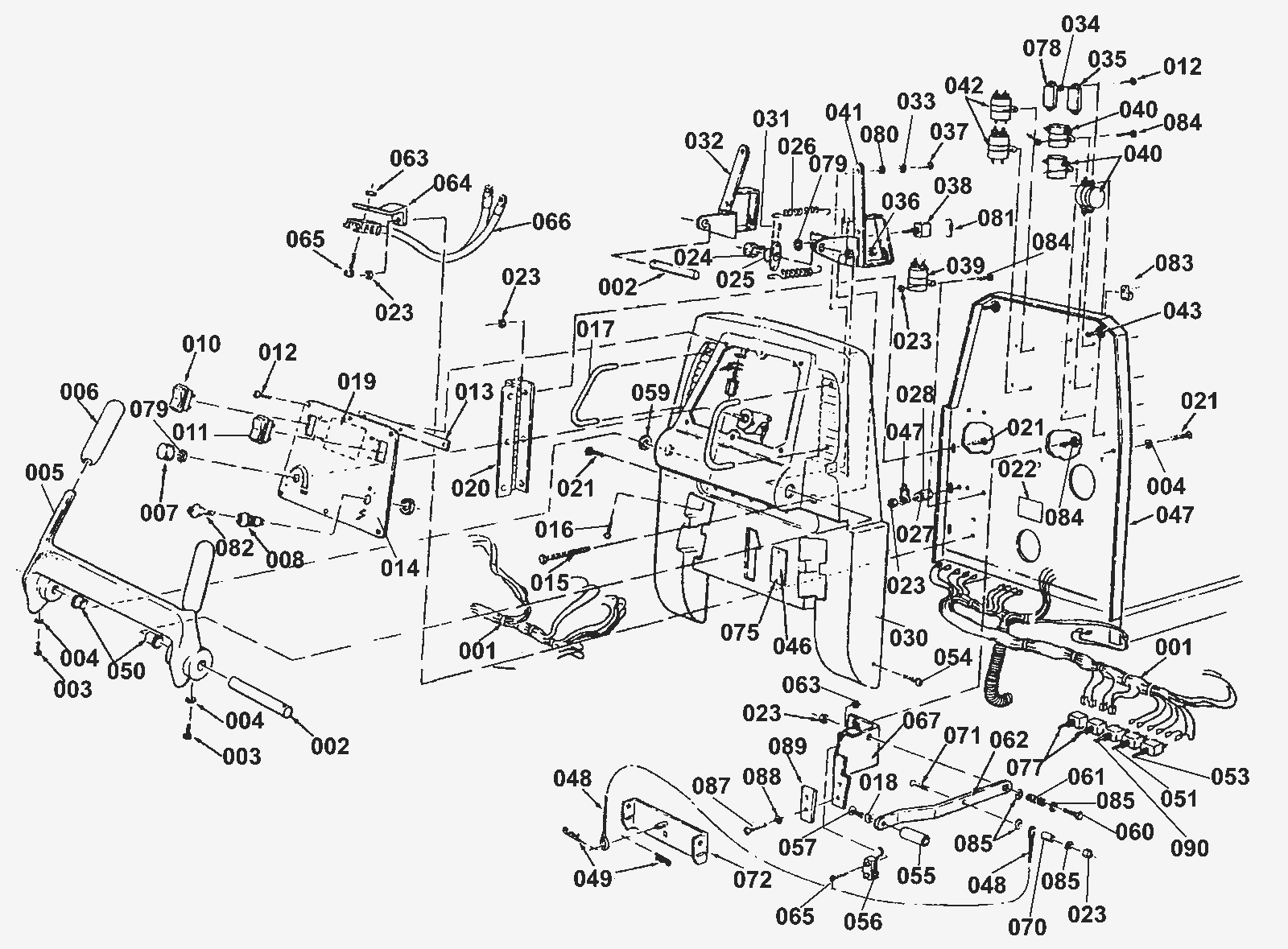

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1910
|
Wiring harness (OBSOLETE) |
1 |
|
|
003 |
999-0625
|
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
2 |
|
|
004 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
005 |
170-2080
|
Control handle (OBSOLETE) |
1 |
|
|
006 |
170-0051
|
Control handle grip |
2 |
|
|
007 |
999-0431
|
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
2 |
|
|
008 |
170-0053
|
Key switch with 2 keys |
1 |
|
|
010 |
170-0058
|
Rocker switch 2 position 6 prong |
1 |
|
|
011 |
170-0089
|
Rocker switch (OBSOLETE) |
1 |
|
|
012 |
999-0359
|
Screw 10-32 x 1 1/4 pan head phillips zinc plated |
6 |
|
|
013 |
170-0059
|
Gasket |
2 |
|
|
014 |
170-2081
|
Console panel (OBSOLETE) |
1 |
|
|
015 |
999-0887
|
Bolt 3/8-16 x 3 hex head hot dipped galvanized |
2 |
|
|
016 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
1 |
|
|
017 |
170-0066
|
Stationary handle (OBSOLETE) |
2 |
|
|
019 |
170-2082
|
Wiring label (OBSOLETE) |
1 |
|
|
020 |
170-0061
|
Cover hinge (OBSOLETE) |
1 |
|
|
021 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
8 |
|
|
022 |
170-2083
|
Wiring label (OBSOLETE) |
1 |
|
|
023 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
20 |
|
|
024 |
170-0071
|
Collar (OBSOLETE) |
1 |
|
|
025 |
170-0067
|
Centering bracket (OBSOLETE) |
1 |
|
|
026 |
170-0068
|
Control handle spring (OBSOLETE) |
2 |
|
|
027 |
170-0064
|
Stud 1/4-20 |
2 |
|
|
028 |
170-0063
|
Insulated stand off |
2 |
|
|
030 |
170-2084
|
Rear cover (OBSOLETE) |
1 |
|
|
031 |
999-0627
|
Screw 5/16-18 x 1/2 socket cup point set ss |
4 |
|
|
032 |
170-2085
|
Left cover support (OBSOLETE) |
1 |
|
|
033 |
999-0028
|
Washer 5/16 split lock plain finish |
4 |
|
|
034 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
035 |
170-2086
|
12 second relay (OBSOLETE) |
1 |
|
|
037 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
038 |
170-7054
|
Toggle switch |
1 |
|
|
039a |
172-2163
|
24V solenoid 4 post (2 large 2 small) |
1 |
|
|
039b |
991-1226
|
24V solenoid 4 post (2 large 2 small) |
1 |
(NON-OEM) |
|
040 |
170-1797
|
Vacuum solenoid (OBSOLETE) |
3 |
|
|
041 |
170-2087
|
Right cover support (OBSOLETE) |
1 |
|
|
042 |
170-1931
|
Main solenoid contactor |
2 |
|
|
043 |
170-0078
|
Tank stop bushing (OBSOLETE) |
2 |
|
|
046 |
170-2088
|
Warning plate (OBSOLETE) |
1 |
|
|
047 |
170-1913
|
Main frame weldment (OBSOLETE) |
1 |
|
|
048 |
170-0034
|
Squeegee lift cable |
1 |
|
|
049 |
170-0109
|
Cotter hairpin |
2 |
|
|
050 |
170-0088
|
Flanged bearing (OBSOLETE) |
2 |
|
|
051 |
991-1625
|
30amp circuit breaker |
1 |
|
|
053 |
991-1627
|
5amp circuit breaker |
1 |
|
|
054 |
999-0456
|
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
5 |
|
|
055 |
170-0110
|
Squeegee lift handle |
1 |
|
|
056 |
170-0111
|
Vacuum switch assembly (OBSOELTE) |
1 |
|
|
059 |
999-0630
|
Washer 3/4 SAE flat |
1 |
|
|
060 |
999-0813
|
Bolt 5/16-18 x 1 x 1/4-20 socket head shoulder |
1 |
|
|
061 |
170-0113
|
Spring (OBSOLETE) |
1 |
|
|
062 |
170-2089
|
Squeegee lift lever (OBSOLETE) |
1 |
|
|
063 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
|
064 |
170-0090
|
Power connector bracket (OBSOLETE) |
1 |
|
|
065 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
|
066 |
N/A
|
Not available |
1 |
(Console cable assemblyl) |
|
067 |
170-1804
|
Lift bracket (OBSOLETE) |
1 |
|
|
070 |
170-0117
|
Spacer |
1 |
|
|
071 |
999-0538
|
Screw 1/4-20 x 1 flat head slotted stainless steel |
1 |
|
|
072 |
N/A
|
Not available |
1 |
in bracket (ref. no.25) see "Traverse system assembly" illustration and parts list |
|
075 |
375-7487
|
Rivet 1/8 x 5/16 inch (OBSOLETE) |
2 |
|
|
077 |
991-1630
|
35amp circuit breaker |
1 |
|
|
078 |
170-2090
|
3 second Relay (OBSOLETE) |
1 |
|
|
079 |
999-0260
|
Washer 1/2 internal starlock |
1 |
|
|
080 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
4 |
|
|
081 |
170-0119
|
Diode assembly |
1 |
|
|
082 |
991-1635
|
Key |
1 |
|
|
083 |
170-0100
|
Hose clamp |
1 |
|
|
084 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
16 |
|
|
085 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
087 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
088 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
089 |
170-0121
|
Wear plate (OBSOLETE) |
1 |
|
|
090 |
170-0092
|
30amp circuit breaker (OBSOLETE) |
1 |
|
|
N/S |
170-8261
|
Knob solution flow module (OBSOLETE) |
1 |
|
|
N/S |
999-0587
|
Screw 3/8-16 x 5/8 round head slotted zinc |
1 |
|
|
N/S |
999-0003
|
Nut 5/8-18 hex jam stainless steel |
2 |
|
|
N/S |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
|
N/S |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
2 |
|
|
N/S |
170-0079
|
Release pin |
2 |
|
|
N/S |
170-0028
|
Solution control cable assembly |
1 |
|
|
N/S |
170-0049
|
Control handle pin (OBSOLETE) |
2 |
|
|
N/S |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
2 |
|
|
N/S |
999-0201
|
Washer 3/8 internal star lock |
1 |
|
|
