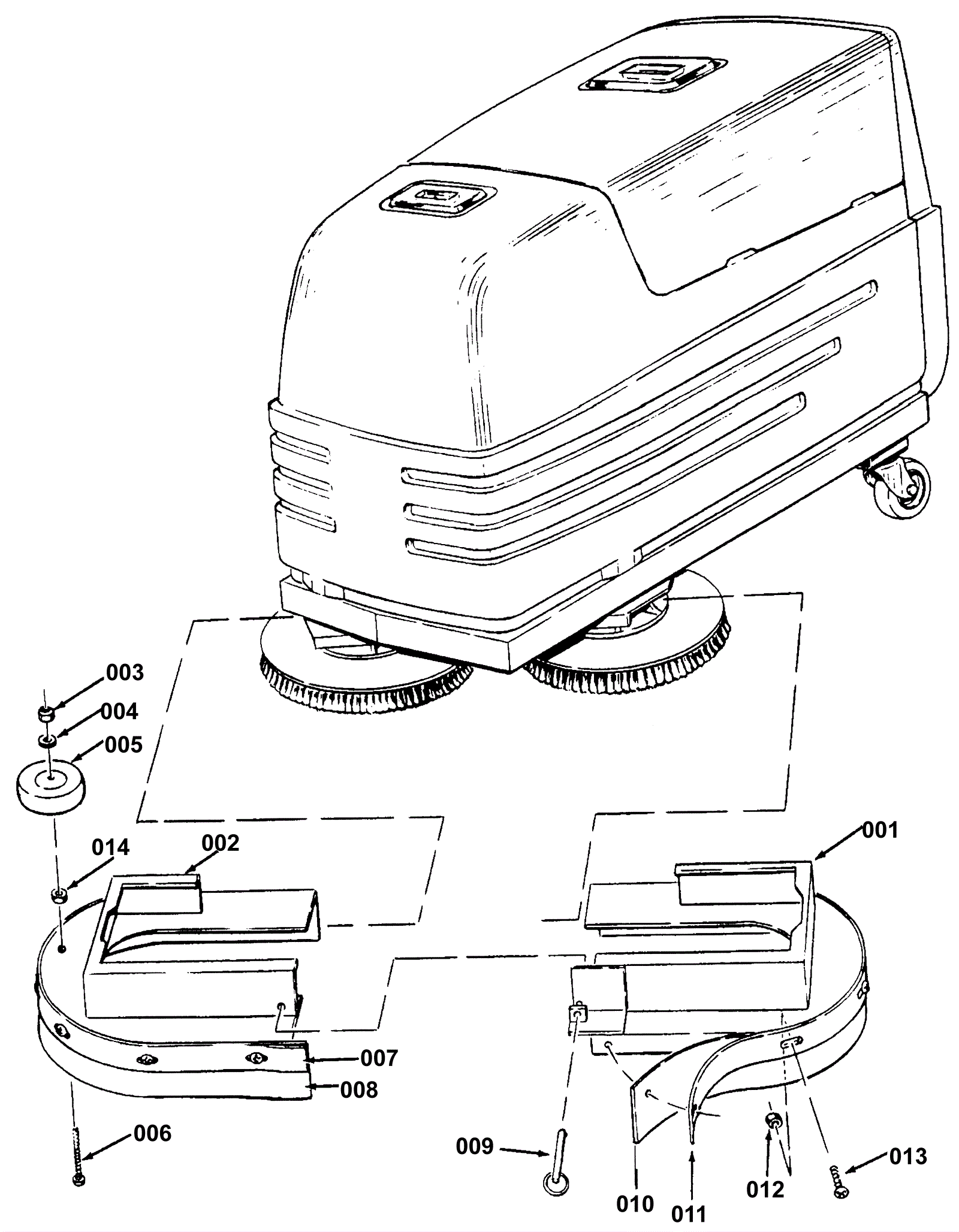

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-4759
|
Left hand housing brush (OBSOLETE) |
|
|
|
002 |
170-5760
|
Block Assembly-sectional (OBSOLETE) |
|
|
|
003 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
|
|
|
004 |
170-0304
|
Washer 15/32 x 1/32 |
|
|
|
005 |
170-0165
|
Wheel (OBSOLETE) |
|
|
|
006 |
999-1079
|
Bolt 3/8-16 x 2 1/4 hex head grade 5 zinc plated |
|
|
|
007 |
170-4761
|
Right hand strap |
|
|
|
008 |
170-0724
|
Right hand skirt |
|
|
|
009 |
170-0019
|
Brush housing pin |
|
|
|
010 |
170-4762
|
Left hand skirt |
|
|
|
011 |
170-4763
|
Left hand strap (OBSOLETE) |
|
|
|
012 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
|
|
|
013 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
|
|
|
014 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
|
|
|
