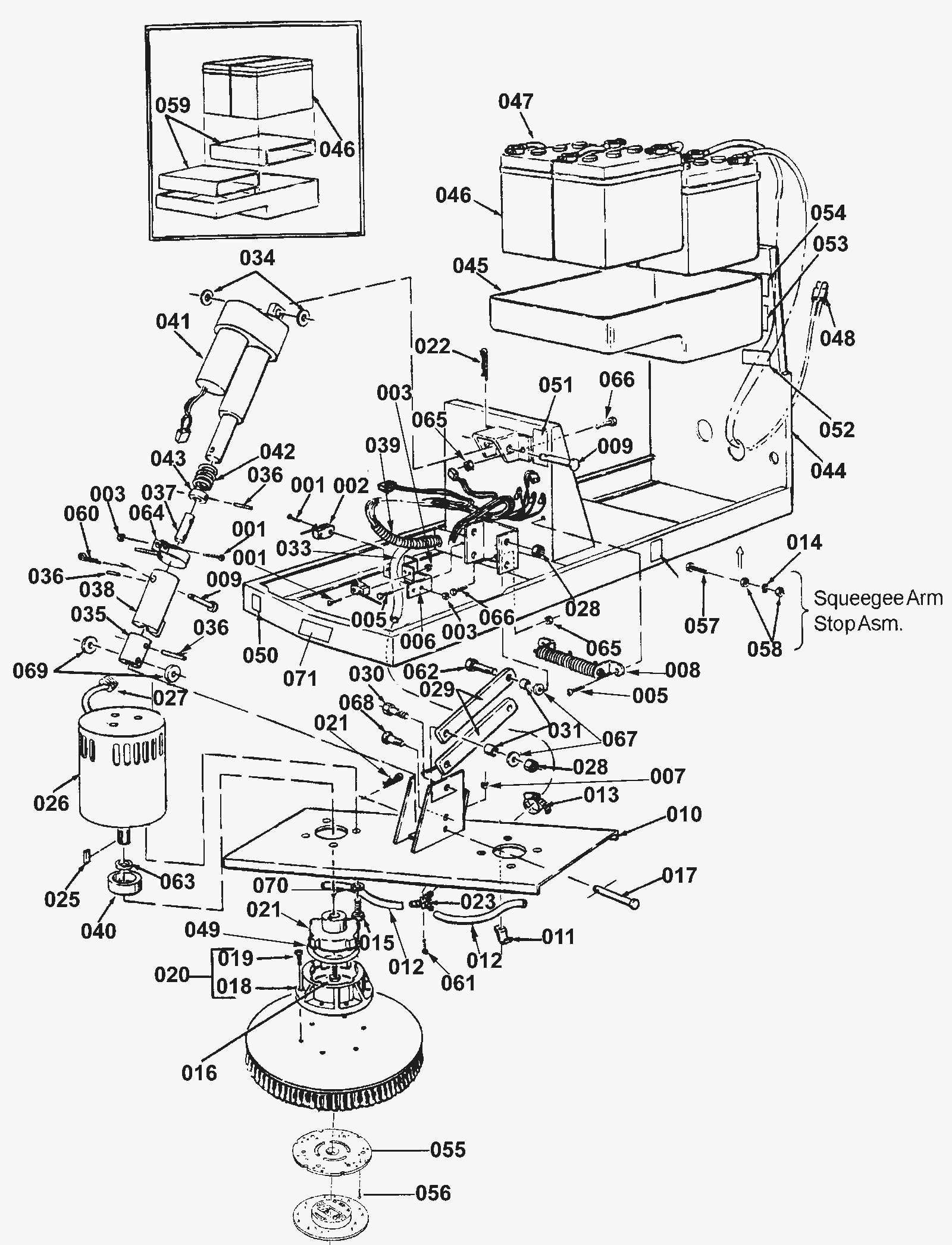

Brush Head Assembly

#PartDescription ReqNotesAvailability
001 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 4
002 170-0191 Snap switch 1
003 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 6
004 170-1778 Brush switch 1
005 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 4
006 170-1785 Switch bracket (OBSOLETE) 1
007 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
008 170-1788 Traverse resistor (OBSOLETE) 1
009 170-0196 Clevis pin 2
010 170-4757 Brush plate (OBSOLETE) 1
011 170-0198 Hose clamp 2
012 170-2476 Insulator-Commutator (OBSOLETE) 2
013 997-2002 Hose clamp #6 1
014 999-0659 Washer 3/8 medium split lock stainless steel 8
015 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 8
016 170-1599 Screw 5/16-18 x 3/4 socket head nylock 2
017 170-1794 Clevis pin 1
018 996-0336 Clutch plate with brush holder spring 2
019 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 6
020 N/A Not available 2 Brush and pads (See "Maintenance Literature)
021a 170-0207 Male gimbal with collar 2
021b 170-0207 Male gimbal with collar
022 170-0135 Cotter pin (OBSOLETE) 3
023 170-0208 Water splitter (OBSOLETE) 1
025 164-0132 Square keyway 1/4 x 1/4 1
026 170-1631 Brush motor (OBSOLETE) 2
027a 170-0218 Contact pins for charger plug (sold individually) 2
027b 170-0009 Connector housing 2
028 999-0118 Nut 1/2-13 nylon insert lock zinc plated 8
029 170-1856 Linkage bar 4
030 999-9283 Screw 1/2 -13 x 1-1/4 inch hex cap zinc 2
031 170-0212 Flanged bearing 8
033 N/A Not available 1 Solution hose Re #4 (See "Traverse system assembly 02/2000 illustration and parts list)
034 170-0213 Nylon washer 2
035 170-0214 Head pressure sleeve (OBSOLETE) 1
036 170-0215 Spiral pin 3/16 3
037 170-1824 Head pressure pin (OBSOLETE) 1
038 170-1909 Head pressure tube (OBSOLETE) 1
039 170-1910 Wiring harness (OBSOLETE) 1
040 170-0233 Brush driver collar - See pop-up (OBSOLETE) 2
041 170-2220 Linear brush actuator 24V DC (OBSOLETE) 1
042 170-1912 Head pressure spring (OBSOLETE) 1
043 170-0221 Spring seat (OBSOLETE) 1
044 170-1913 Main frame weldment (OBSOLETE) 1
045 170-1950 Battery tray (OBSOLETE) 1
047a 170-0224 Battery cable 1
047b 998-0010 Battery jumper cable - ring type (red) 2 (For use with top, bolt type post batteries)
047c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 2 (NON-OEM)
048 170-1749 Battery cable assembly (OBSOLETE) 1
049 170-0031 Brush holder spring 2
050 170-0226 Moving warning decal 3
051 170-1987 Wiring label (OBSOLETE) 1
052 170-2027 Battery connector label (OBSOLETE) 1
053 170-0229 Battery warning decal 2
054 170-0230 Falling parts warning decal 2
055 991-2206 Center-Lok 3 pad holder 2 Pad driver only
056 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 6
057 999-0887 Bolt 3/8-16 x 3 hex head hot dipped galvanized 2
058 999-0628 Nut 3/8-16 hex jam stainless steel 4
059 170-2028 Battery spacer 12v (OBSOLETE) 2
060 997-2505 Cotter pin 1
061 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated 2
062 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 4
063 170-0706 Washer 3/4 rubber 2
064 170-2049 Activator (OBSOLETE) 1
065 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
066 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
067 170-0705 Washer 1/2 x 3/64 8
068 999-9317 Bolt 1/2-13 x 1-1/4 nex head zinc 2
069 170-2065 Spacer nut (OBSOLETE) 2
070 999-0060 Washer 1/4 split lock plain finish 8
071 170-4758 Label 21i (OBSOLETE) 1
046a 162-0002 12V 185Ah wet battery (SNSR) 2
046b 162-0003 6V 225Ah wet battery (SNSR) 4
046a 162-0047 12V 215Ah AGM battery (Group J185) (SNSR) 2
