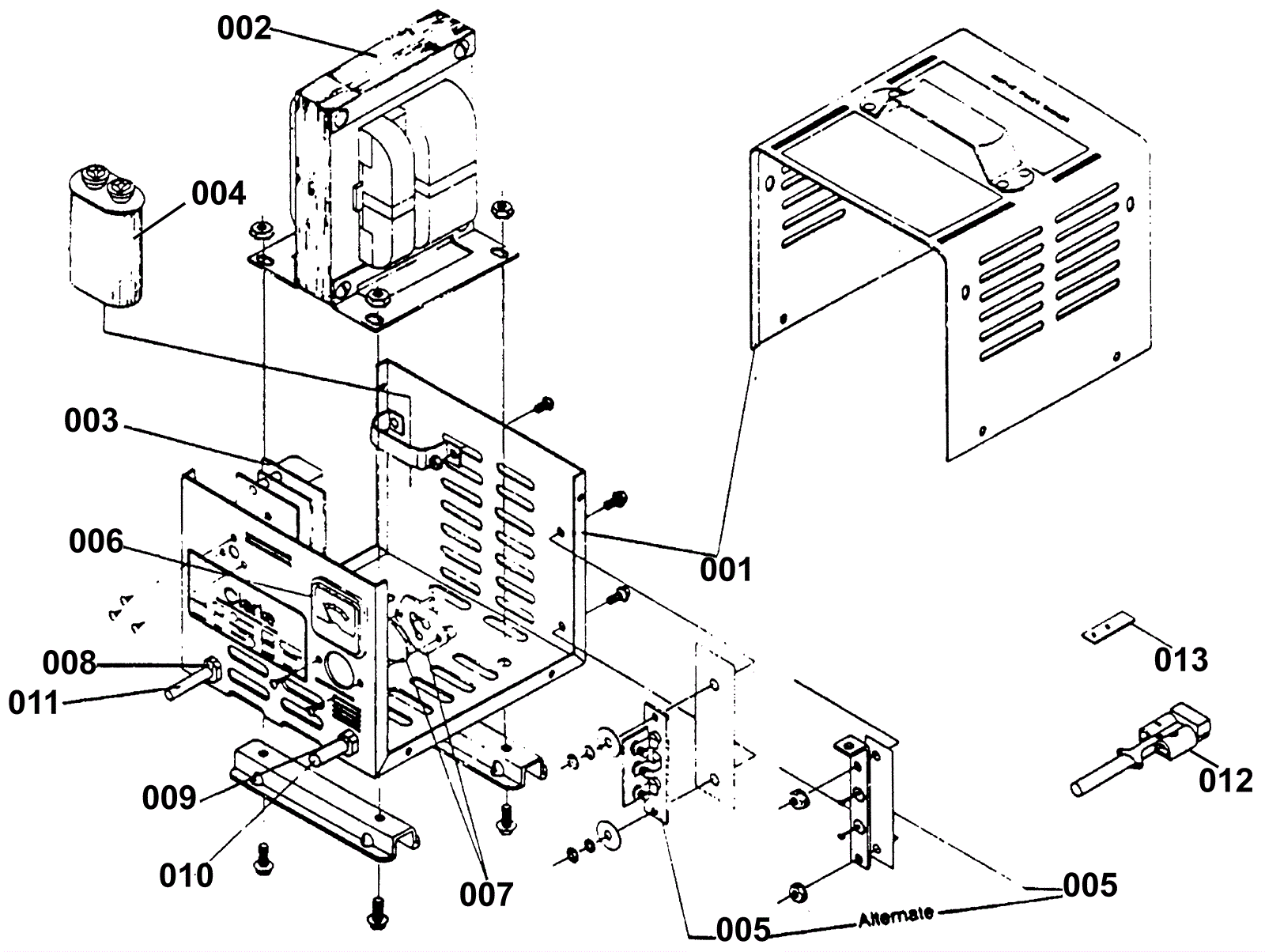

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1400
|
Charger case (OBSOLETE) |
|
|
|
003 |
170-0628
|
Electronic Controller Kit |
|
|
|
004 |
272-8920
|
Capacitor |
|
|
|
005 |
272-5296
|
Heat sink assembly with diode (OBSOLETE) |
|
|
|
006 |
170-1282
|
Ammeter |
|
|
|
007a |
372-1254
|
Fuse assembly |
|
|
|
007b |
162-5024
|
24V & 36V fuse holder assembly (cap not sold separately) |
|
|
|
008 |
170-1284
|
Strain relief |
|
|
|
009 |
170-1284
|
Strain relief |
|
|
|
010 |
170-1403
|
D.C. cord assembly |
|
|
|
011 |
170-1286
|
A.C. cord assembly (OBSOLETE) |
|
|
|
012 |
991-9284
|
50amp charger plug SB50 with pins (red) |
|
|
|
013 |
170-7194
|
DC charger plug lock key |
|
|
|
