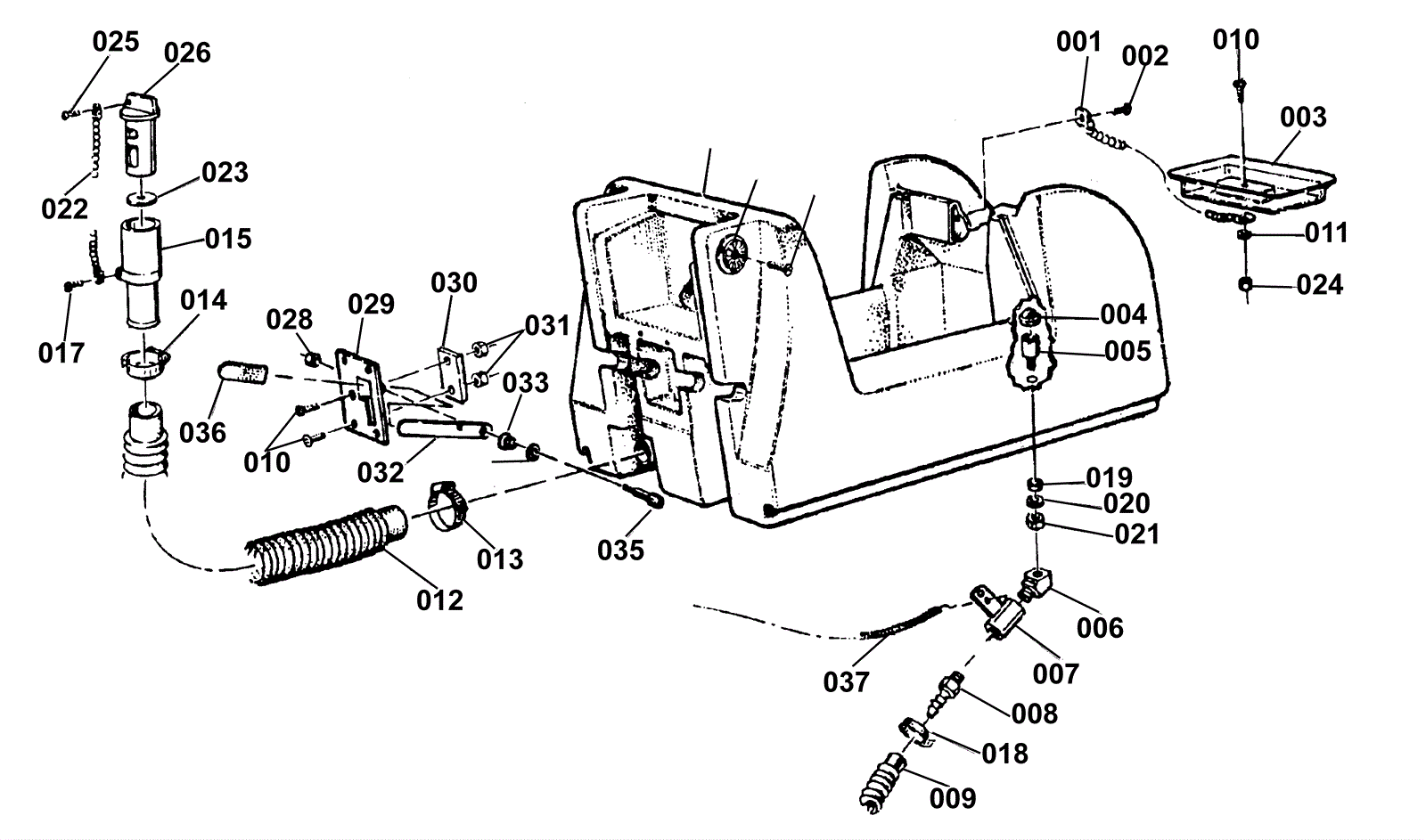

VISION 17B Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-2474 8 inch chain $9.60 1 usually ships 16-41 days
002 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
003 170-0613 Tank lid $43.93 1 usually ships 16-41 days
004a 170-2155 Sol Tank Strainer $16.27 1 (OEM) usually ships 1-5 days
004b 991-5137 Mesh filter screen $7.25 1 (NON-OEM) ships same day
005 170-3510 Motor/Circuit lead assembly (OBSOLETE) $5.51 1 usually ships 1-5 days
006 170-2156 Solution Elbow $8.00 1 usually ships 16-41 days
007 170-0006 Manual solution valve $66.98 1 usually ships 16-41 days
008 170-1834 Hose barb 3/8 x 1/4 $10.90 1 ships same day
009 170-1791 Hose (OBSOLETE) $80.05 1 usually ships 16-41 days
010 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
011 170-6125 Washer 1/8 lock $1.10 1 usually ships 1-5 days
012 170-2157 Drain Hose (OBSOLETE) $72.58 1 usually ships 16-41 days
013 997-2000 Hose clamp $2.37 1 ships same day
014 164-0218 Nylon hose clamp $3.35 1 ships same day
015 170-0043 Drain valve $23.05 1 ships same day
016 170-4801 Solution tank (OBSOLETE) $430.70 1 usually ships 1-5 days
017 999-0576 Screw 8-18 x 1/2 pan head phillips self-drilling ss $0.99 1 ships same day
018 997-2001 Hose clamp $2.42 1 ships same day
019 170-6194 Drain Gasket $6.80 1 usually ships 1-5 days
020 170-2159 Washer $9.56 1 usually ships 1-5 days
021 170-3823 Nut 3/4 x 16 $8.43 1 usually ships 1-5 days
022 170-0268 Drain chain assembly $10.90 1 usually ships 16-41 days
023 170-0032 Drain valve gasket $9.60 1 ships same day
024 999-0062 Nut 10-24 hex $0.99 1 ships same day
025 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting $0.99 1 ships same day
026 170-0042 Drain valve handle $23.05 1 usually ships 16-41 days
027 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 2 ships same day
028 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
029 170-2161 Squeegee lift plate (OBSOLETE) $31.94 1 usually ships 1-5 days
030 170-2162 Wear Plate (OBSOLETE) $6.16 1 usually ships 1-5 days
031 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
032 170-2163 Squeegee lift handle (OBSOLETE) $17.06 1 usually ships 1-5 days
033 170-2164 Spring Taper $10.17 1 usually ships 1-5 days
034 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
035 170-4485 Shoulder bolt (OBSOLETE) $6.90 1 usually ships 1-5 days
036 170-2165 Handle Cover (OBSOLETE) $6.37 1 usually ships 1-5 days
037 170-4486 Solution cable (OBSOLETE) $104.30 1 usually ships 1-5 days
038 170-4487 Handle ratchet (OBSOLETE) $11.41 2 usually ships 1-5 days
039 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 6 ships same day
