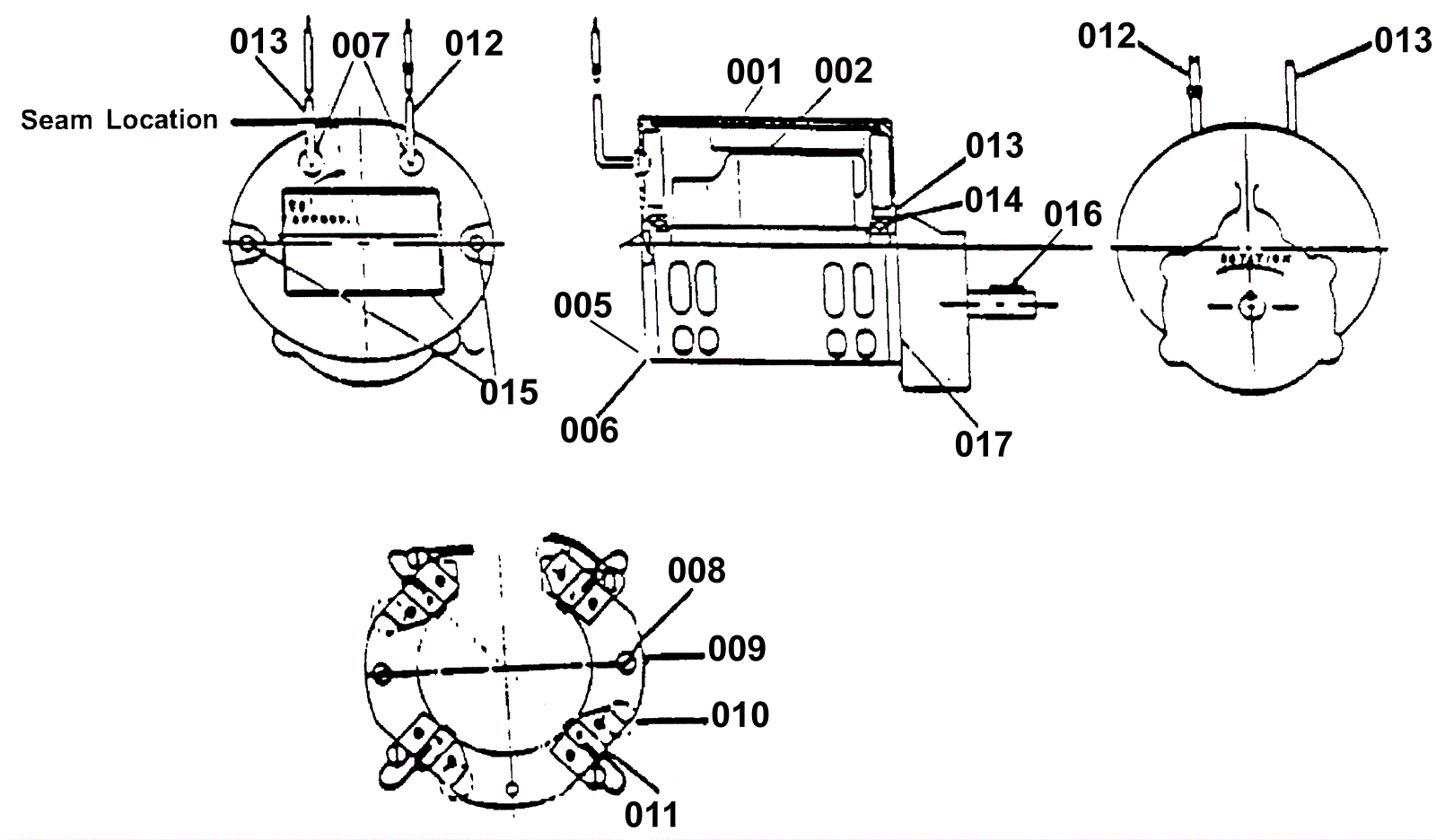

VISION 17B Brush Motor Wiring

#PartDescriptionPriceReqNotesAvailability
001 170-0316 Stator frame assembly (OBSOLETE) $432.00 1 usually ships 1-5 days
002 170-1414 Armature assembly (OBSOLETE) $712.32 1 usually ships 1-5 days
003 170-0320 Bottom bearing $26.61 1 usually ships 4-15 days
004 170-0321 Front end bearing $19.58 1 usually ships 4-15 days
005 N/A Not available Call for price 1 Commutator bracket assembly (with brush board assembly leads) usually ships 3-26 days
006 170-0323 Commutator bracket (OBSOLETE) $58.97 1 usually ships 1-5 days
007 170-0324 Strain relief (OBSOLETE) $1.69 2 usually ships 1-5 days
008 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
009 170-0325 Brush board assembly (OBSOLETE) $215.50 1 usually ships 16-41 days
010 372-1685 Springs $34.08 4 usually ships 4-15 days
011 372-1648 Carbon brush assembly $36.77 4 usually ships 16-41 days
012 170-0328 Positive lead assembly (OBSOLETE) $37.58 1 usually ships 1-5 days
013 170-0216 Head pressure pin (OBSOLETE) $87.48 1 usually ships 1-5 days
014 170-0330 Washer helical (OBSOLETE) $5.00 1 usually ships 1-5 days
015 164-1157 Bolt 1/4-20 x 7 3/4 thru $2.16 2 ships same day
016 164-0132 Square keyway 1/4 x 1/4 $4.20 1 usually ships 1-5 days
017a 164-0351 Gear box assembly $507.30 1 (OEM) usually ships 1-5 days
017b 991-5115 Gear box assembly $134.09 1 (NON-OEM) (also need to order 017c) usually ships 5-16 days
017c 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 (needed with 017b) ships same day
