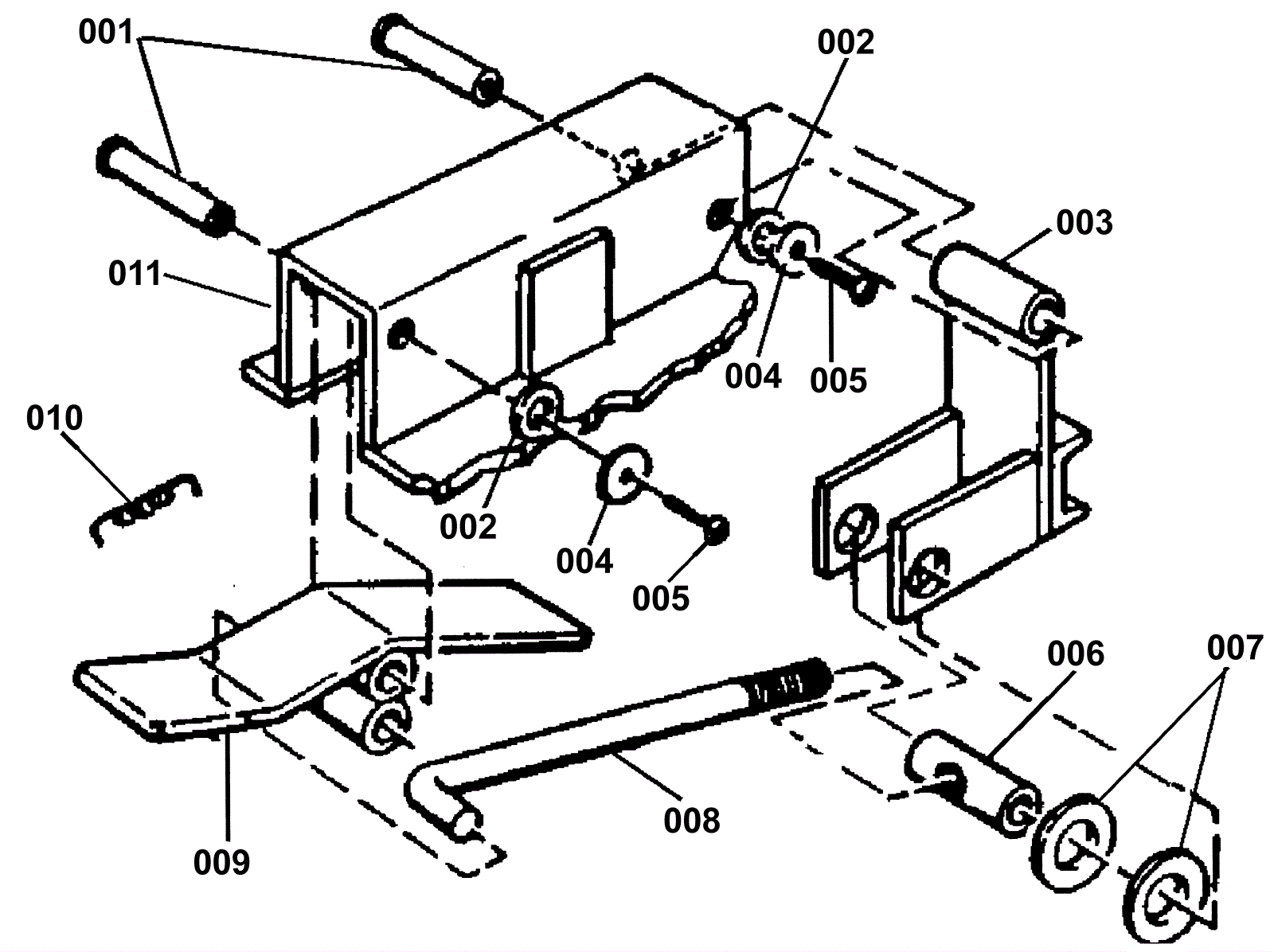

17B Brake Kit Assembly 11-98

#PartDescriptionPriceReqNotesAvailability
001 170-4479 Brake pin (OBSOLETE) Call for price 2 usually ships 1-5 days
002 170-2125 Washer (OBSOLETE) $6.95 2 usually ships 1-5 days
003 170-4480 Pad brake weldment (OBSOLETE) Call for price 1 usually ships 1-5 days
004 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
005 170-4461 Screw 10-24 x 3/8 stainless steel $1.10 2 usually ships 1-5 days
006 170-3382 Parking brake shaft (OBSOLETE) $25.70 1 usually ships 1-5 days
007 170-1397 Washer nylon $10.90 2 usually ships 16-41 days
008 170-4481 Brake rod (OBSOLETE) Call for price 1 usually ships 1-5 days
009 170-4482 Brake pedal Call for price 1 usually ships 1-5 days
010 170-2787 Spring latch (OBSOLETE) $6.95 1 usually ships 1-5 days
011 N/A Not available Call for price Frame machine usually ships 3-26 days
