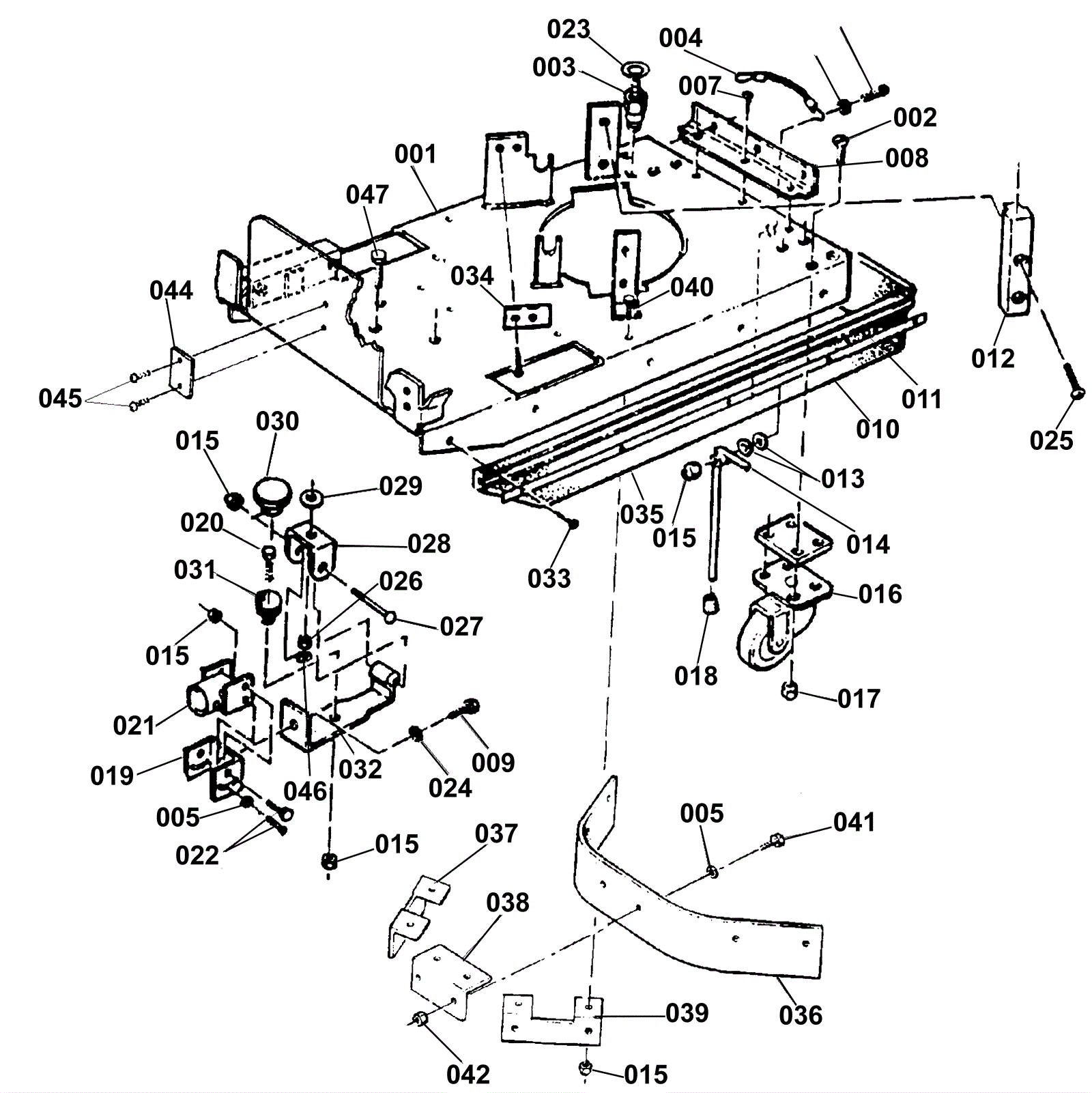

17B Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-4771 Main frame weldment (OBSOLETE) $254.45 1 usually ships 1-5 days
002 170-4786 Screw 5/16 flat $9.56 6 usually ships 1-5 days
003 170-1834 Hose barb 3/8 x 1/4 $10.90 1 ships same day
004 170-4454 Handle (OBSOLETE) $87.70 1 usually ships 1-5 days
005 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 15 ships same day
006 170-4455 Screw 1/4-20 x 1 1/2 (OBSOLETE) $5.00 2 usually ships 1-5 days
007 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 7 ships same day
008 170-4456 Tank hinge (OBSOLETE) $122.58 1 usually ships 1-5 days
009 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 1 ships same day
010 170-1271 Mainframe skirt $206.50 1 usually ships 1-5 days
011 170-4457 Skirt retainer (OBSOLETE) $10.91 2 usually ships 1-5 days
012 170-1695 Plastic Guide (OBSOLETE) $46.10 3 usually ships 1-5 days
013 170-3737 Washer wave $9.56 2 usually ships 1-5 days
014 170-4458 Kick stand (OBSOLETE) $27.00 1 usually ships 1-5 days
015 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 12 ships same day
016 170-4459 Swivel caster $150.94 2 usually ships 16-41 days
017 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
018 170-4460 Cap (OBSOLETE) $6.37 1 usually ships 1-5 days
019 170-2129 Squeegee swivel weldment (OBSOLETE) $37.58 1 usually ships 1-5 days
020 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 1 ships same day
021 170-2130 Squeegee bracket weldment (OBSOLETE) $54.54 1 usually ships 1-5 days
022 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
023 997-2001 Hose clamp $2.42 1 ships same day
024 170-2131 Washer lock $9.56 2 usually ships 1-5 days
025 373-3017 Screw 1/4-20 x 3/4 $10.90 6 usually ships 16-41 days
026 170-1760 Spacer $10.90 1 usually ships 1-5 days
027 170-2126 1/4 20 x 2 SS $11.38 1 usually ships 1-5 days
028 170-1759 Squeegee bracket $111.56 1 usually ships 1-5 days
029 170-2125 Washer (OBSOLETE) $6.95 1 usually ships 1-5 days
030 170-1379 Bushing (OBSOLETE) $31.99 1 usually ships 16-41 days
031 170-1378 Spring $20.37 1 usually ships 1-5 days
032 170-2127 Squeegee arm weldment (OBSOLETE) $72.60 1 usually ships 1-5 days
033 170-4461 Screw 10-24 x 3/8 stainless steel $1.10 12 usually ships 1-5 days
034 170-4446 Retainer (OBSOLETE) $11.45 1 usually ships 1-5 days
035 170-4462 Skirt retainer (OBSOLETE) $7.36 2 usually ships 1-5 days
036 170-4772 Flap center (OBSOLETE) $15.14 1 usually ships 1-5 days
037 170-1773 Spray wand assembly (OBSOLETE) $414.80 1 usually ships 1-5 days
038 170-4774 Center flap bracket (OBSOLETE) $13.18 1 usually ships 1-5 days
039 170-4775 Right flap bracket (OBSOLETE) $13.18 1 usually ships 1-5 days
040 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel $0.99 6 ships same day
041 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 11 ships same day
042 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 11 ships same day
043 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
044 170-3930 Warning plate (OBSOLETE) $7.10 1 usually ships 16-41 days
045 170-2135 Screw 3-32 x 1/4 (OBSOLETE) $1.69 2 usually ships 1-5 days
046 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 ships same day
047 170-4463 Screw 5/8 - 18 x 7/8 (OBSOLETE) $5.00 1 usually ships 1-5 days
