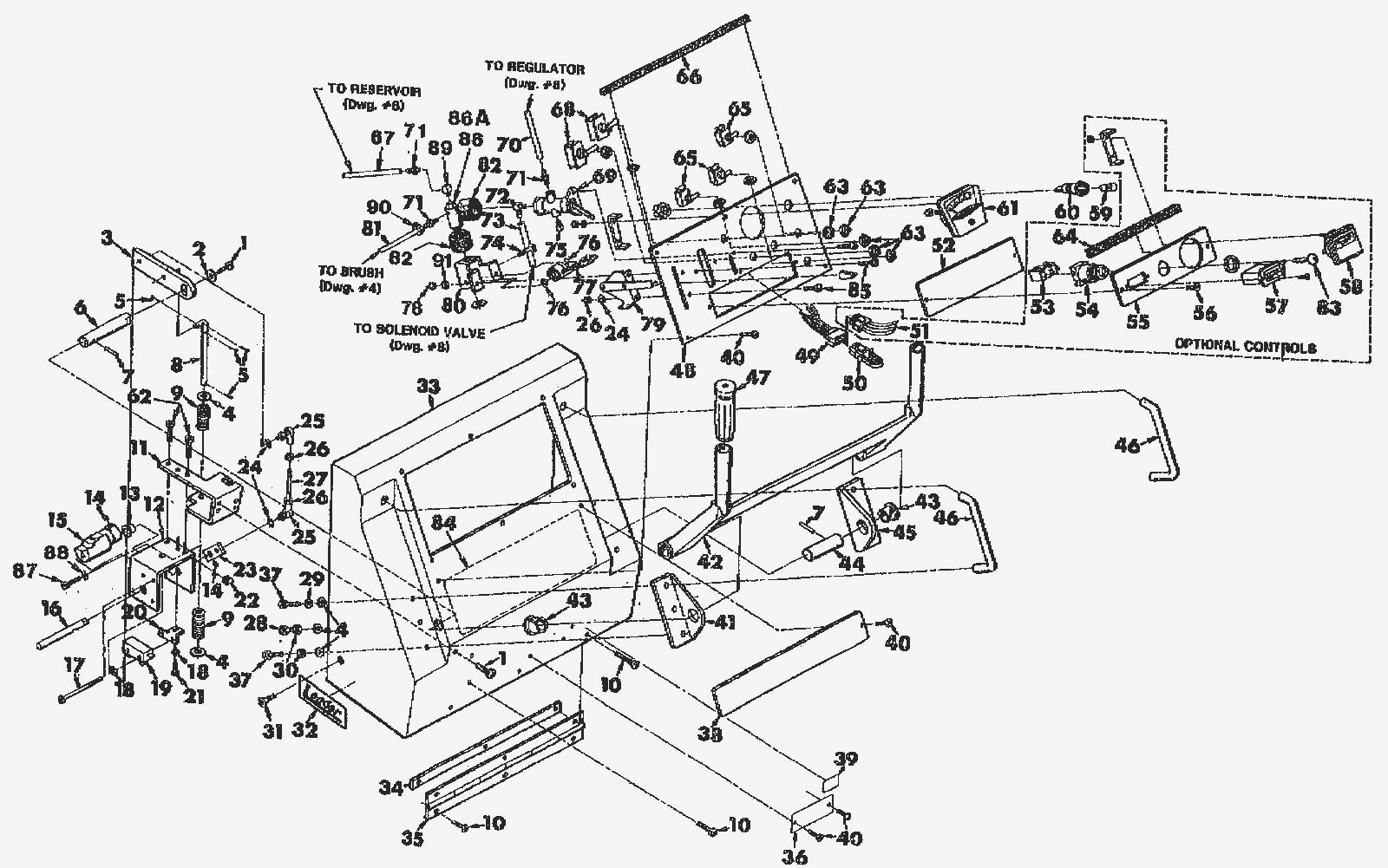

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-1088
|
Screw M8-1.25 x 12mm pan head phillips zinc plated |
3 |
|
|
002 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
003 |
N/A
|
Not available |
1 |
Switch actuator arm |
|
004 |
999-0546
|
Screw 5/16-18 x 1 socket head alloy plain finish |
8 |
|
|
005 |
997-2500
|
Cotter pin |
4 |
|
|
006 |
N/A
|
Not available |
1 |
Left hand handle pivot pin |
|
007 |
170-2906
|
Roll pin (OBSOLETE) |
2 |
|
|
008 |
N/A
|
Not available |
1 |
Centering rod |
|
009 |
N/A
|
Not available |
2 |
Centering spring |
|
010 |
999-0807
|
Screw M6-1 x 10mm flat head phillips |
6 |
|
|
011 |
N/A
|
Not available |
1 |
Spring handle tension anchor |
|
012 |
N/A
|
Not available |
1 |
Switch frame |
|
013 |
N/A
|
Not available |
1 |
Switch bushing |
|
014 |
170-2897
|
Screw M6 x 1 x 8mm set (OBSOLETE) |
2 |
|
|
015 |
N/A
|
Not available |
1 |
Switch cam |
|
016 |
N/A
|
Not available |
1 |
Switch shaft |
|
017 |
N/A
|
Not available |
2 |
Screw |
|
018 |
999-0148
|
Washer #6 external star lock zinc plated |
3 |
|
|
019 |
170-3308
|
On/off switch (OBSOLETE) |
4 |
|
|
020 |
N/A
|
Not available |
1 |
Switch bracket |
|
021 |
N/A
|
Not available |
1 |
Screw |
|
022 |
170-0462
|
Nut 1/4-20 speed (OBSOLETE) |
2 |
|
|
023 |
N/A
|
Not available |
1 |
Switch actuator arm |
|
024 |
N/A
|
Not available |
4 |
Washer #10 SEMS |
|
025 |
170-5772
|
Ball joint assembly (OBSOLETE) |
2 |
|
|
026 |
170-8076
|
Nut M5 x .8 hex jam |
4 |
|
|
027 |
N/A
|
Not available |
1 |
Adjusting rod |
|
028 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
3 |
|
|
029 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
030 |
170-5787
|
Nut M8 x 1.25 |
2 |
|
|
031 |
N/A
|
Not available |
2 |
Screw |
|
032 |
N/A
|
Not available |
2 |
"Leader" label |
|
033 |
N/A
|
Not available |
1 |
Control housing |
|
034 |
N/A
|
Not available |
1 |
Hinge retainer |
|
035 |
N/A
|
Not available |
1 |
Control housing hinge |
|
036a |
N/A
|
Not available |
1 |
Model and serial number plates |
|
036b |
N/A
|
Not available |
1 |
Model and serial number plates |
|
037 |
N/A
|
Not available |
2 |
Screw |
|
038 |
N/A
|
Not available |
1 |
Warning label |
|
039 |
170-2915
|
Patent pending label (OBSOLETE) |
1 |
|
|
040 |
999-0541
|
Screw 10-24 x 3/4 round head slotted stainless steel |
14 |
|
|
041 |
N/A
|
Not available |
1 |
Left hand adjusting bracket |
|
042 |
170-0533
|
Control handle (OBSOLETE) |
1 |
|
|
043 |
170-0088
|
Flanged bearing (OBSOLETE) |
2 |
|
|
044 |
N/A
|
Not available |
1 |
Right hand handle pivot pin |
|
045 |
N/A
|
Not available |
1 |
Right hand adjusting bracket |
|
046 |
N/A
|
Not available |
2 |
Stationary handle |
|
047 |
N/A
|
Not available |
2 |
Handle grip |
|
048 |
N/A
|
Not available |
1 |
Console panel |
|
049 |
N/A
|
Not available |
1 |
Console harness assembly |
|
050 |
N/A
|
Not available |
1 |
Shorting plug assembly |
|
051 |
N/A
|
Not available |
1 |
Optional accesory harness assembly |
|
052 |
N/A
|
Not available |
1 |
Console cover panel |
|
053 |
N/A
|
Not available |
2 |
Optional contact block |
|
054 |
N/A
|
Not available |
1 |
Optional key lock switch |
|
055 |
N/A
|
Not available |
1 |
Optinal contorl accessory panel |
|
056 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
|
|
057 |
N/A
|
Not available |
1 |
Optional Hour meter |
|
058 |
N/A
|
Not available |
1 |
Optional volt meter |
|
059 |
170-2916
|
Lamp (OBSOLETE) |
1 |
|
|
060 |
170-2917
|
Light assembly (OBSOLETE) |
1 |
|
|
061a |
170-2918
|
Ammeter 30 amp (OBSOLETE) |
1 |
|
|
061b |
170-2919
|
Ammeter 60 amp (OBSOLETE) |
1 |
|
|
062 |
999-1089
|
Screw 14 x 3/4 flat head phillips stainless steel |
2 |
|
|
063 |
170-1547
|
Boot |
6 |
|
|
064 |
N/A
|
Not available |
1 |
Optional accessory panel gasket |
|
065 |
170-1725
|
Toggle switch |
3 |
|
|
066 |
N/A
|
Not available |
1 |
Control panel gasket |
|
067 |
N/A
|
Not available |
1 |
Reservoir to brush valve hose |
|
068 |
170-6263
|
On/Off switch |
2 |
|
|
069 |
170-2920
|
Squeegee valve |
1 |
|
|
070 |
N/A
|
Not available |
1 |
Air hose |
|
071 |
160-0052
|
Fitting 1/4 barb x 1/4mp |
2 |
|
|
072 |
170-2901
|
Elbow (OBSOLETE) |
1 |
|
|
073 |
N/A
|
Not available |
2 |
Squeegee solenoid to valve hose |
|
074 |
N/A
|
Not available |
1 |
Vavle shaft |
|
075 |
N/A
|
Not available |
1 |
Pipe plug |
|
076 |
170-2921
|
Washer wave |
2 |
|
|
077 |
N/A
|
Not available |
1 |
(Cam valve) |
|
078 |
999-0439
|
Nut M6-1 hex coarse thread |
1 |
|
|
079 |
170-0528
|
Solution control with cable (OBSOLETE) |
1 |
|
|
080 |
N/A
|
Not available |
1 |
Regulator mounting bracket |
|
081 |
N/A
|
Not available |
1 |
Vavle to brush hose |
|
082 |
170-2923
|
Pressure control vavle (OBSOLETE) |
1 |
|
|
083 |
N/A
|
Not available |
1 |
Key |
|
084a |
N/A
|
Not available |
2 |
Wiring diagram without options |
|
084b |
N/A
|
Not available |
1 |
Wiring diagram with options |
|
085 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
1 |
|
|
086a |
170-2923
|
Pressure control vavle (OBSOLETE) |
4 |
|
|
086b |
170-2924
|
Bruse vavle assembly |
1 |
|
|
087 |
N/A
|
Not available |
1 |
Screw m6 x 1 x 26 pan |
|
088 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
089 |
170-2925
|
L fitting |
1 |
|
|
090 |
N/A
|
Not available |
1 |
Clamp |
|
091 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
