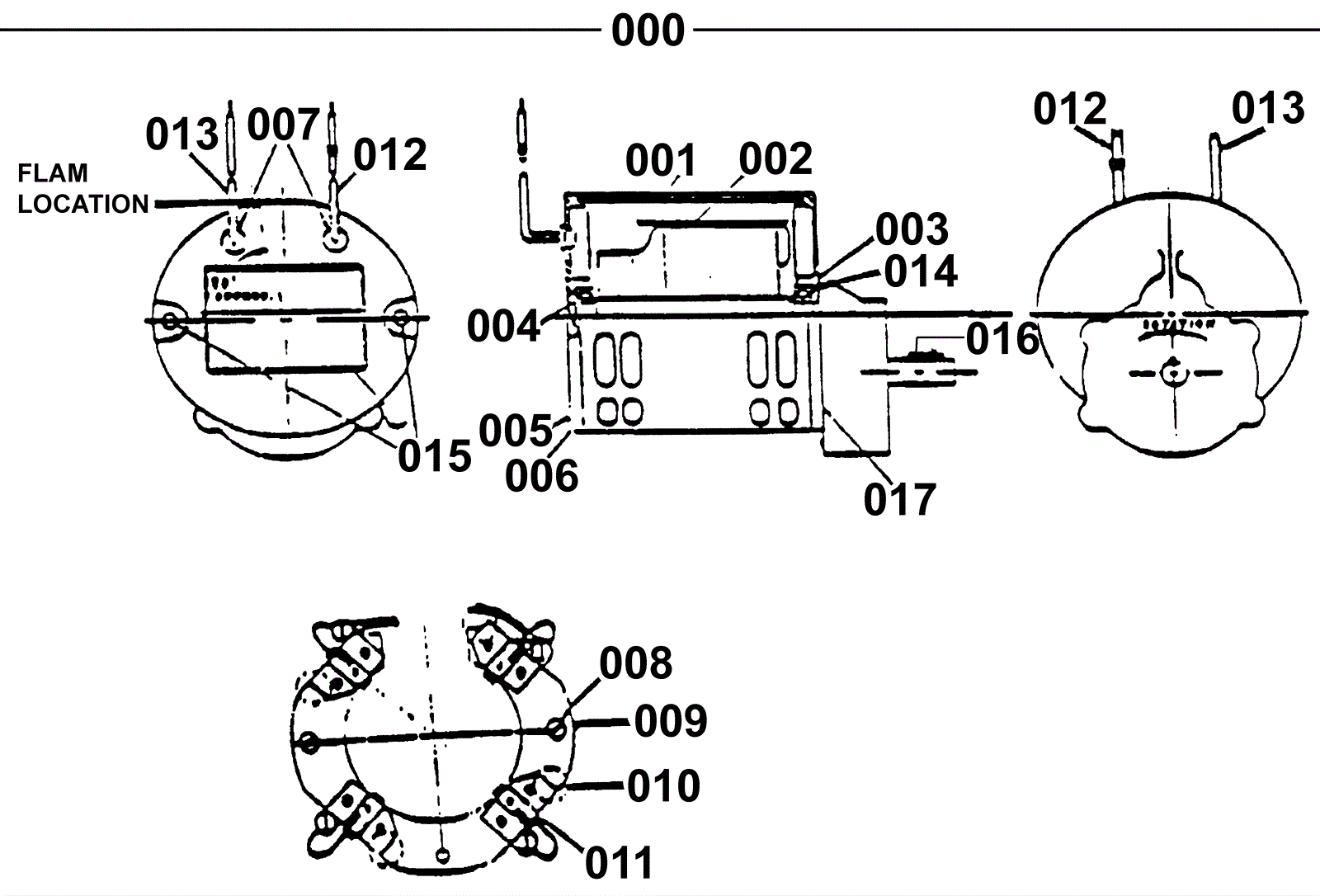

# | Part | Description | Price | Req | Notes | Availability |
000 |
991-2121
|
24V .75HP brush motor assembly with gear box |
$416.75
|
1 |
Includes 001-017 |
usually ships 5-16 days |
001 |
170-0316
|
Stator frame assembly (OBSOLETE) |
$432.00
|
1 |
With magnets and clips |
usually ships 1-5 days |
002 |
170-1414
|
Armature assembly (OBSOLETE) |
$712.32
|
1 |
Bottom end and front end |
usually ships 1-5 days |
003 |
170-0320
|
Bottom bearing |
$26.61
|
1 |
|
usually ships 4-15 days |
004 |
170-0321
|
Front end bearing |
$19.58
|
1 |
|
usually ships 4-15 days |
005 |
N/A
|
Not available |
Call for price
|
1 |
Commutator bracket assembly (with brush BRD assembly leads) |
usually ships 30-32 days |
006 |
170-0323
|
Commutator bracket (OBSOLETE) |
$58.97
|
1 |
|
usually ships 1-5 days |
007 |
170-0324
|
Strain relief (OBSOLETE) |
$1.69
|
1 |
|
usually ships 1-5 days |
008 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
$0.90
|
2 |
|
ships same day |
009 |
170-0325
|
Brush board assembly (OBSOLETE) |
$215.50
|
2 |
With springs and brushes |
usually ships 6-18 days |
010 |
372-1685
|
Springs |
$34.08
|
1 |
|
usually ships 4-15 days |
011 |
372-1648
|
Carbon brush assembly |
$36.77
|
4 |
|
usually ships 6-18 days |
012 |
170-0328
|
Positive lead assembly (OBSOLETE) |
$37.58
|
4 |
|
usually ships 1-5 days |
013 |
170-0329
|
Negative lead assembly (OBSOLETE) |
$37.58
|
1 |
|
usually ships 1-5 days |
014 |
170-0330
|
Washer helical (OBSOLETE) |
$5.00
|
1 |
|
usually ships 1-5 days |
015 |
164-1157
|
Bolt 1/4-20 x 7 3/4 thru |
$2.16
|
2 |
|
ships same day |
016 |
991-2121
|
24V .75HP brush motor assembly with gear box |
$416.75
|
1 |
|
usually ships 5-16 days |
017 |
996-0813
|
Medium grit scrubbing brush - 180 grit |
$283.30
|
1 |
"S" clutch |
usually ships 1-5 days |
