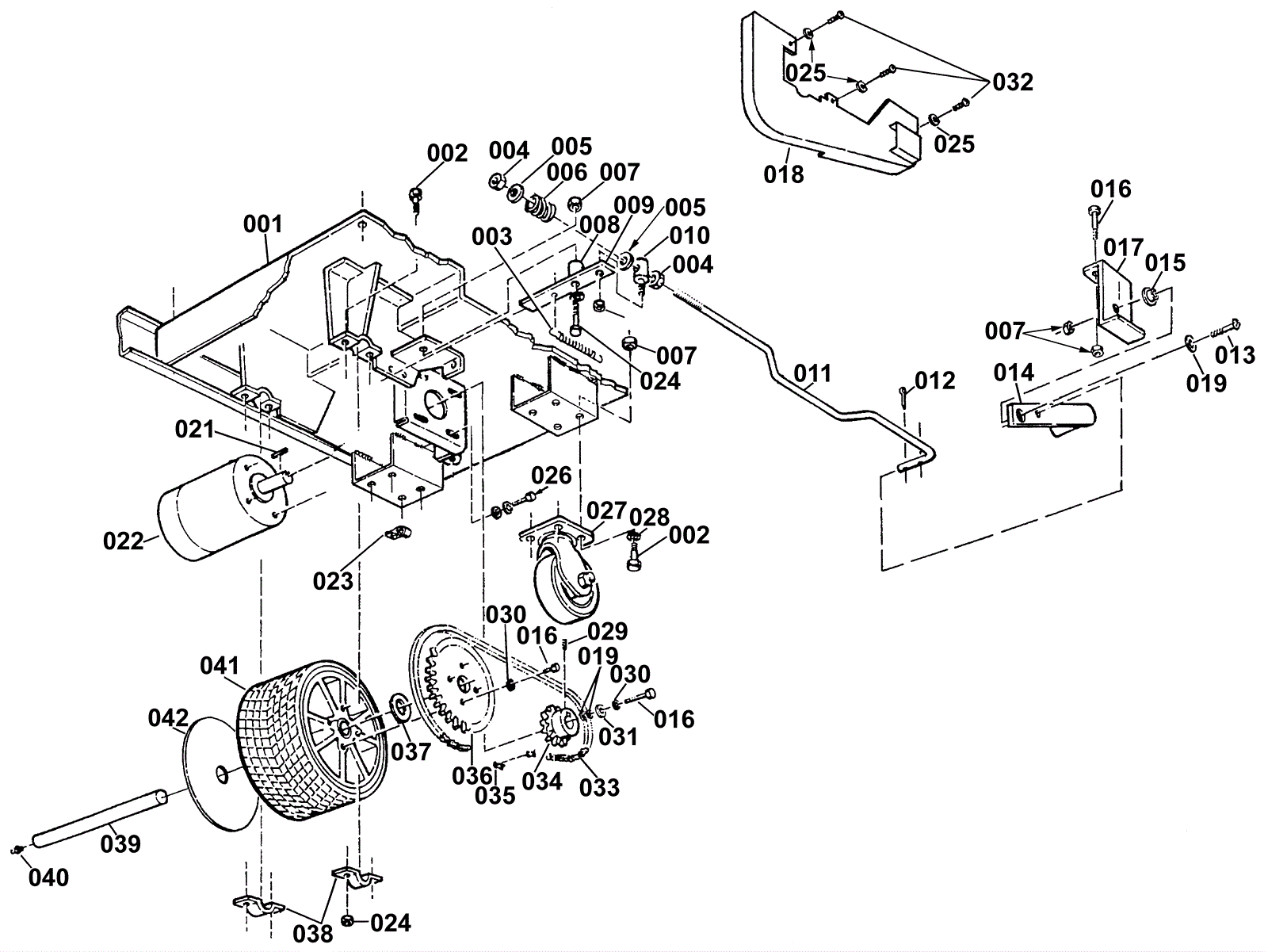

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1913
|
Main frame weldment (OBSOLETE) |
1 |
|
|
002 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
12 |
|
|
003 |
170-0127
|
Brake spring |
1 |
|
|
004 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
|
005 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
006 |
170-0113
|
Spring (OBSOLETE) |
1 |
|
|
007 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
|
008 |
170-0128
|
Brake arm spacer (OBSOLETE) |
1 |
|
|
009 |
170-0129
|
Brake arm (OBSOLETE) |
1 |
|
|
010 |
170-2071
|
Swivel brake rod (OBSOLETE) |
1 |
|
|
011 |
170-2072
|
Brake rod (OBSOLETE) |
1 |
|
|
012 |
997-2504
|
Cotter pin 1/16 x 1/2 |
2 |
|
|
013 |
170-3357
|
Screw 5/16-18x1 1/4 hex head |
1 |
|
|
014 |
170-0132
|
Brake lever (OBSOLETE) |
1 |
|
|
015 |
170-0133
|
Brake pedal spacer (OBSOLETE) |
1 |
|
|
016 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
5 |
|
|
017 |
170-0134
|
Brake pedal bracket (OBSOLETE) |
1 |
|
|
018 |
170-2073
|
Gaurd (OBSOLETE) |
1 |
|
|
019 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
020 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
1 |
|
|
021 |
164-0132
|
Square keyway 1/4 x 1/4 |
1 |
|
|
022 |
170-1654
|
Transverse motor (OBSOLETE) |
1 |
|
|
023 |
170-0457
|
Strap (OBSOLETE) |
1 |
|
|
024 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
12 |
|
|
025 |
999-0060
|
Washer 1/4 split lock plain finish |
7 |
|
|
026 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
027a |
991-2011
|
Caster wheel assembly |
2 |
|
|
027b |
170-7201
|
Caster wheel |
|
|
|
028 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
8 |
|
|
029 |
999-0095
|
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
2 |
|
|
030 |
999-0028
|
Washer 5/16 split lock plain finish |
5 |
|
|
031 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
032 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
3 |
|
|
033 |
991-0101
|
Chain (sold by the link) |
1 |
|
|
034a |
170-0141
|
Drive sprocket (OBSOLETE) |
1 |
|
|
034b |
991-8554
|
SPROCKET-DRIVE MOTOR 898550 |
1 |
|
|
035 |
991-0103
|
Master link |
1 |
|
|
036 |
170-0142
|
Drive sprocket |
1 |
|
|
037 |
170-0143
|
Spacer washer (OBSOLETE) |
3 |
|
|
038 |
170-0144
|
Axle strap (OBSOLETE) |
2 |
|
|
039 |
170-0015
|
Drive wheel axle shaft (OBSOLETE) |
1 |
|
|
040 |
170-0016
|
Grease fitting |
1 |
|
|
041 |
N/A
|
Not available |
1 |
(Drive wheel assembly) |
|
042 |
170-2074
|
Wheel gaurd shield (OBSOLETE) |
1 |
|
|
N/S |
170-2075
|
Parking brake label (OBSOLETE) |
1 |
Not shown |
|
