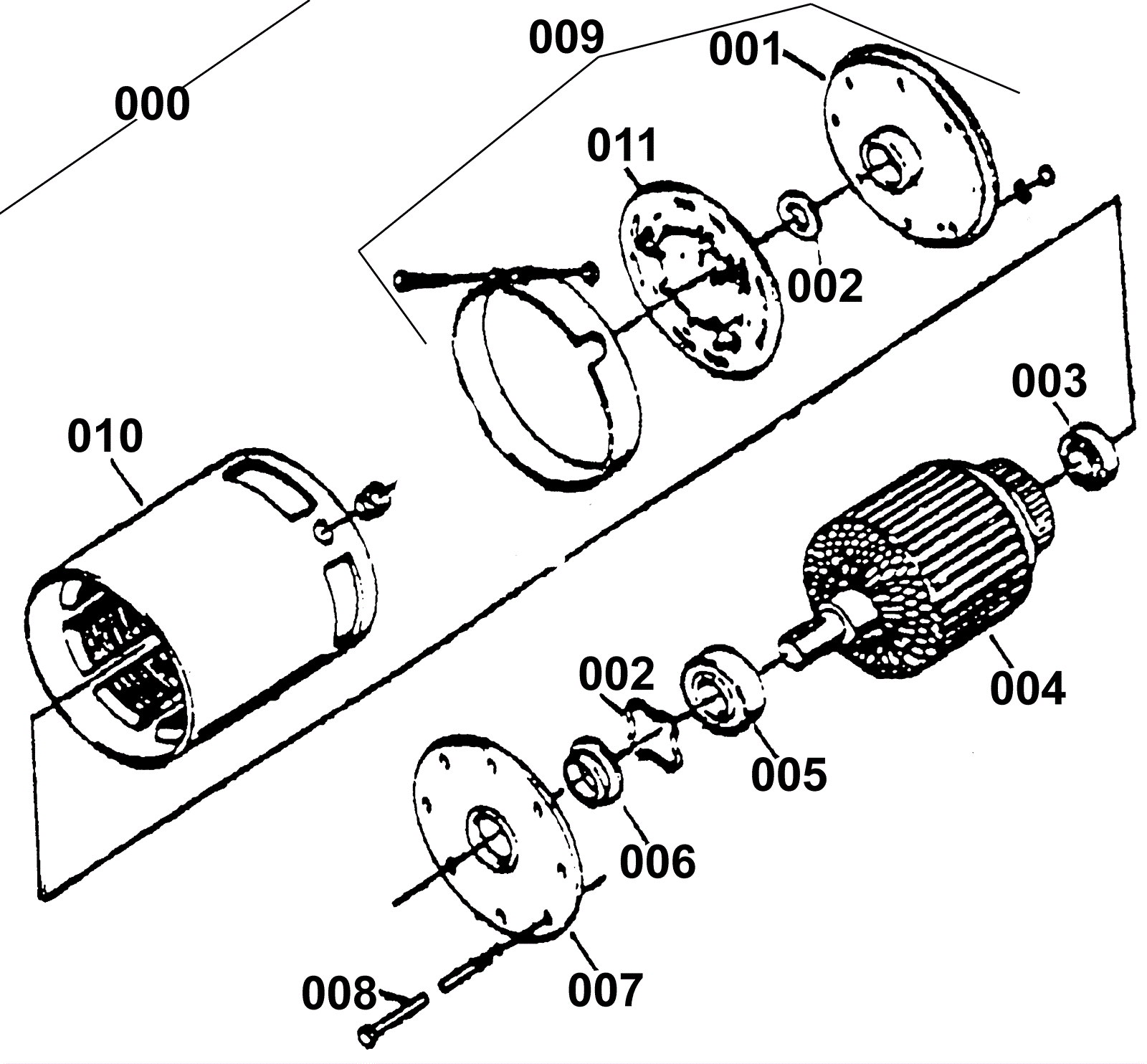

VISION V Brush Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 170-1631 Brush motor (OBSOLETE) $902.18 1 Assembly includes 001-011 usually ships 1-5 days
001 170-0417 Communicator cover bracket (OBSOLETE) $208.96 1 usually ships 1-5 days
002 170-0379 Wave washer $10.85 1 usually ships 16-41 days
003 372-1890 Bearing (rear) $44.58 1 usually ships 16-41 days
004 170-1605 Armature assembly (OBSOLETE) $1,162.49 1 usually ships 1-5 days
005 170-0321 Front end bearing $21.54 1 ships same day
006 170-0382 Oil seal $19.65 1 usually ships 1-5 days
007 170-0418 Pulley end bell bracket $238.70 1 usually ships 1-5 days
008 170-0707 Bolt 1/4-20 x 5-3/4 hex head (OBSOLETE) $5.50 2 usually ships 1-5 days
009 170-1608 Bracket assembly (OBSOLETE) Call for price 1 Assembly includes 001, 002, and 011 usually ships 1-5 days
010 170-0384 Field assembly (OBSOLETE) $560.62 1 With magnet clips usually ships 1-5 days
011a 170-1609 Brush holding assembly (OBSOLETE) $198.75 1 usually ships 1-5 days
011b 372-1685 Springs $37.49 4 usually ships 4-15 days
011c 170-0336 Carbon brush assembly (OBSOLETE) $49.73 4 usually ships 1-5 days
