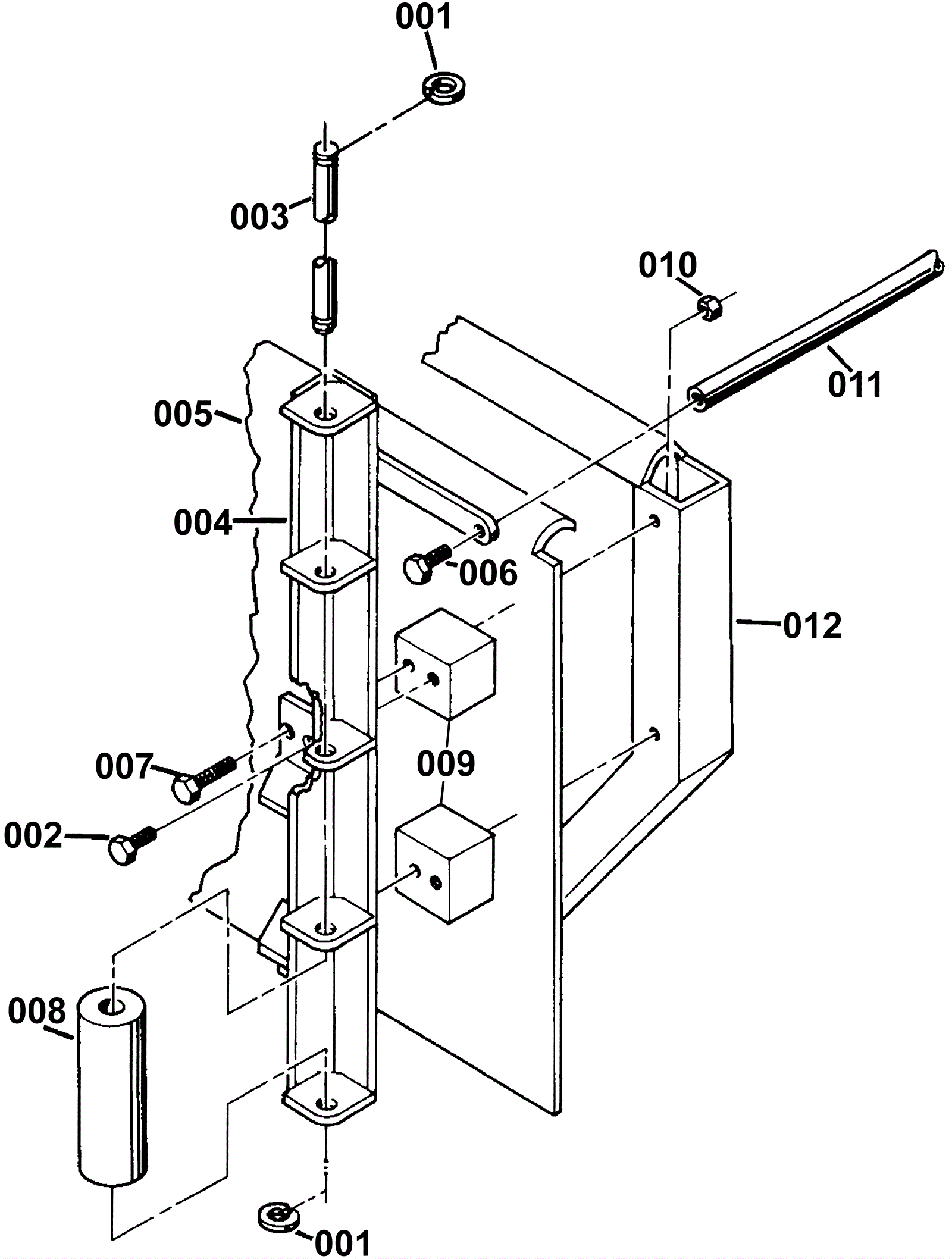

Roller Bumper Assembly

#PartDescription ReqNotesAvailability
001 N/A Not available 4 Retaining ring
002 170-5797 Bolt 5/16-18 x 1/2 hex straight cap (OBSOLETE) 4
003 N/A Not available 2 Roller shaft
004a 170-0650 Rt Roller Frame Assy (OBSOLETE) 1
004b 170-0651 Lt Roller Frame Assy (OBSOLETE) 1
005 N/A Not available 1 Right Panel
006 170-8034 Screw 8mm x 1.25 x 20 hex head (OBSOLETE) 2
007 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 4
008 N/A Not available 8 Roller
009 170-0653 Roller Spacer Assy (OBSOLETE) 4
010 170-5787 Nut M8 x 1.25 4
011 N/A Not available 1 Connecting link
012 N/A Not available 1 Frame assembly
