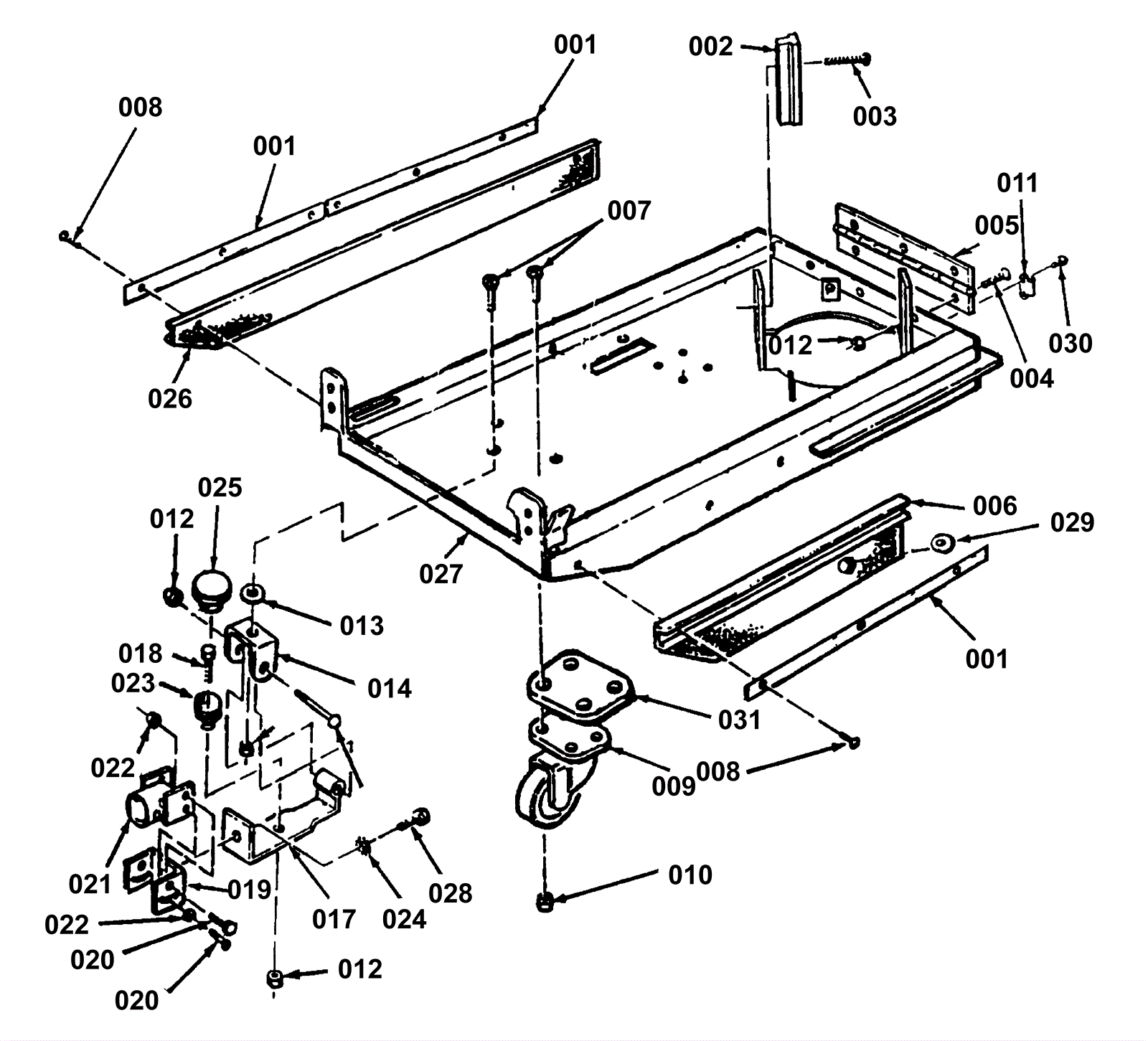

VISION 20BT Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-1694 L H Retainer (OBSOLETE) $12.72 3 usually ships 1-5 days
002 170-1695 Plastic Guide (OBSOLETE) $50.71 2 usually ships 1-5 days
003 373-3017 Screw 1/4-20 x 3/4 $11.99 7 usually ships 16-41 days
004 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 3 ships same day
005 170-1698 Hinge (OBSOLETE) $81.97 1 usually ships 1-5 days
006 170-1699 R H Skirt (OBSOLETE) $71.41 1 usually ships 1-5 days
007 170-2121 Screw 5/16-18 x 3/4 $10.52 9 usually ships 1-5 days
008 170-2122 10 24 x 3/8 ss $1.57 10 usually ships 1-5 days
009 170-2123 Swival Caster $143.59 2 usually ships 16-41 days
010 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
011 170-2124 Housing Clamp Strike (OBSOLETE) $5.50 1 usually ships 1-5 days
012 170-1686 Power wand system kit (OBSOLETE) $1,184.08 5 usually ships 1-5 days
013 170-2125 Washer (OBSOLETE) $7.65 1 usually ships 1-5 days
014 170-1759 Squeegee bracket $122.72 1 usually ships 1-5 days
015 170-2126 1/4 20 x 2 SS $12.52 1 usually ships 1-5 days
016 170-1760 Spacer $11.99 1 usually ships 1-5 days
017 170-2127 Squeegee arm weldment (OBSOLETE) $79.86 1 usually ships 1-5 days
018 170-2128 Screw 1/4 20 x 3/4 $10.52 1 usually ships 1-5 days
019 170-2129 Squeegee swivel weldment (OBSOLETE) $41.34 1 usually ships 1-5 days
020 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
021 170-2130 Squeegee bracket weldment (OBSOLETE) $59.99 1 usually ships 1-5 days
022 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
023 170-1378 Spring $22.41 1 usually ships 1-5 days
024 170-2131 Washer lock $10.52 1 usually ships 1-5 days
025 170-1379 Bushing (OBSOLETE) $35.19 1 usually ships 16-41 days
026 170-2132 L H Skirt (OBSOLETE) $90.23 1 usually ships 1-5 days
027 170-2133 Weldment Main Frame (OBSOLETE) Call for price 1 usually ships 1-5 days
028 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 1 ships same day
029 170-2134 R H Retainer (OBSOLETE) $14.85 1 usually ships 1-5 days
030 170-2135 Screw 3-32 x 1/4 (OBSOLETE) $1.86 2 usually ships 1-5 days
031 170-2136 Spacer Caster (OBSOLETE) $3.29 2 usually ships 1-5 days
N/S 170-6163 On/off switch $34.66 usually ships 16-41 days
