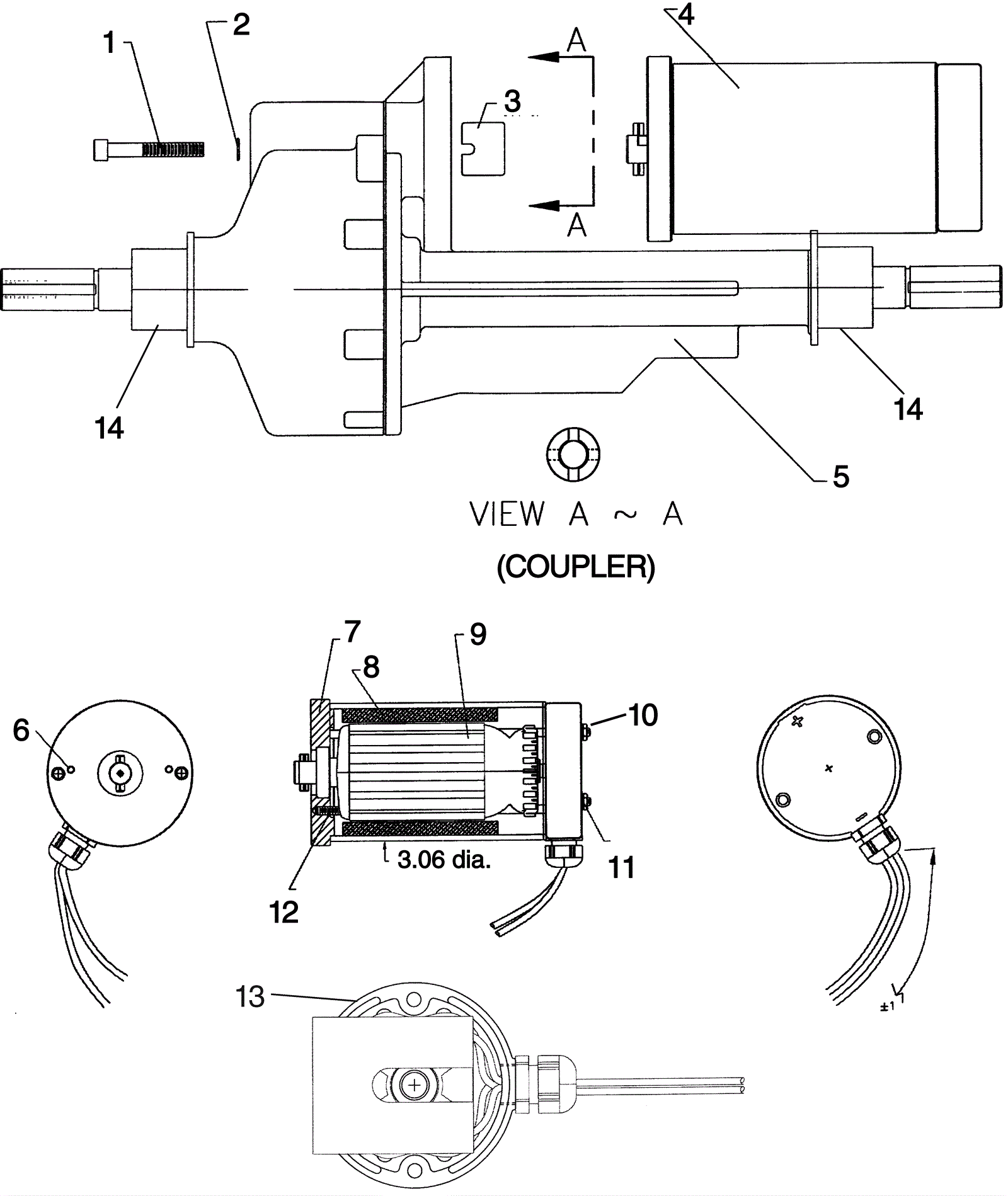

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
Call for price
|
|
(Screw) |
usually ships 3-26 days |
2 |
999-0060
|
Washer 1/4 split lock plain finish |
$0.99
|
|
|
ships same day |
3 |
170-3450
|
Coupler (OBSOLETE) |
$15.29
|
1 |
|
usually ships 1-5 days |
4 |
170-3451
|
Motor (OBSOLETE) |
$656.59
|
1 |
|
usually ships 1-5 days |
5 |
270-0840
|
Transaxle and gearbox assembly (OBSOLETE) |
$1,791.01
|
1 |
|
usually ships 1-5 days |
6 |
N/A
|
Not available |
Call for price
|
|
(Dowel pin) |
usually ships 3-26 days |
7 |
N/A
|
Not available |
Call for price
|
|
(Output end plate) |
usually ships 3-26 days |
8 |
N/A
|
Not available |
Call for price
|
|
(Magnet and housing assembly) |
usually ships 3-26 days |
9 |
N/A
|
Not available |
Call for price
|
|
(Armature and bearing assembly) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
|
(Washer) |
usually ships 3-26 days |
11 |
N/A
|
Not available |
Call for price
|
|
(Nut) |
usually ships 3-26 days |
12 |
N/A
|
Not available |
Call for price
|
|
(Stud) |
usually ships 3-26 days |
13 |
170-3452
|
Commutator end and brush assembly (OBSOLETE) |
$302.06
|
1 |
|
usually ships 1-5 days |
14 |
270-0841
|
Bushing mount |
$14.85
|
2 |
|
usually ships 17-28 days |
