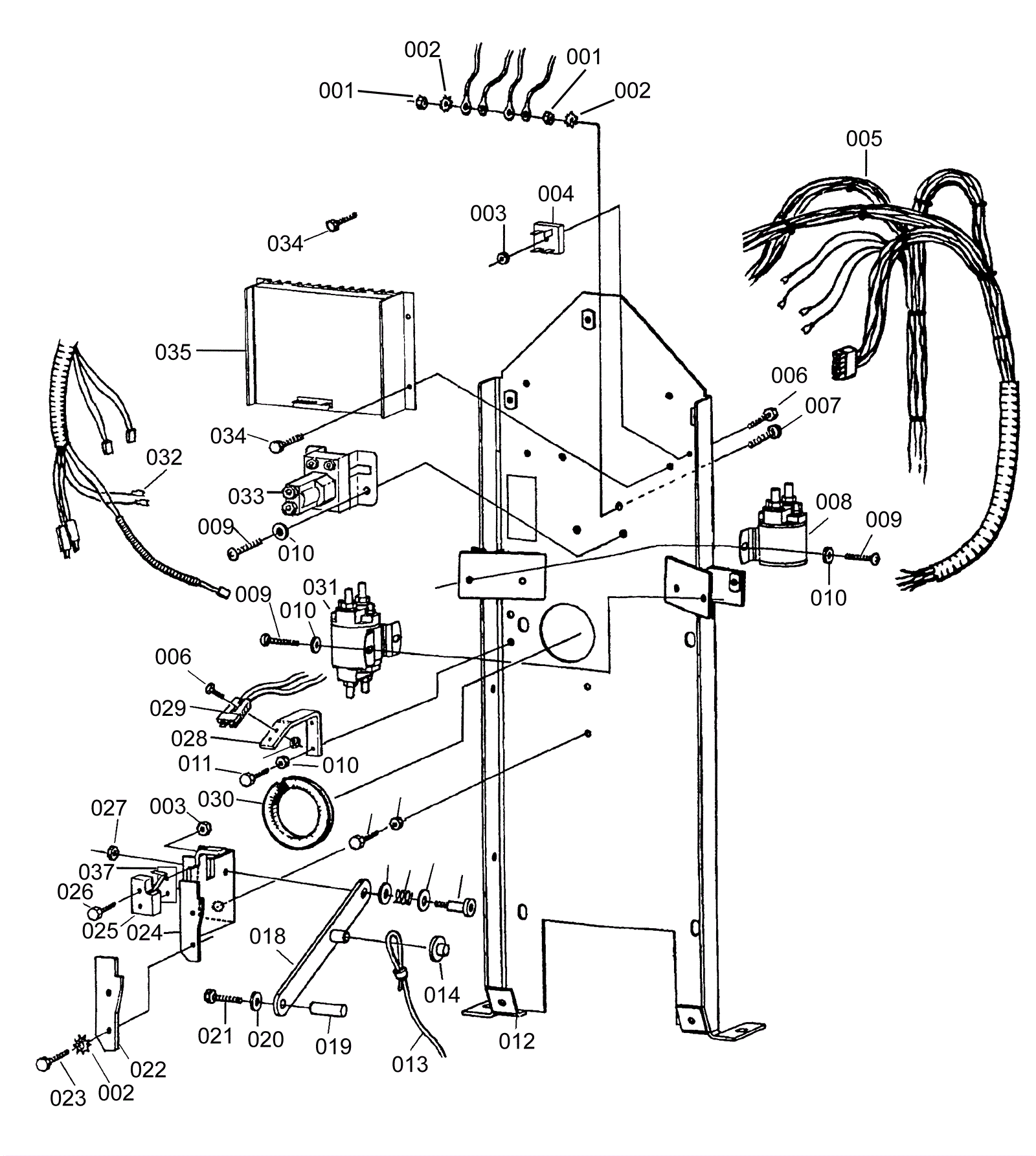

ENCORE L2426 Rear Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0460 Nut 10-32 hex $0.99 2 ships same day
002 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
003 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 5 ships same day
004 372-0079 Rectifier $52.67 1 usually ships 16-41 days
005 170-1927 Power harness inchL inch (OBSOLETE) $548.90 1 usually ships 1-5 days
006 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 3 ships same day
007 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 1 ships same day
008a 172-2163 24V solenoid 4 post (2 large 2 small) $126.03 1 ships same day
008b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 1 (NON-OEM) usually ships 6-7 days
009 999-0396 Screw 1/4-20 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
010 999-0017 Washer 1/4 external star lock $0.99 10 ships same day
011 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 4 ships same day
012 170-1928 Rear metal panel (OBSOLETE) $322.30 1 usually ships 1-5 days
013 170-1929 Squeegee lift cable (OBSOLETE) $94.53 1 usually ships 16-41 days
014 170-6076 Pal nut $10.85 1 usually ships 16-41 days
015 999-0813 Bolt 5/16-18 x 1 x 1/4-20 socket head shoulder $8.69 1 ships same day
016 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
017 170-0113 Spring (OBSOLETE) $10.56 1 usually ships 16-41 days
018 170-1805 Lift lever $68.76 1 usually ships 16-41 days
019 170-0110 Squeegee lift handle $34.23 1 usually ships 16-41 days
020 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
021 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc $0.99 1 ships same day
022 170-0121 Wear plate (OBSOLETE) $29.52 1 usually ships 16-41 days
023 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
024 170-1804 Lift bracket (OBSOLETE) $246.26 1 usually ships 16-41 days
025 170-0191 Snap switch $63.07 1 ships same day
026 999-0428 Screw 6-32 x 1 1/4 round head slotted zinc plated $0.99 2 ships same day
027 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
028 170-1930 Power connector bracket (OBSOLETE) $20.90 1 usually ships 1-5 days
029a N/A Not available Call for price 1 (Console cable assemblyl) usually ships 3-26 days
029b 170-1907 Battery cable (ring style) $95.66 1 Ring style (From battery posts to charger/machine) usually ships 16-41 days
029c 170-1749 Battery cable assembly (OBSOLETE) $246.26 1 Tapered style (From battery posts to charger/machine) usually ships 16-41 days
030 170-7070 Gasket $12.31 usually ships 16-41 days
031 170-1931 Main solenoid contactor $160.86 1 ships same day
032 170-1932 Traverse harness $150.78 1 usually ships 1-5 days
033 170-1933 Vacuum solenoid $68.46 1 usually ships 16-41 days
034 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 4 ships same day
035 170-1934 Traverse control $1,087.72 1 usually ships 16-41 days
037 170-1935 Mylar insulator (OBSOLETE) $7.52 1 usually ships 1-5 days
N/S 170-0229 Battery warning decal $16.95 1 usually ships 1-5 days
N/S 170-0230 Falling parts warning decal $16.95 1 usually ships 1-5 days
