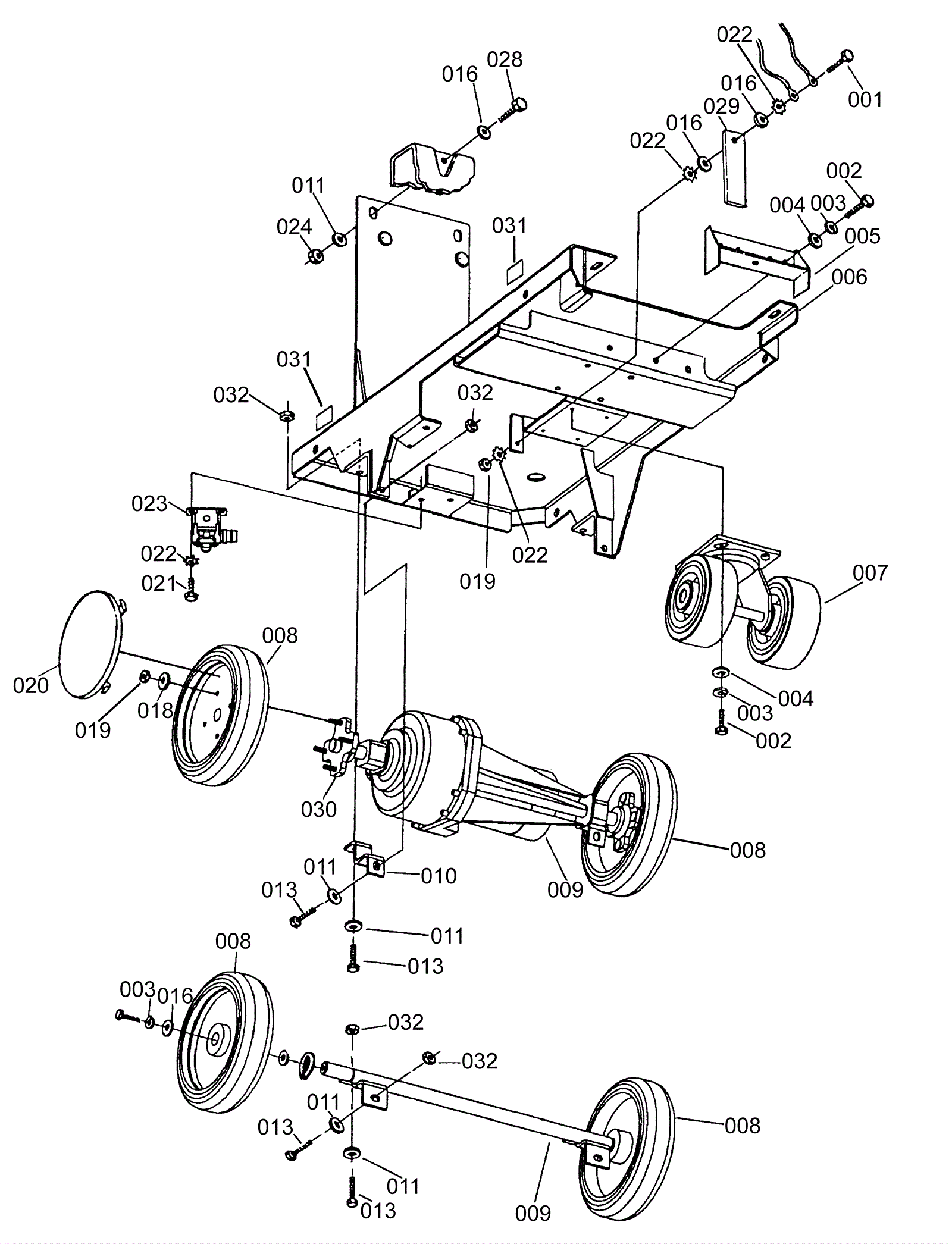

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0197
|
Screw 1/4-20 x 1 socket head alloy plain finish |
1 |
|
|
002 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
6 |
|
|
003 |
999-0028
|
Washer 5/16 split lock plain finish |
6 |
|
|
005 |
170-1916
|
Squeegee mount |
|
|
|
006 |
170-1917
|
Frame assembly (OBSOLETE) |
1 |
|
|
007 |
170-1918
|
Caster assembly |
1 |
|
|
008 |
170-1923
|
Wheel assembly (OBSOLETE) |
2 |
|
|
009 |
170-1924
|
Transaxle with mounting hubs |
1 |
|
|
010 |
170-1925
|
Transaxle mount (OBSOLETE) |
2 |
|
|
011 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
5 |
|
|
012 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
4 |
|
|
013 |
999-0850
|
Bolt 3/8-24 x 1 hex head grade 5 plain finish |
4 |
|
|
016 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
3 |
|
|
019 |
999-0609
|
Nut 1/4-20 hex stainless steel |
9 |
|
|
020 |
170-1743
|
Hub cap (OBSOLETE) |
2 |
|
|
021 |
999-0396
|
Screw 1/4-20 x 1/2 pan head slotted stainless steel |
2 |
|
|
022 |
999-0017
|
Washer 1/4 external star lock |
5 |
|
|
023 |
170-1920
|
Solenoid valve |
|
|
|
024 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
|
|
|
028 |
999-0792
|
Screw 5/16-18 x 2 flat head slotted stainess steel |
|
|
|
029 |
170-7146
|
Static strap |
1 |
|
|
030 |
170-1921
|
Transaxle hub (OBSOLETE) |
|
|
|
031 |
170-1922
|
Tie down label (OBSOLETE) |
4 |
|
|
032 |
999-0143
|
Nut 3/8-24 hex plain finish |
4 |
|
|
