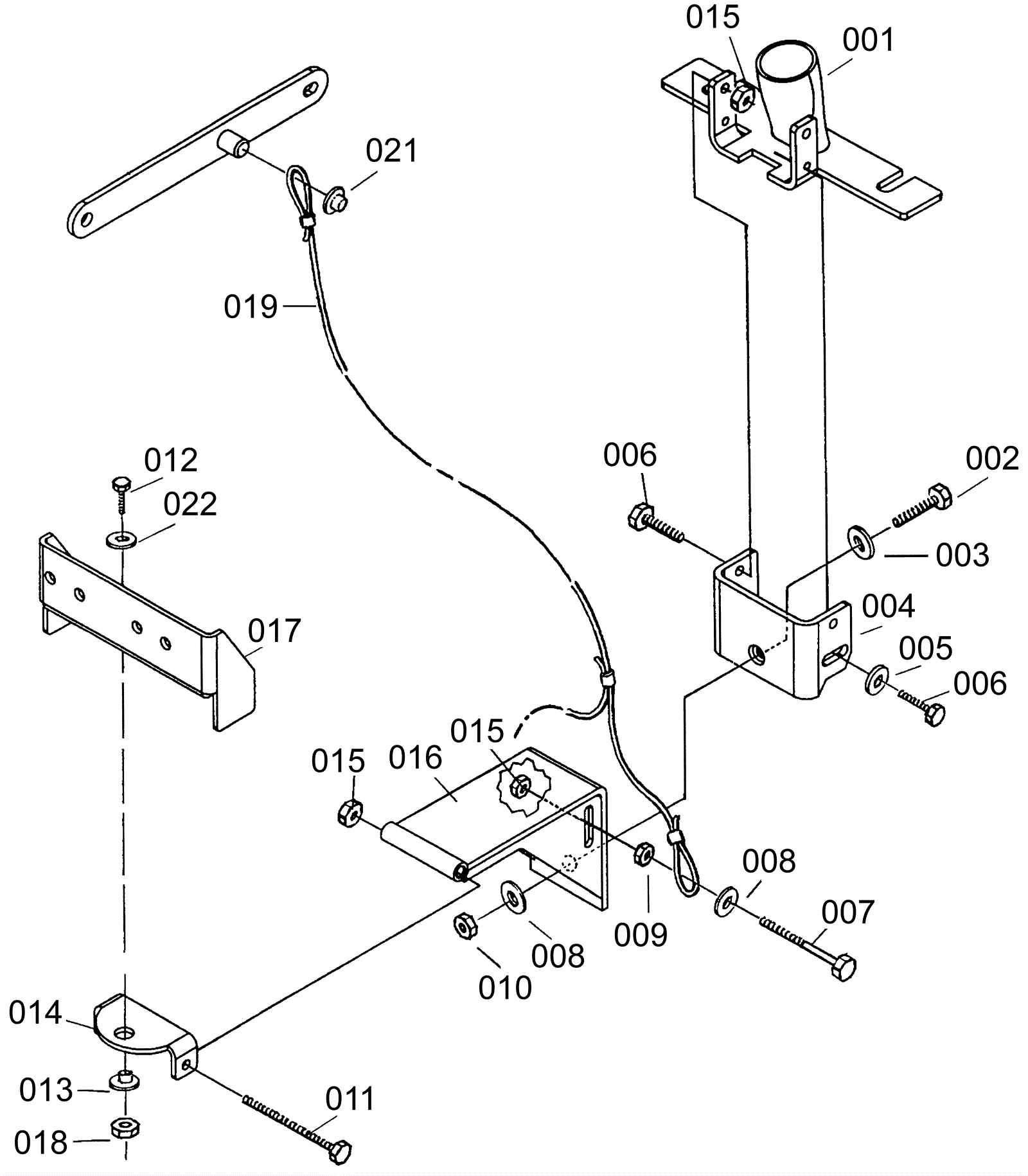

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-1847
|
Tube bracket |
1 |
|
|
002 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
|
003 |
999-0034
|
Washer 3/8 split lock plain finish |
1 |
|
|
004 |
170-1846
|
Weldment bracket |
1 |
|
|
006 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
007 |
999-0432
|
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
|
008 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
3 |
|
|
009 |
999-0190
|
Nut 1/4-20 hex plain finish |
2 |
|
|
010 |
170-1838
|
Nut 3/8-16 hex elastic lock |
1 |
|
|
011 |
999-0362
|
Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated |
1 |
|
|
012 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
013 |
170-1760
|
Spacer |
1 |
|
|
014 |
170-1956
|
Pivot arm (OBSOLETE) |
1 |
|
|
015 |
999-0190
|
Nut 1/4-20 hex plain finish |
5 |
|
|
016 |
170-1957
|
Squeegee bracket |
1 |
|
|
017 |
170-1916
|
Squeegee mount |
1 |
|
|
018 |
999-0593
|
Nut 5/16-18 hex stainless steel |
1 |
|
|
019 |
170-1929
|
Squeegee lift cable (OBSOLETE) |
1 |
|
|
021 |
170-6076
|
Pal nut |
|
|
|
