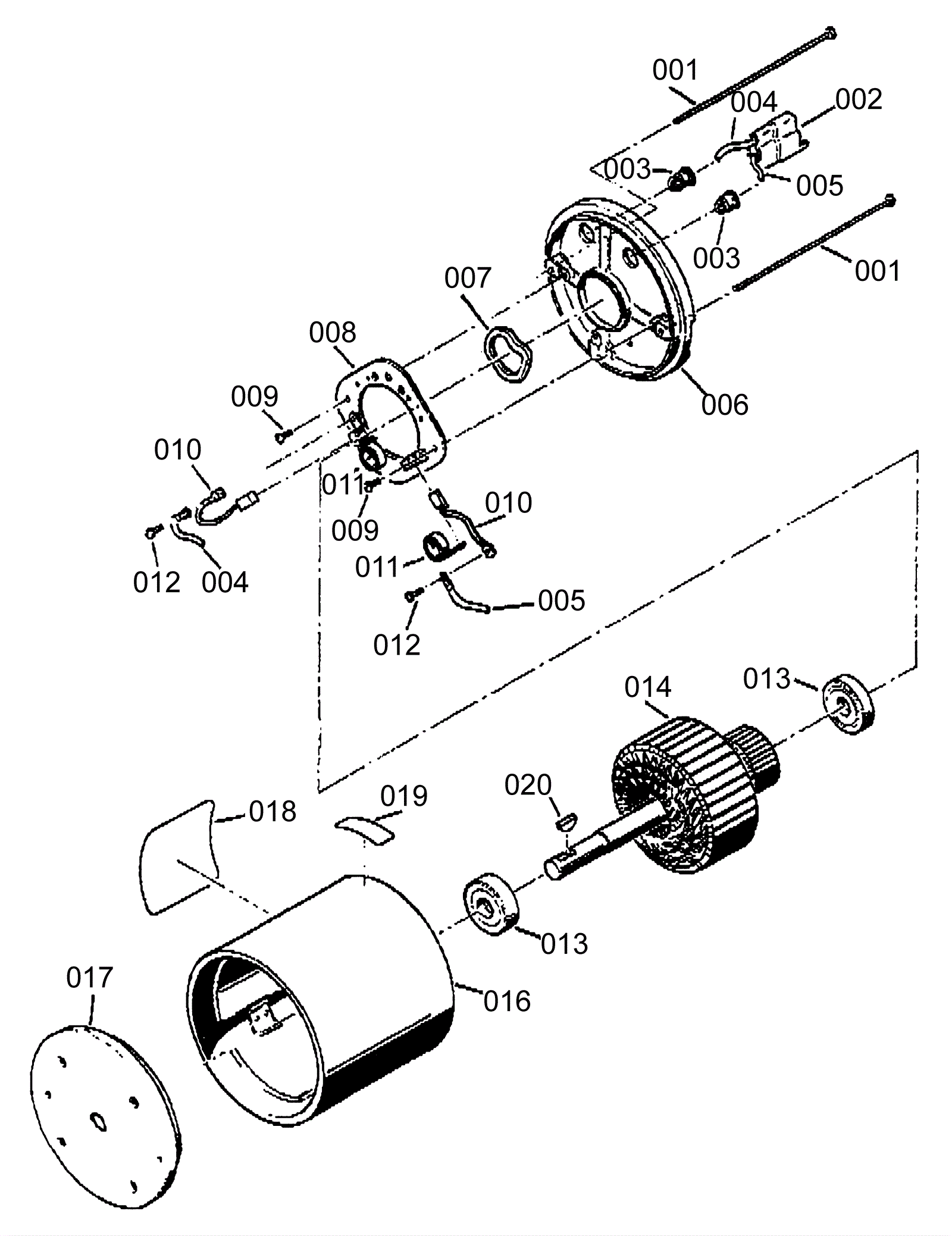

Leader 2000B Traverse Motor Drawing Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 2 Not available (thru bolt) usually ships 3-26 days
002 170-0385 Male terminal housing connector $10.52 1 usually ships 1-5 days
003 N/A Not available Call for price 2 Not available (strain relief) usually ships 3-26 days
004 170-2325 Lead assembly (OBSOLETE) Call for price 2 usually ships 1-5 days
005 170-2326 Lead assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
006 N/A Not available Call for price 1 Not available (commutator bracket) usually ships 3-26 days
007 170-0379 Wave washer $10.56 1 usually ships 16-41 days
008 170-0689 Brush board assembly (OBSOLETE) $90.76 1 usually ships 1-5 days
009 170-1504 Screw $1.21 2 usually ships 1-5 days
010 170-0686 Brush assembly (OBSOLETE) $49.73 2 usually ships 1-5 days
011 372-1685 Springs $37.49 2 usually ships 4-15 days
012 N/A Not available Call for price 2 Not available (screw) usually ships 3-26 days
013 170-0321 Front end bearing $21.54 2 ships same day
014 170-2328 Armature assembly (OBSOLETE) $731.34 1 usually ships 1-5 days
016 170-0669 Stator frame assembly (OBSOLETE) $725.87 1 usually ships 1-5 days
017 170-0685 Bracket (FSO) (OBSOLETE) $88.86 1 usually ships 1-5 days
018 N/A Not available Call for price 1 usually ships 3-26 days
019 N/A Not available Call for price 1 usually ships 3-26 days
020 170-0672 Square keyway $1.38 1 usually ships 4-15 days
