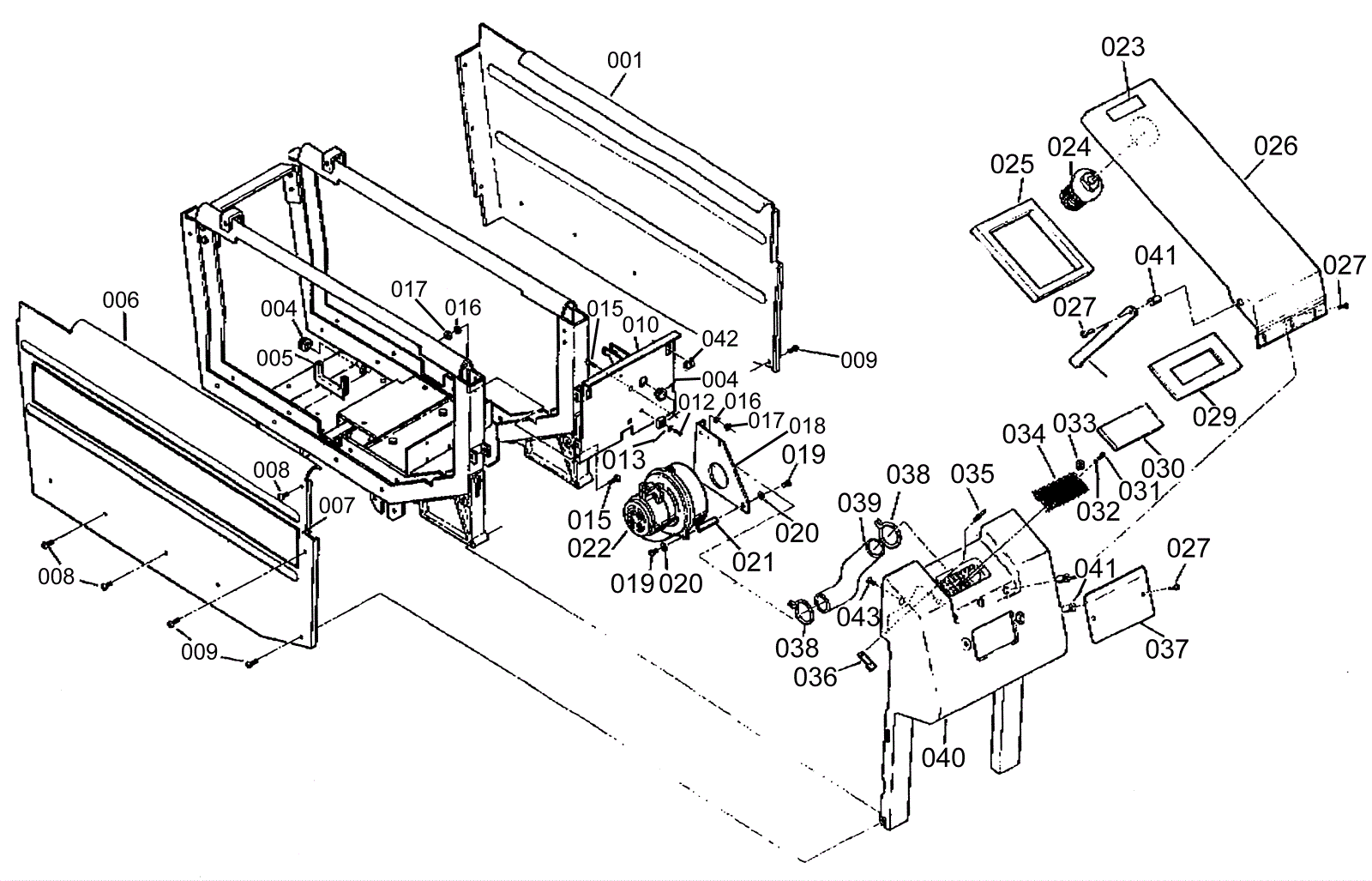

Leader 2000B Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-2257 Left hand side panel (OBSOLETE) $165.13 1 usually ships 1-5 days
004 170-2258 Grommet (OBSOLETE) Call for price 1 usually ships 1-5 days
005 170-0625 Frame trim (OBSOLETE) $4.14 1 usually ships 1-5 days
006 170-2259 Right hand side panel (OBSOLETE) $193.89 1 usually ships 1-5 days
007 170-0622 Clarke leader label (OBSOLETE) $20.20 2 usually ships 1-5 days
008 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated $0.99 10 ships same day
009 170-2128 Screw 1/4 20 x 3/4 $10.52 4 usually ships 1-5 days
010 170-2260 Actuator bracket (OBSOLETE) Call for price 1 usually ships 1-5 days
012 170-0581 Block terminal (OBSOLETE) $7.60 1 usually ships 1-5 days
013 999-0148 Washer #6 external star lock zinc plated $0.99 1 ships same day
014 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 1 ships same day
015 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 6 ships same day
016 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
017 999-0182 Nut 1/2-20 hex plain finish $0.99 6 ships same day
018 170-2262 Vacuum motor bracket (OBSOLETE) Call for price 6 usually ships 1-5 days
019 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 6 ships same day
020 999-0017 Washer 1/4 external star lock $0.99 6 ships same day
021 170-0584 Vacuum motor bracket spacer (OBSOLETE) $14.38 3 usually ships 1-5 days
022 170-6262 Vacuum motor $298.24 1 usually ships 1-5 days
023 170-2263 Lift and clean label (OBSOLETE) $8.20 1 usually ships 1-5 days
024 170-0602 Recovery float assembly (OBSOLETE) $142.81 1 usually ships 1-5 days
025 170-0599 Vacuum chamber gasket (OBSOLETE) $38.61 1 usually ships 1-5 days
026 170-0603 Vacuum chamber (FSO) (OBSOLETE) $114.64 1 usually ships 1-5 days
027 170-5784 Screw 1/4-20 x 1-1/4 pan head $10.52 6 usually ships 1-5 days
028 170-0500 Vacuum chamber brace (OBSOLETE) $5.50 1 usually ships 1-5 days
029 170-0601 Filter gasket $36.07 1 usually ships 1-5 days
030 170-0596 Vacuum motor filter $10.56 1 usually ships 16-41 days
031 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 1 ships same day
032 999-1416 Washer 7/16 flat stainless steel $0.99 1 ships same day
033 170-2264 Pad lock button Call for price 2 usually ships 1-5 days
034 170-0594 Vacuum motor intake screen (OBSOLETE) $7.96 1 usually ships 1-5 days
035 170-0775 1/8 inch rivet pop aluminum $11.99 2 usually ships 16-41 days
036 170-0592 Stop chamber brace (OBSOLETE) $21.86 1 usually ships 1-5 days
037 170-2265 Plate cover (OBSOLETE) Call for price 1 usually ships 1-5 days
039 170-0606 Vacuum tank hose $16.09 1 usually ships 1-5 days
040 170-2266 Front cover (OBSOLETE) $235.47 1 usually ships 1-5 days
042 170-2267 Nut 1/4 panel (OBSOLETE) $5.50 2 usually ships 1-5 days
043 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 2 ships same day
N/S 170-2261 Grommet Call for price 1 usually ships 1-5 days
