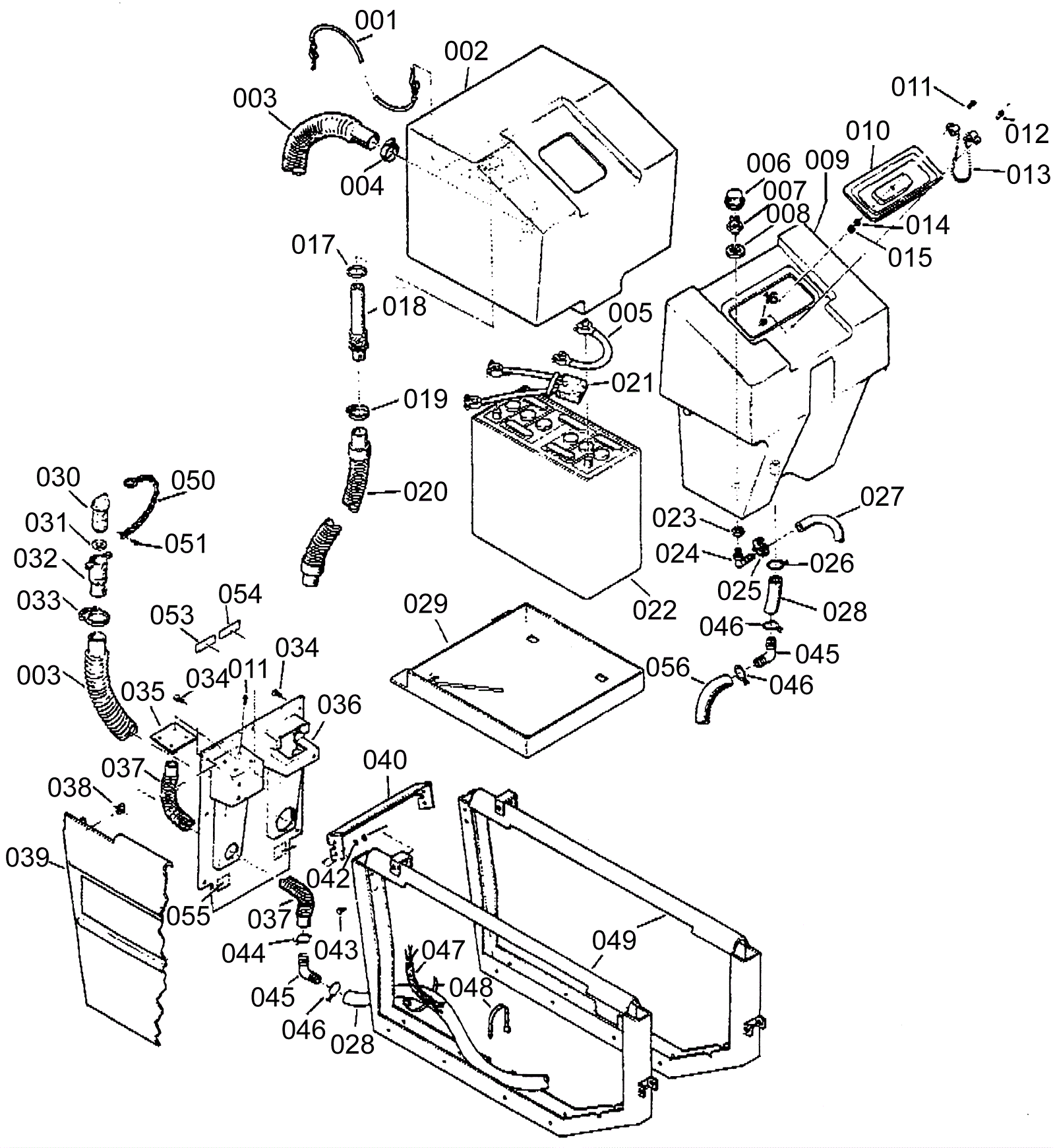

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0546
|
Tank stop cord assembly (OBSOLETE) |
1 |
|
|
002 |
170-2246
|
Recovery tank (OBSOLETE) |
1 |
|
|
003 |
170-2247
|
Drain hose (OBSOLETE) |
1 |
|
|
004 |
170-5794
|
Hose clamp (OBSOLETE) |
1 |
|
|
005 |
170-0224
|
Battery cable |
1 |
|
|
006 |
170-6192
|
Solution Tank Strainer (OBSOLETE) |
1 |
|
|
007 |
170-6193
|
Filter Adapter (OBSOLETE) |
1 |
|
|
008 |
170-6194
|
Drain Gasket |
1 |
|
|
009 |
170-2248
|
Solution tank (OBSOLETE) |
1 |
|
|
010 |
170-0613
|
Tank lid |
1 |
|
|
011 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
5 |
|
|
012 |
170-0614
|
Rivet (OBSOLETE) |
1 |
|
|
013 |
172-2474
|
8 inch chain |
1 |
|
|
014 |
170-6125
|
Washer 1/8 lock |
1 |
|
|
015 |
999-0062
|
Nut 10-24 hex |
1 |
|
|
016 |
999-1416
|
Washer 7/16 flat stainless steel |
1 |
|
|
017 |
170-0273
|
O-ring |
1 |
|
|
018 |
170-0271
|
Hose adaptor assembly (OBSOLETE) |
1 |
|
|
020 |
170-0007
|
Squeegee hose with cuffs |
1 |
|
|
021 |
170-6257
|
Battery cable assy (OBSOLETE) |
1 |
|
|
023 |
999-0752
|
Nut 3/4-16 hex jam zinc plated |
1 |
|
|
024 |
170-6093
|
1/4 elbow (OBSOLETE) |
1 |
|
|
025 |
170-2249
|
Hose clamp (OBSOLETE) |
1 |
|
|
026 |
170-0631
|
Clamp hose (OBSOLETE) |
1 |
|
|
027 |
170-2250
|
Hose (OBSOLETE) |
1 |
|
|
028 |
170-0624
|
Elbow hose (OBSOLETE) |
1 |
|
|
029 |
170-2251
|
Battery tray (OBSOLETE) |
1 |
|
|
030 |
170-0042
|
Drain valve handle |
1 |
|
|
031 |
170-0032
|
Drain valve gasket |
1 |
|
|
032 |
170-0043
|
Drain valve |
1 |
|
|
033 |
164-0218
|
Nylon hose clamp |
1 |
|
|
034 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
|
035 |
170-6261
|
Solution drain plug (OBSOLETE) |
1 |
|
|
036 |
170-2252
|
Rear cover (OBSOLETE) |
1 |
|
|
037 |
170-0632
|
Solution tank to elbow hose |
1 |
|
|
038 |
170-0462
|
Nut 1/4-20 speed (OBSOLETE) |
5 |
|
|
040 |
170-2254
|
Hinge mtg. bracket (OBSOLETE) |
1 |
|
|
041 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
042 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
043 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
044 |
997-2004
|
Hose clamp |
1 |
|
|
045 |
572-3946
|
5/8 inch elbow |
2 |
|
|
046 |
997-2004
|
Hose clamp |
3 |
|
|
047 |
170-2255
|
Machine wiring harness (OBSOLETE) |
1 |
|
|
048 |
170-0080
|
Wire tie |
2 |
|
|
049 |
170-0420
|
Main frame assembly (OBSOLETE) |
2 |
|
|
050 |
170-0558
|
Drain chain assembly |
1 |
|
|
051 |
999-0576
|
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
1 |
|
|
052 |
170-0555
|
Parking brake label (FSO) (OBSOLETE) |
1 |
|
|
053 |
N/A
|
Not available |
1 |
Solution drain label |
|
054 |
170-0563
|
Recovery drain label (OBSOLETE) |
1 |
|
|
055 |
170-0566
|
Squeegee label (OBSOLETE) |
1 |
|
|
056 |
170-2256
|
Hose (OBSOLETE) |
1 |
|
|
022 |
162-0002
|
12V 185Ah wet battery (SNSR) |
2 |
|
|
022 |
162-0047
|
12V 215Ah AGM battery (Group J185) (SNSR) |
2 |
|
|
