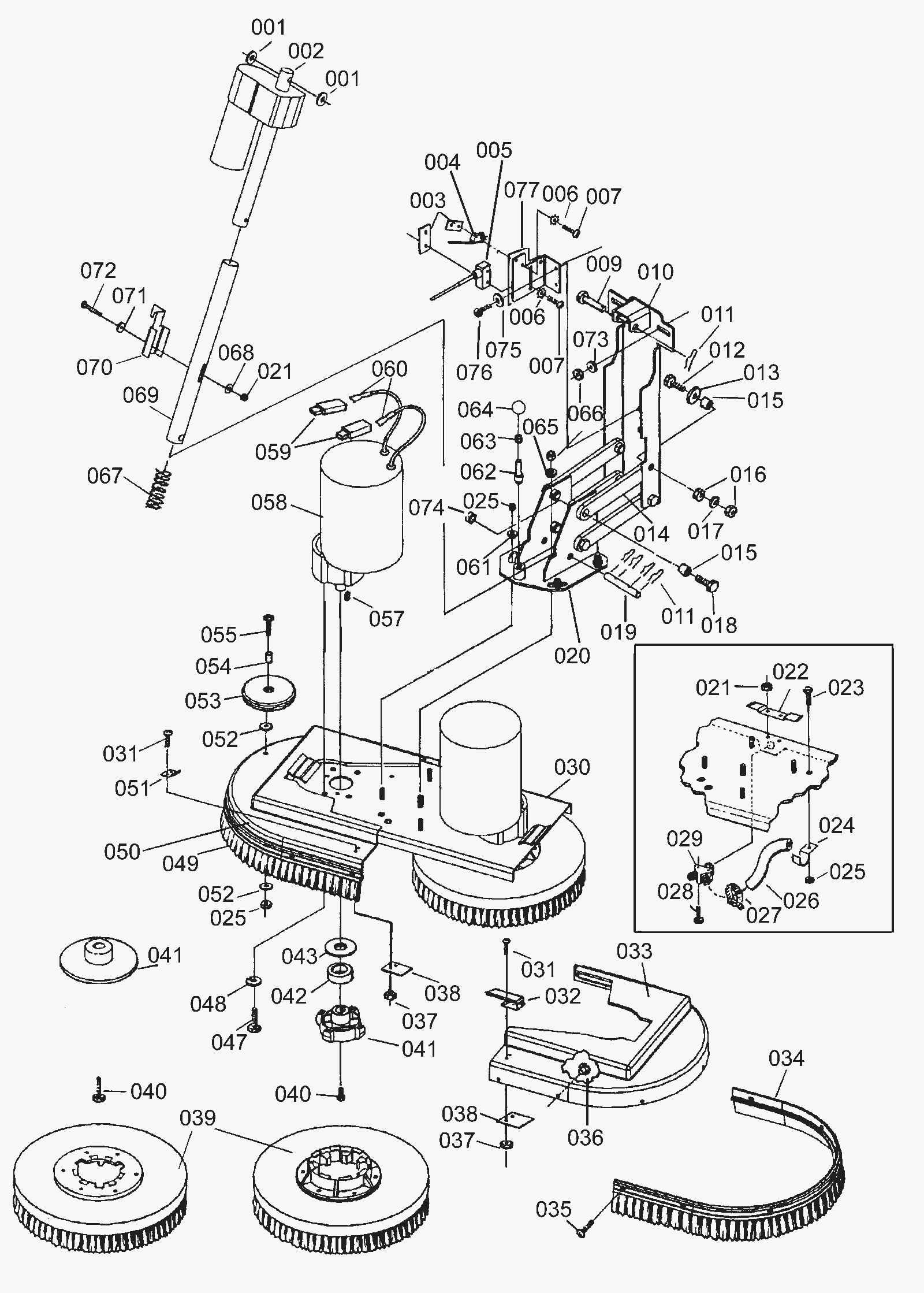

Brush Head Assembly

#PartDescription ReqNotesAvailability
001 170-0213 Nylon washer 2
002 170-1852 Actuator 1
003 170-1853 Plate 2
004 170-0191 Snap switch 1
005 170-7005 Switch (OBSOLETE) 1
006 999-0412 Washer #8 SAE flat 4
007 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 4
008 170-1854 Switch mount (OBSOLETE) 1
009 170-0196 Clevis pin 1
010 170-1855 Brush head bracket (OBSOLETE) 1
011 997-2516 Cotter pin 5
012 999-0711 Bolt 1/2-20 x 1 1/2 hex head grade 5 zinc plated 4
013 170-0705 Washer 1/2 x 3/64 4 Used only as required to square up item 14 to the frame
014 170-1856 Linkage bar 4
015 170-0212 Flanged bearing 8
016 999-0714 Nut 1/2-20 hex jam stainless steel 8
017 999-0126 Washer 1/2 split lock 4
018 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 4
019 170-1857 Brush lift pin 1
020 170-1858 Brush head mount 1
021 999-0609 Nut 1/4-20 hex stainless steel 3
022 170-1859 Brush housing bracket (OBSOLETE) 1
023 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
024 170-0198 Hose clamp 2
025 999-0190 Nut 1/4-20 hex plain finish 7
026 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) 2
027 997-2002 Hose clamp #6 2
028 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 2
029 170-7013 Solution splitter
030 170-1860 Brush head plate (OBSOLETE) 1
031 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4
032 170-7019 Brush deck latch 1
033 170-1861 Left brush housing 1
034 170-1862 Left skirt 1
035 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 12
036 170-7027 T-nut 10-32 12
037 999-0357 Nut 8-32 nylon insert lock stainless steel 4
038 170-1863 Latch brush plate 2
039 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
040 170-1599 Screw 5/16-18 x 3/4 socket head nylock 2
041a 170-0207 Male gimbal with collar 2
041b 170-0207 Male gimbal with collar
042 170-0233 Brush driver collar - See pop-up (OBSOLETE) 2
043 170-0706 Washer 3/4 rubber 2
047 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 8
048 999-0034 Washer 3/8 split lock plain finish 8
049 170-1864 Right skirt 1
050 170-1865 Right brush housing (OBSOLETE) 1
051 170-7029 Keeper 1
052 170-1395 Fender washer 2
053 170-7172 4 inch guide wheel 1
054 170-1866 Sleeve guide wheel 1
055 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 1
057 164-0132 Square keyway 1/4 x 1/4 2
058 991-2121 24V .75HP brush motor assembly with gear box 2 use for the L2426
059 170-0009 Connector housing 4 4 req for brush motors, and 4 for the control panel
060 170-0218 Contact pins for charger plug (sold individually) 4
061 170-1867 Swivel bushing 1/4 4
062 170-1868 Plunger pin (OBSOLETE) 1
063 170-1869 Plunger spring 1
064 170-1870 Knob 1
065 170-1871 Swivel bushing 3/8 (OBSOLETE) 1
066 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
067 170-7008 Pressure spring 1
068 999-0016 Washer 1/4 flat plain finish 1
069 170-1872 Head pressure tube 1
070 170-1873 Head pressure tube 1
071 999-0016 Washer 1/4 flat plain finish 1
072 999-1064 Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated 1
073 999-0617 Washer 3/8 x 1 flat stainless steel
074 999-0842 Nut 1/2-20 nylon insert lock zinc plated 4
075 999-0311 Washer #10 external star lock zinc plated 2
076 999-0849 Screw 10-24 x 1/2 round head slotted nylon 2
077 170-1874 Mylar insulator (OBSOLETE) 1
N/S 170-0226 Moving warning decal 2
