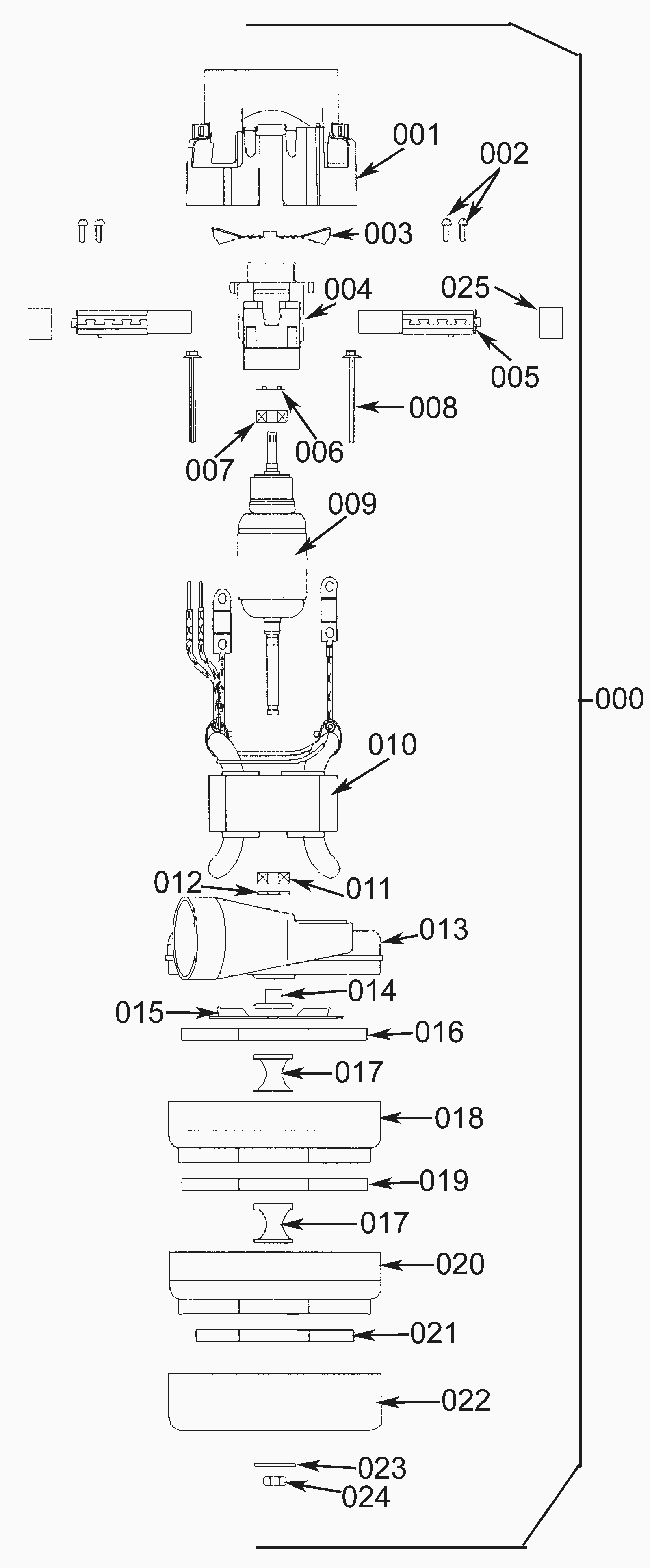

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
991-1210
|
24V 3 stage vacuum motor tangential |
1 |
3 stage |
|
000b |
272-5294
|
24V vacuum motor |
1 |
2 stage (optional) |
|
001 |
170-1958
|
Housing (OBSOLETE) |
1 |
|
|
002 |
N/A
|
Not available |
4 |
Not available (Screw) |
|
003 |
170-1959
|
Fan (OBSOLETE) |
1 |
|
|
004 |
N/A
|
Not available |
1 |
Not available (Comm end bracket) |
|
005a |
170-1960
|
Carbon brush set |
2 |
|
|
005b |
991-1221
|
Carbon brush without plastic cover (pkg of 2) |
2 |
(NON-OEM) |
|
006 |
N/A
|
Not available |
1 |
Not available (Load spring) |
|
007 |
N/A
|
Not available |
1 |
Not available (Ball bearing) |
|
008 |
N/A
|
Not available |
2 |
Not available (Screw) |
|
009 |
N/A
|
Not available |
1 |
Not available (Armature) |
|
010 |
N/A
|
Not available |
1 |
Not available (Field) |
|
011 |
N/A
|
Not available |
1 |
Not available (Ball bearing) |
|
012 |
170-0363
|
Washer neoprene |
1 |
|
|
013 |
N/A
|
Not available |
1 |
Not available (Fan end bracket) |
|
014 |
N/A
|
Not available |
1 |
Not available (Spacer) |
|
015 |
170-1959
|
Fan (OBSOLETE) |
1 |
|
|
016 |
999-0042
|
Bolt 3/8-16 x 3 hex head grade 5 zinc plated |
2 |
|
|
016 |
170-0366
|
Rotating fan |
1 |
|
|
017 |
170-1961
|
Spacer (OBSOLETE) |
2 |
|
|
018 |
170-1962
|
Stationary van (OBSOLETE) |
1 |
|
|
019 |
170-1963
|
Rotating fan (OBSOLETE) |
1 |
|
|
020 |
N/A
|
Not available |
1 |
(Carbon brush assembly) |
|
021 |
170-1964
|
Rotating fan (OBSOLETE) |
1 |
|
|
022a |
170-1965
|
Fan shell (OBSOLETE) |
1 |
|
|
022b |
170-1967
|
Fan shell (OBSOLETE) |
1 |
|
|
023 |
N/A
|
Not available |
1 |
Not available (Washer) |
|
024 |
N/A
|
Not available |
1 |
Not available (Nut) |
|
025 |
170-1966
|
Insulator brush cap (OBSOLETE) |
2 |
|
|
