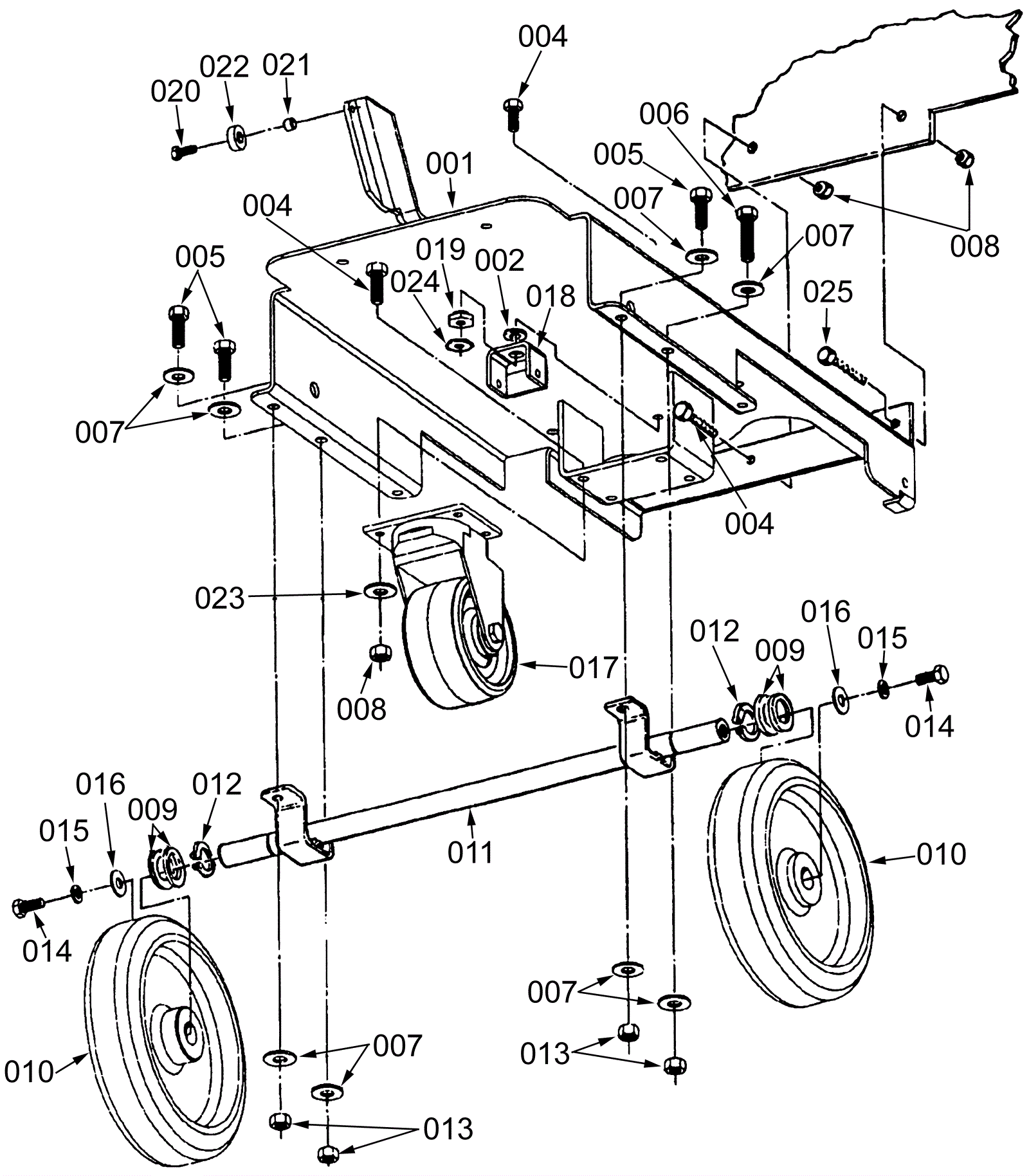

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
170-1752
|
Frame weldment |
$462.00
|
1 |
|
usually ships 1-5 days |
002 |
170-6124
|
Washer flat nylon |
$1.21
|
1 |
|
usually ships 4-15 days |
004 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
7 |
|
ships same day |
005 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
3 |
|
ships same day |
006 |
999-0107
|
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
$1.19
|
1 |
|
ships same day |
007a |
999-0032
|
Washer 3/8 USS flat plain finish |
$2.42
|
8 |
(S20) |
ships same day |
007b |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
8 |
(L20) |
ships same day |
008 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
7 |
|
ships same day |
009 |
170-1754
|
Washer M1 flat nylon |
$11.99
|
4 |
|
usually ships 16-41 days |
010 |
170-1755
|
Non-traverse wheel (OBSOLETE) |
$358.11
|
2 |
|
usually ships 16-41 days |
011 |
170-1756
|
Non-traverse axle |
$314.60
|
1 |
|
usually ships 1-5 days |
012 |
170-1324
|
Snap ring |
$9.58
|
2 |
|
usually ships 4-15 days |
013 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
014a |
999-0836
|
Screw 5/16-24 x 3/4 hex head grade 5 plain finish |
$0.99
|
2 |
(S20) |
ships same day |
014b |
999-0078
|
Screw 10-24 x 3/4 round head slotted zinc |
$0.99
|
2 |
(L20) |
ships same day |
015 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
2 |
|
ships same day |
016 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
$0.99
|
2 |
|
ships same day |
017a |
170-1758
|
Caster wheel |
$223.84
|
1 |
(OEM) |
usually ships 16-41 days |
017b |
991-8231
|
Swivel caster wheel 4 x 2 inch |
$96.12
|
1 |
(NON-OEM) |
usually ships 7-17 days |
018 |
170-1759
|
Squeegee bracket |
$122.72
|
1 |
|
usually ships 1-5 days |
019 |
170-1760
|
Spacer |
$11.99
|
1 |
|
usually ships 1-5 days |
020 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
$0.99
|
1 |
|
ships same day |
021 |
170-0117
|
Spacer |
$27.93
|
1 |
|
usually ships 1-5 days |
022 |
170-1409
|
Bushing |
$10.01
|
1 |
|
usually ships 1-5 days |
023 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
024a |
999-0593
|
Nut 5/16-18 hex stainless steel |
$0.99
|
1 |
(S20) |
ships same day |
024b |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
1 |
(L20) |
ships same day |
025a |
999-0443
|
Screw 5/16-18 x 1 1/4 round head slotted zinc plated |
$0.99
|
1 |
(S20) |
ships same day |
025b |
170-3357
|
Screw 5/16-18x1 1/4 hex head |
$7.49
|
1 |
(L20) |
usually ships 4-15 days |
