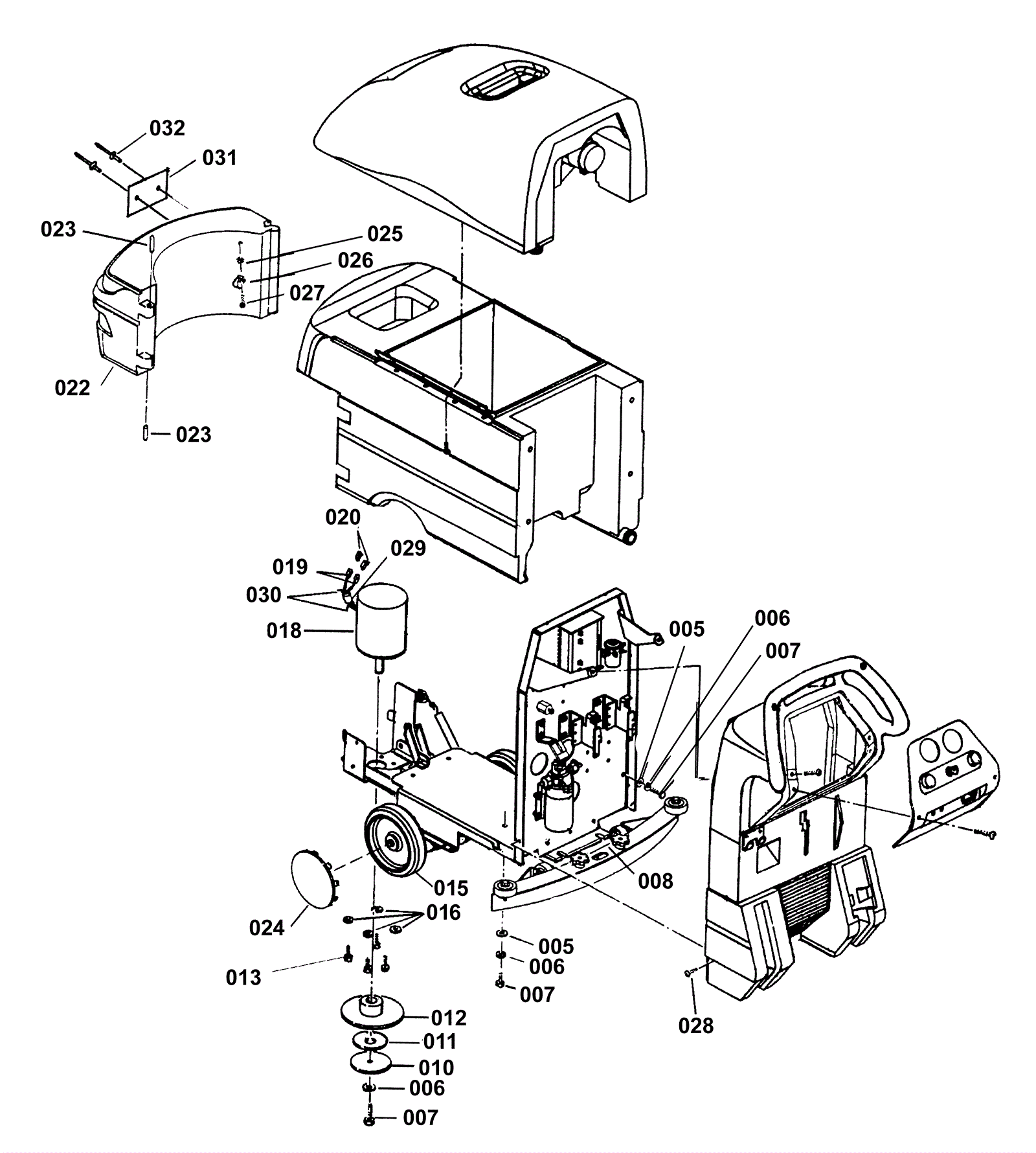

| # | Part | Description | Price | Req | Notes | Availability |
|---|
005 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
8 |
|
ships same day |
006 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
9 |
|
ships same day |
007 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
9 |
Manufacturer recommends applying loctite |
ships same day |
010 |
170-3161
|
Washer flat impellar |
$11.75
|
1 |
|
usually ships 1-5 days |
011 |
999-0630
|
Washer 3/4 SAE flat |
$0.99
|
1 |
|
ships same day |
012 |
170-1740
|
Motor adapter (OBSOLETE) |
$121.00
|
1 |
|
usually ships 16-41 days |
013 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
$1.50
|
4 |
|
ships same day |
015 |
170-1755
|
Non-traverse wheel (OBSOLETE) |
$358.11
|
2 |
|
usually ships 16-41 days |
016 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
$0.39
|
4 |
|
ships same day |
018a |
170-1420
|
24V brush gear motor assembly |
$1,640.40
|
1 |
OEM |
usually ships 16-41 days |
018b |
991-2121
|
24V .75HP brush motor assembly with gear box |
$416.75
|
1 |
(NON-OEM) |
ships same day |
019 |
170-0218
|
Contact pins for charger plug (sold individually) |
$9.02
|
2 |
|
usually ships 16-41 days |
020 |
170-0009
|
Connector housing |
$16.50
|
2 |
|
ships same day |
022 |
170-1741
|
Front cover (OBSOLETE) |
$363.00
|
1 |
|
usually ships 16-41 days |
023 |
170-1742
|
Nylon pin (OBSOLETE) |
$11.69
|
2 |
|
usually ships 16-41 days |
024 |
170-1743
|
Hub cap (OBSOLETE) |
$23.29
|
2 |
|
usually ships 16-41 days |
025 |
999-0311
|
Washer #10 external star lock zinc plated |
$0.99
|
1 |
|
ships same day |
026 |
170-1744
|
Nylon clip |
$7.15
|
1 |
|
usually ships 4-15 days |
027 |
170-1745
|
Screw 10 - 00 x 1/2 pan head |
$9.27
|
1 |
|
usually ships 1-5 days |
028 |
999-0415
|
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
$0.99
|
6 |
|
ships same day |
029 |
170-1747
|
Suppressor |
$11.99
|
1 |
|
usually ships 1-5 days |
030 |
170-0080
|
Wire tie |
$11.99
|
2 |
|
usually ships 16-41 days |
031 |
170-1748
|
Plate (OBSOLETE) |
$5.70
|
1 |
|
usually ships 1-5 days |
032 |
170-3005
|
Pop rivet |
$9.03
|
2 |
|
usually ships 1-5 days |
N/S |
170-1749
|
Battery cable assembly (OBSOLETE) |
$246.26
|
1 |
|
usually ships 16-41 days |
N/S |
998-0010
|
Battery jumper cable - ring type (red) |
$4.84
|
1 |
(For use with top, bolt type post batteries) |
ships same day |
N/S |
991-6025
|
Wire 4 x14.5, 3/8 ring x 3/8 ring |
$14.54
|
1 |
(NON-OEM) |
usually ships 5-16 days |
N/S |
170-1750
|
Front battery spacer |
$9.02
|
1 |
|
usually ships 1-5 days |
N/S |
170-1751
|
Side battery spacer |
$225.50
|
1 |
|
usually ships 1-5 days |
