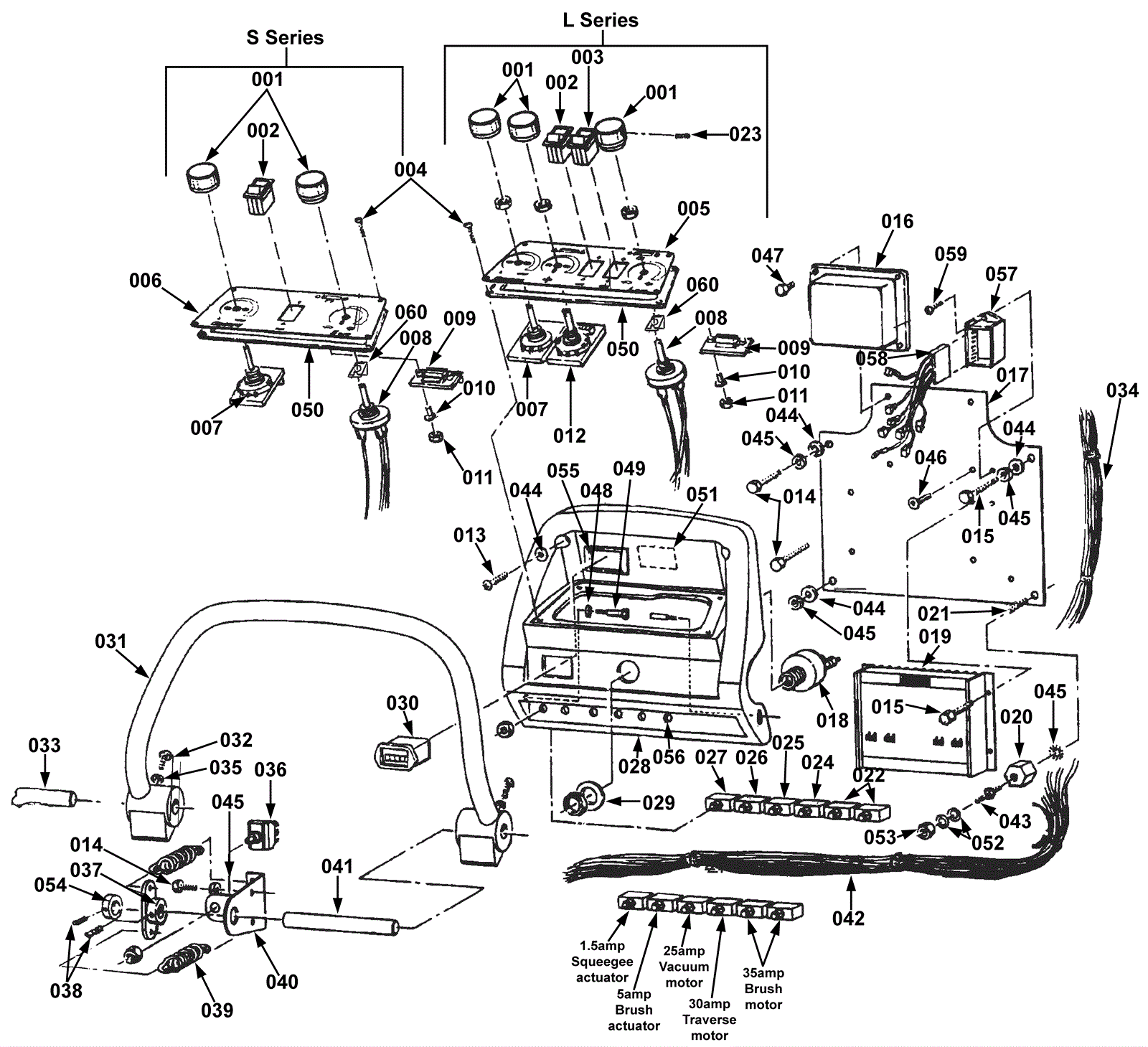

Control Housing Assembly

#PartDescription ReqNotesAvailability
001a 170-8261 Knob solution flow module (OBSOLETE) 2 (S and S-XP series)
001b 170-8261 Knob solution flow module (OBSOLETE) 3 (L series)
002 170-0058 Rocker switch 2 position 6 prong 1
003 170-0089 Rocker switch (OBSOLETE) 1 (L series)
004 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 6
005a 170-1610 Control panel decal (OBSOLETE) 1 (L series)
005b 170-1611 Control panel (OBSOLETE) 1 (L series)
006a 170-7044 Control panel decal 1 (S and S-XP series)
006b 170-7045 Control panel 1 (S and S-XP series)
007 170-7046 Solution flow module (OBSOLETE) 1
008a 270-0707 Speed control harness (OBSOLETE) 1 (L series)
008b 270-0647 Traverse harness 1 (S and S-XP series)
009 170-7178 Battery meter 1
010 170-7179 Spacer 2
011 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
012 170-1612 Pressure adjuster (OBSOLETE) 1 (L series)
013 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
014a 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 5 (L series)
014b 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2 (S and S-XP series)
015 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 4 (L series)
016 170-0717 Brush head pressure control board (OBSOLETE) 1 (L series)
017 N/A Not available 1 (Upper electrical panel, L series)
018a 170-0053 Key switch with 2 keys 1
018b 991-1635 Key
019 170-0716 Actuator control board 1 (L series)
020 170-0063 Insulated stand off 1
021 999-0715 Screw 1/4-20 x 3/4 cup point socket set alloy plain finish 1
022 991-1630 35amp circuit breaker 2 (brush motor)
023a 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 3 (L series)
023b 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 2 (S and S-XP series)
024 991-1625 30amp circuit breaker 1 (traverse motor)
025 991-1632 25amp circuit breaker 1 (vacuum motor)
026 991-1627 5amp circuit breaker 1 (brush actuator)
027 170-0087 1.5amp circuit breaker 1 (L series)
028a 170-1614 Control housing (OBSOLETE) 1 (L series)
028b 170-7182 Control housing (OBSOLETE) 1 (S and S-XP series)
029 170-7051 Washer nylon 1
030a 170-0052 Hour meter 1 (OEM)
030b 991-7137 Hour meter 1 (NON-OEM)
031 170-7052 Control handle (OBSOLETE) 1
032 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 2
033 170-7053 Left hand pin (OBSOLETE) 1
034 170-1615 Control harness actuator (OBSOLETE) 1 (L series)
035 999-0060 Washer 1/4 split lock plain finish 2
036 170-7054 Toggle switch 1
037 170-0067 Centering bracket (OBSOLETE) 1
038 999-0627 Screw 5/16-18 x 1/2 socket cup point set ss 4 (must use red loctite)
039 170-0068 Control handle spring (OBSOLETE) 2
040 170-7055 Control bracket (OBSOLETE) 1
041 170-7056 Right hand pin (OBSOLETE) 1
042a 170-1616 Main harness (OBSOLETE) 1 (L series)
042b 170-7057 Main harness (OBSOLETE) 1 (S series)
042c 170-7181 Main harness (OBSOLETE) 1 (S-XP Series)
043 170-0064 Stud 1/4-20 1
044a 999-0016 Washer 1/4 flat plain finish 2 (S and S-XP series)
044b 999-0016 Washer 1/4 flat plain finish 5 (L series)
045a 999-0060 Washer 1/4 split lock plain finish 6 (L series)
045b 999-0060 Washer 1/4 split lock plain finish 3 (S and S-XP series)
046 170-7075 Insert 8-32 8 (L series)
047 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel 4 (L series)
048 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
049 170-7036 Shoulder screw 1
050a 170-7037 Panel gasket (OBSOLETE) 1 (S and S-XP series)
050b 170-1618 Panel gasket (OBSOLETE) 1 (L series)
051a 170-1619 Control wiring decal (OBSOLETE) 1 (L series)
051b 170-7038 Control wiring decal (OBSOLETE) 1 (S and S-XP series)
052 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
053 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
054 170-0071 Collar (OBSOLETE) 1
055 170-7040 Key and hour meter retainer (OBSOLETE) 1
056 170-7041 Threaded stud 5/16 x 1/4-20 inch (OBSOLETE) 1
057 170-7180 Sequencer module 1
058 170-7043 Sequencer harness (OBSOLETE) 1
059 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2 (L series)
060 270-0708 Potentiometer retainer 1
