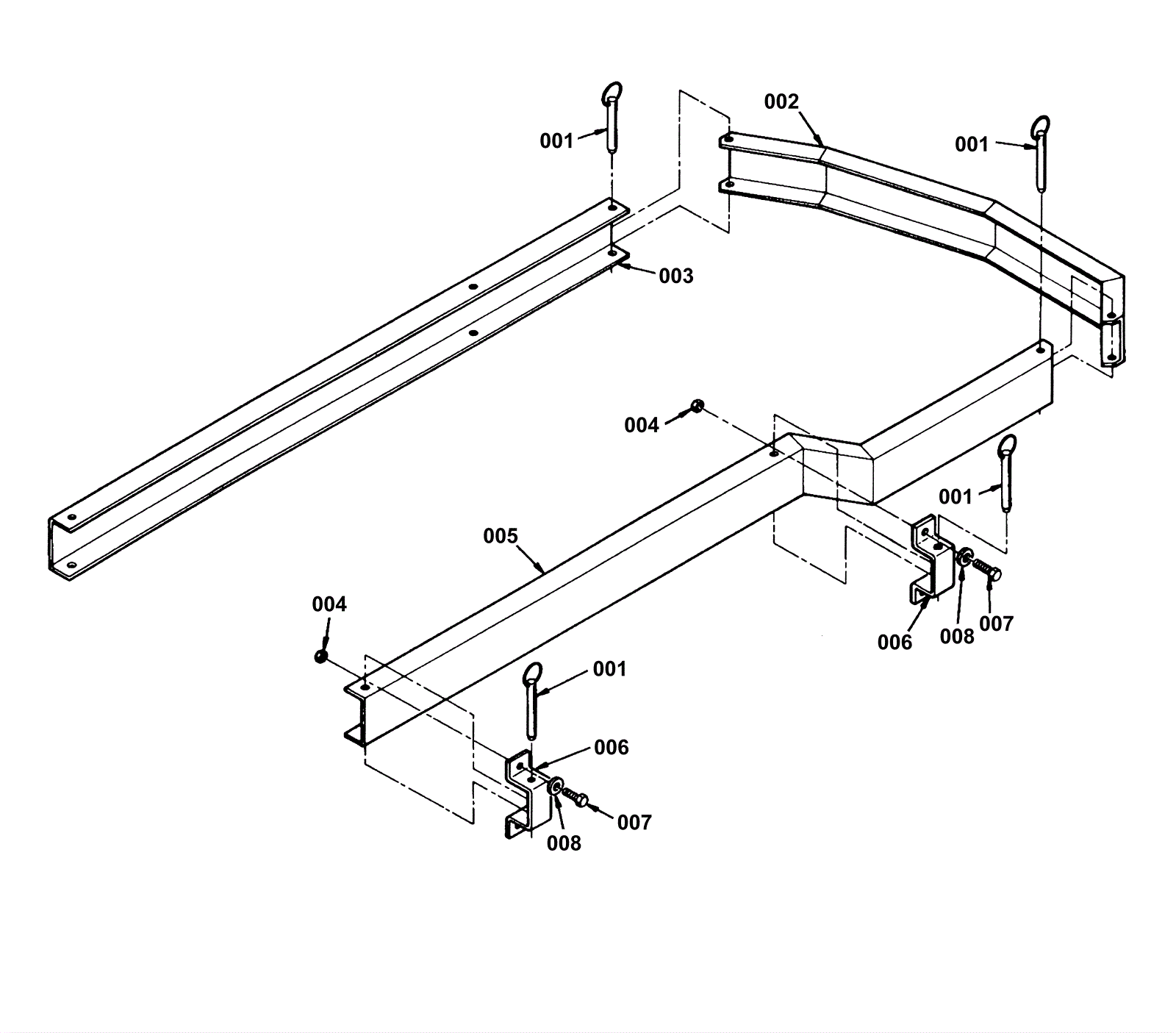

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0607
|
Pin release (OBSOLETE) |
6 |
|
|
002 |
N/A
|
Not available |
1 |
(Not Available) Rail assembly front |
|
003 |
N/A
|
Not available |
1 |
(Not Available) Rail assembly left |
|
004 |
170-5787
|
Nut M8 x 1.25 |
8 |
|
|
005 |
N/A
|
Not available |
1 |
(Not Available) Rail assembly right |
|
006 |
170-0611
|
Mounting bracket side (OBSOLETE) |
4 |
|
|
007 |
170-8034
|
Screw 8mm x 1.25 x 20 hex head (OBSOLETE) |
8 |
|
|
008 |
999-0032
|
Washer 3/8 USS flat plain finish |
8 |
|
|
