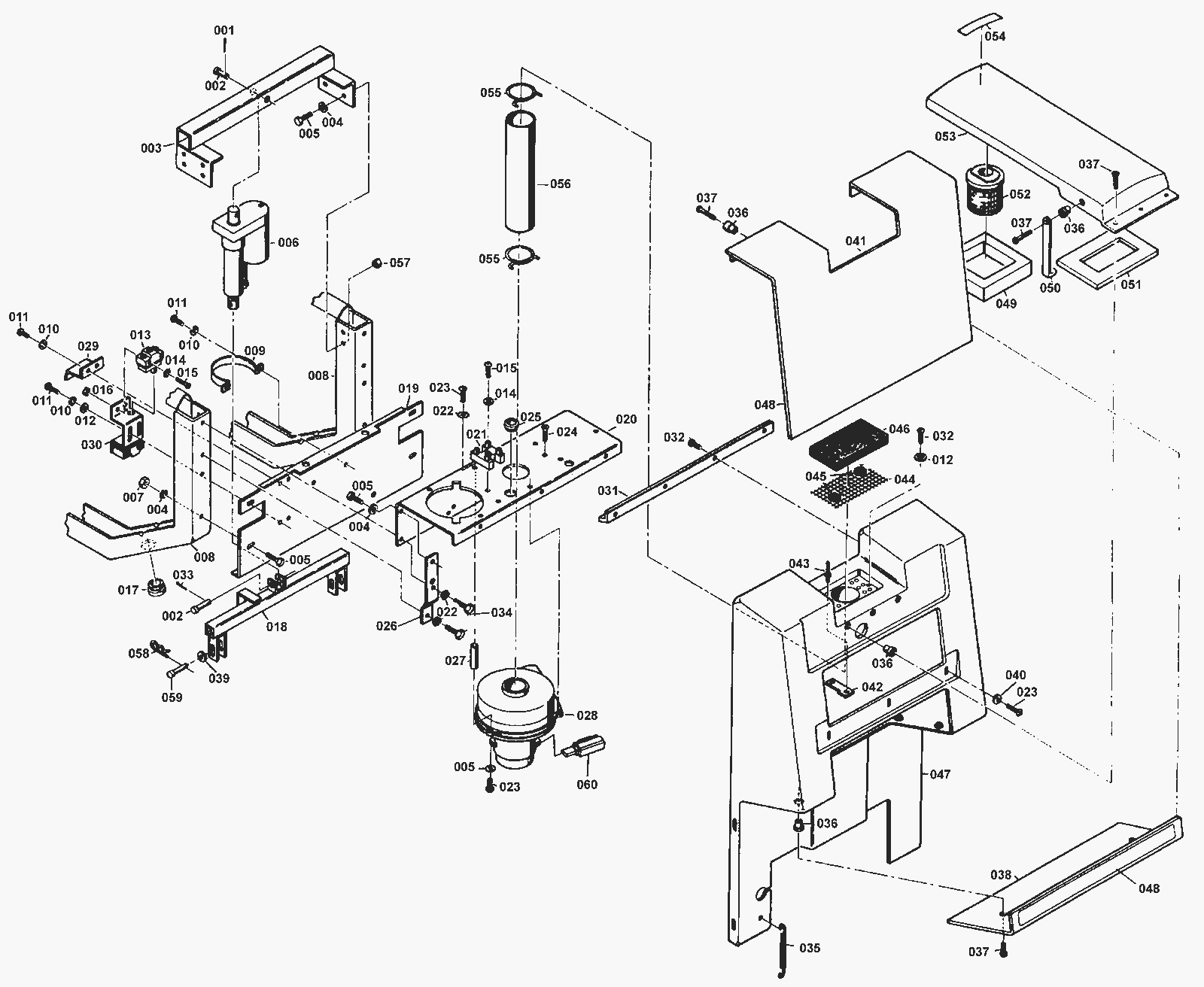

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
997-2516
|
Cotter pin |
1 |
|
|
002 |
170-0572
|
Clevis pin (FSO) (OBSOLETE) |
2 |
|
|
003 |
170-0573
|
Actuator support assembly (OBSOLETE) |
1 |
|
|
004 |
999-0060
|
Washer 1/4 split lock plain finish |
12 |
|
|
005 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
10 |
|
|
006 |
170-0574
|
Linear actuator (OBSOLETE) |
1 |
|
|
007 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
008 |
170-0420
|
Main frame assembly (OBSOLETE) |
2 |
|
|
009 |
170-0575
|
Actuator brace (OBSOLETE) |
1 |
|
|
010 |
170-6125
|
Washer 1/8 lock |
6 |
|
|
011 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
|
012 |
999-1416
|
Washer 7/16 flat stainless steel |
4 |
|
|
013 |
170-0576
|
Limit switch |
2 |
|
|
014 |
999-0148
|
Washer #6 external star lock zinc plated |
5 |
|
|
015 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
5 |
|
|
016 |
999-0195
|
Nut 6-32 hex plain |
4 |
|
|
017 |
N/A
|
Not available |
1 |
(not available) Snap bushing |
|
018 |
170-0578
|
Bracket assembly (OBSOLETE) |
1 |
|
|
020 |
170-0580
|
Vacuum motor bracket (OBSOLETE) |
1 |
|
|
021 |
170-0581
|
Block terminal (OBSOLETE) |
1 |
|
|
022 |
999-0017
|
Washer 1/4 external star lock |
8 |
|
|
023 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
8 |
|
|
024 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
1 |
|
|
025 |
170-0582
|
Snap bushing (OBSOLETE) |
1 |
|
|
026 |
N/A
|
Not available |
2 |
(Not Available) Vacuum motor bracket support |
|
027 |
170-0584
|
Vacuum motor bracket spacer (OBSOLETE) |
3 |
|
|
028 |
991-1217
|
36V 2 stage vacuum motor tangential with snout |
1 |
|
|
029 |
N/A
|
Not available |
1 |
(Not Available) Shield Switch |
|
030 |
170-5783
|
Switch mounting bracket (OBSOLETE) |
1 |
|
|
031 |
170-0588
|
Tank seal (FSO) (OBSOLETE) |
1 |
|
|
032 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
6 |
|
|
033 |
997-2505
|
Cotter pin |
1 |
|
|
034 |
999-0415
|
Screw 1/4-20 x 3/4 pan head slotted zinc plated |
4 |
|
|
035 |
N/A
|
Not available |
1 |
Idler tension spring |
|
037 |
999-0625
|
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
8 |
|
|
038 |
170-0590
|
Front panel (FSO) (OBSOLETE) |
1 |
|
|
039 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
040 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
041 |
170-0591
|
Front cover panel (OBSOLETE) |
1 |
|
|
042 |
170-0592
|
Stop chamber brace (OBSOLETE) |
1 |
|
|
043 |
170-0775
|
1/8 inch rivet pop aluminum |
2 |
|
|
044 |
170-0594
|
Vacuum motor intake screen (OBSOLETE) |
1 |
|
|
045 |
170-0595
|
Pad lock button (OBSOLETE) |
2 |
|
|
046 |
170-0596
|
Vacuum motor filter |
1 |
|
|
047 |
170-0597
|
Front cover (OBSOLETE) |
1 |
|
|
048 |
N/A
|
Not available |
1 |
(Not Available) Label clarke |
|
049 |
170-0599
|
Vacuum chamber gasket (OBSOLETE) |
1 |
|
|
050 |
170-0500
|
Vacuum chamber brace (OBSOLETE) |
1 |
|
|
051 |
170-0601
|
Filter gasket |
1 |
|
|
052 |
170-0602
|
Recovery float assembly (OBSOLETE) |
1 |
|
|
053 |
170-0603
|
Vacuum chamber (FSO) (OBSOLETE) |
1 |
|
|
054 |
170-0604
|
Charge Plug Label (FSO) (OBSOLETE) |
1 |
|
|
055 |
997-2007
|
Hose clamp |
2 |
|
|
056 |
170-0606
|
Vacuum tank hose |
1 |
|
|
057 |
170-0465
|
Nut 1/4-20 ESNA heavy jam |
4 |
|
|
058 |
170-0135
|
Cotter pin (OBSOLETE) |
2 |
|
|
059 |
170-0423
|
Release pin (FSO) (OBSOLETE) |
2 |
|
|
060 |
170-5786
|
Motor brush (OBSOLETE) |
2 |
|
|
