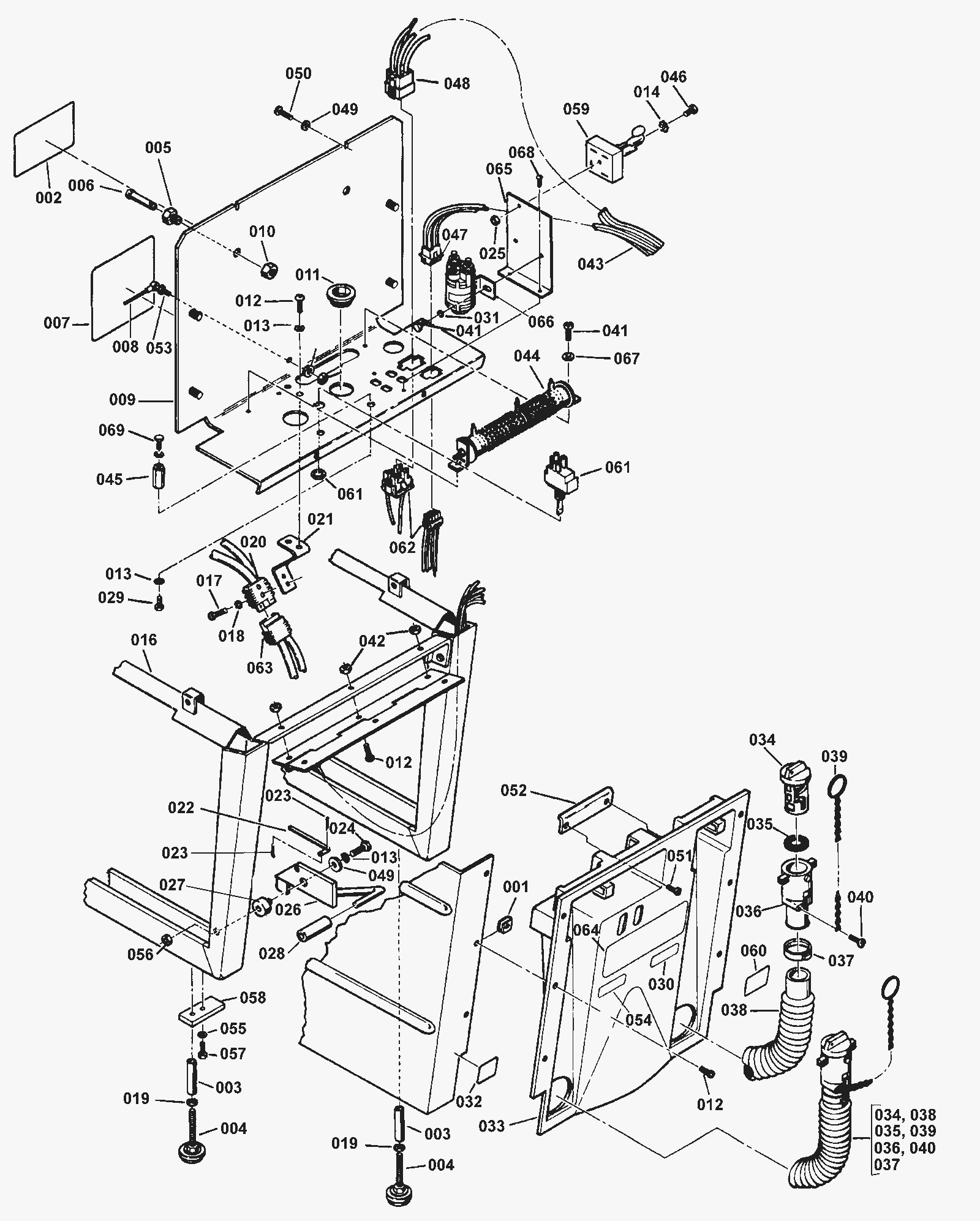

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0462
|
Nut 1/4-20 speed (OBSOLETE) |
6 |
|
|
002 |
170-0542
|
Battery care label (OBSOLETE) |
1 |
|
|
003 |
170-0543
|
Spacer (FSO) (OBSOLETE) |
2 |
|
|
004 |
170-0544
|
Leveler |
2 |
|
|
005 |
170-0078
|
Tank stop bushing (OBSOLETE) |
2 |
|
|
006 |
170-0079
|
Release pin |
2 |
|
|
007 |
170-0545
|
Warning label (FSO) (OBSOLETE) |
1 |
|
|
008 |
170-0546
|
Tank stop cord assembly (OBSOLETE) |
1 |
|
|
009 |
170-5777
|
Electrical panel assembly (DISCONTINUED) |
1 |
|
|
010 |
999-0003
|
Nut 5/8-18 hex jam stainless steel |
2 |
|
|
011 |
N/A
|
Not available |
2 |
(not available) Snap bushing |
|
012 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
11 |
|
|
013 |
999-0017
|
Washer 1/4 external star lock |
4 |
|
|
014 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
015 |
999-0460
|
Nut 10-32 hex |
1 |
|
|
016 |
170-0420
|
Main frame assembly (OBSOLETE) |
2 |
|
|
017 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
|
018 |
999-0148
|
Washer #6 external star lock zinc plated |
2 |
|
|
019 |
999-0247
|
Nut 3/8-16 hex jam plain finish |
2 |
|
|
020 |
170-0548
|
Console cable assembly |
1 |
|
|
021 |
170-0549
|
Power connect bracket (OBSOLETE) |
1 |
|
|
022 |
170-0550
|
Brake rod (OBSOLETE) |
1 |
|
|
023 |
997-2504
|
Cotter pin 1/16 x 1/2 |
2 |
|
|
024 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
025 |
999-0062
|
Nut 10-24 hex |
1 |
|
|
026 |
170-0552
|
Brake pedal assembly (OBSOLETE) |
1 |
|
|
027 |
170-0553
|
Brake pedal spacer (FSO) (OBSOLETE) |
1 |
|
|
028 |
170-0434
|
Brake pedal cover (OBSOLETE) |
1 |
|
|
029 |
999-0175
|
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
2 |
|
|
030 |
N/A
|
Not available |
1 |
(not available) Solution drain label |
|
031 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
032 |
170-0555
|
Parking brake label (FSO) (OBSOLETE) |
1 |
|
|
033 |
170-0556
|
Rear cover (OBSOLETE) |
1 |
|
|
034 |
170-0042
|
Drain valve handle |
2 |
|
|
035 |
170-0032
|
Drain valve gasket |
2 |
|
|
036 |
170-0043
|
Drain valve |
2 |
|
|
037 |
164-0218
|
Nylon hose clamp |
2 |
|
|
038 |
170-0557
|
Drain hose (OBSOLETE) |
2 |
|
|
039 |
170-0558
|
Drain chain assembly |
2 |
|
|
040 |
999-0576
|
Screw 8-18 x 1/2 pan head phillips self-drilling ss |
2 |
|
|
041 |
N/A
|
Not available |
4 |
(Screw) |
|
042 |
999-0190
|
Nut 1/4-20 hex plain finish |
3 |
|
|
043 |
170-0559
|
Panel harness assembly (OBSOLETE) |
1 |
|
|
044 |
170-0065
|
Resistor (OBSOLETE) |
1 |
|
|
045 |
170-0063
|
Insulated stand off |
2 |
|
|
046 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
|
047 |
170-0560
|
Circuit plug housing (FSO) (OBSOLETE) |
1 |
|
|
048 |
N/A
|
Not available |
1 |
Housing cap |
|
049 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
|
050 |
170-0463
|
Screw 9/32-16 x 3/4 hex washer head hi-lo |
2 |
|
|
051 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
2 |
|
|
052 |
170-0562
|
Squeegee hose guide (OBSOLETE) |
1 |
|
|
053 |
170-0511
|
Ball joint assembly (OBSOLETE) |
1 |
|
|
054 |
N/A
|
Not available |
1 |
(not available) Recovery drain label |
|
055 |
170-5781
|
Washer lock (OBSOLETE) |
1 |
|
|
056 |
999-0069
|
Nut 5/16-18 hex |
1 |
|
|
057 |
999-0578
|
Bolt 3/8-16 x 1/2 hex head grade 5 plain finish |
1 |
|
|
058 |
170-0564
|
Brake pedal stop (OBSOLETE) |
1 |
|
|
059 |
170-0565
|
Rectifer assembly (OBSOLETE) |
1 |
|
|
060 |
170-0566
|
Squeegee label (OBSOLETE) |
1 |
|
|
061 |
170-0567
|
On/off switch (OBSOLETE) |
1 |
|
|
062 |
170-0568
|
Machine harness assembly (OBSOLETE) |
1 |
|
|
063 |
170-0569
|
Battery cable assembly (OBSOLETE) |
1 |
|
|
064 |
170-0570
|
Lubrication label (FSO) (OBSOLETE) |
1 |
|
|
065 |
N/A
|
Not available |
1 |
(not available) Bracket |
|
066 |
172-2805
|
36V contactor |
1 |
|
|
067 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
068 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
069 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
