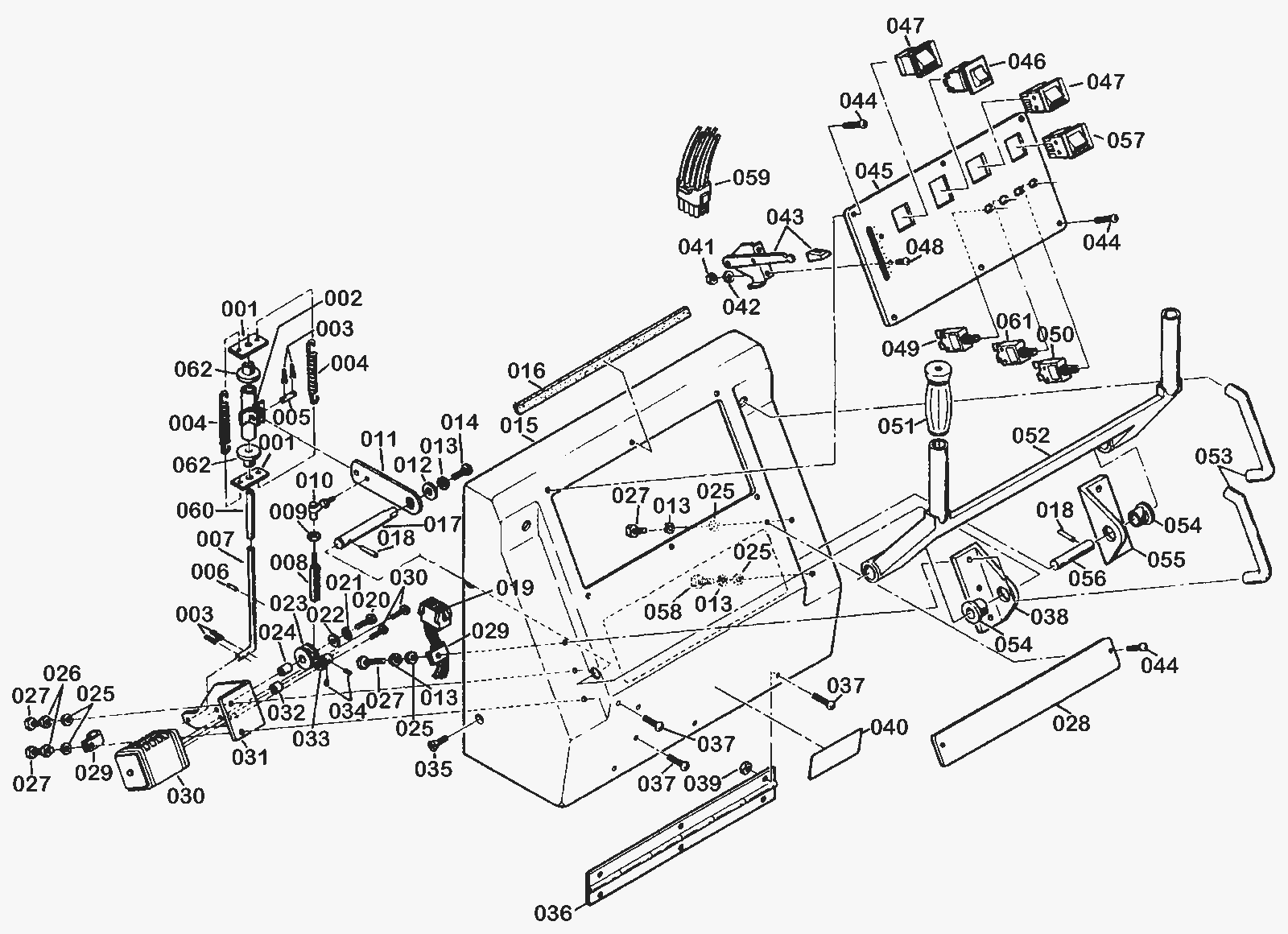

Leader 3200 SII Control Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 170-0504 Spring plate (OBSOLETE) $5.50 2 usually ships 1-5 days
002 N/A Not available Call for price 1 (not available) Centering tube assembly usually ships 3-26 days
003 997-2500 Cotter pin $0.99 4 ships same day
004 170-0127 Brake spring $11.69 2 usually ships 1-5 days
005 170-0506 1/4 inch diameter pin (OBSOLETE) $5.94 1 usually ships 1-5 days
006 373-3020 Pin roll $11.99 1 usually ships 16-41 days
007 170-0508 Centering rod (FSO) (OBSOLETE) $12.83 1 usually ships 1-5 days
008 170-0509 Switch rack (OBSOLETE) $27.57 1 usually ships 1-5 days
009 999-0460 Nut 10-32 hex $0.99 1 ships same day
010 170-5772 Ball joint assembly (OBSOLETE) $28.51 1 usually ships 1-5 days
011 170-0512 Switch actuator arm (FSO) (OBSOLETE) $133.06 1 usually ships 1-5 days
012 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 1 ships same day
013 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
014 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
015 170-0513 Control housing (OBSOLETE) $208.97 1 usually ships 1-5 days
016 N/A Not available Call for price 1 (not available) Console panel gasket usually ships 3-26 days
017 N/A Not available Call for price 1 Handle pin usually ships 3-26 days
018 N/A Not available Call for price 2 (not available) Pin 3/16 inch diameter usually ships 3-26 days
019 170-0517 Traverse switch harness assembly (OBSOLETE) $90.53 1 usually ships 1-5 days
020 999-0300 Bolt 1/4-20 x 7/8 hex head grade 5 zinc plated $0.99 1 ships same day
021 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
022 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
023 N/A Not available Call for price 1 Rack retainer usually ships 3-26 days
024 170-0519 Housing mount spacer (OBSOLETE) $21.89 1 usually ships 1-5 days
025 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
026 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
027 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
028 170-0520 Warning label (FSO) (OBSOLETE) $6.78 1 usually ships 1-5 days
029 170-0457 Strap (OBSOLETE) $5.50 2 usually ships 1-5 days
030 170-0522 Switch (OBSOLETE) $352.48 1 usually ships 1-5 days
031 170-0523 Bracket switch (OBSOLETE) $67.96 1 usually ships 1-5 days
032 170-0524 Gear spacer (OBSOLETE) $10.93 1 usually ships 1-5 days
033 N/A Not available Call for price 1 (Not Available) Gear switch usually ships 3-26 days
034 999-0149 Screw 8-32 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
035 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated $0.99 2 ships same day
036 170-0526 Hinge (OBSOLETE) $21.26 1 usually ships 1-5 days
037 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 7 ships same day
038 170-0527 Adjusting left hand bracket (OBSOLETE) $29.82 1 usually ships 1-5 days
039 999-0190 Nut 1/4-20 hex plain finish $0.99 5 ships same day
040 N/A Not available Call for price 1 (not available) usually ships 3-26 days
041 999-0062 Nut 10-24 hex $0.99 2 ships same day
042 170-6125 Washer 1/8 lock $1.21 2 usually ships 1-5 days
043 N/A Not available Call for price 1 (not available) Solution contol with cable usually ships 3-26 days
044 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 8 ships same day
045 170-0529 Panel console (OBSOLETE) $103.71 1 usually ships 1-5 days
046 170-0089 Rocker switch (OBSOLETE) $26.92 1 usually ships 16-41 days
047 170-0001 Switch $72.39 2 usually ships 16-41 days
048 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
049a 170-0531 15amp circuit breaker $62.16 1 usually ships 1-5 days
049b 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
050 991-1630 35amp circuit breaker $28.74 2 usually ships 16-41 days
051 170-0532 Handle grip (OBSOLETE) $6.29 2 usually ships 16-41 days
052 170-0533 Control handle (OBSOLETE) $328.53 1 usually ships 1-5 days
053 170-0534 Stationary handle (FSO) (OBSOLETE) $15.57 2 usually ships 1-5 days
054 170-0088 Flanged bearing (OBSOLETE) $13.40 2 usually ships 16-41 days
055 170-0541 Adjusting right hand bracket (OBSOLETE) $27.45 1 usually ships 1-5 days
056 170-0535 Handle pivot pin (OBSOLETE) $12.60 1 usually ships 1-5 days
057 170-5566 Switch $69.71 1 usually ships 1-5 days
058 999-0631 Bolt 3/8-16 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
059 170-0538 Console harness assembly (OBSOLETE) $121.18 1 usually ships 1-5 days
060 170-0539 Centering tube (OBSOLETE) $26.38 1 usually ships 1-5 days
061 170-0545 Warning label (FSO) (OBSOLETE) $5.50 1 usually ships 1-5 days
062 170-0540 Bushing slide (OBSOLETE) $5.50 2 usually ships 1-5 days
063 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
