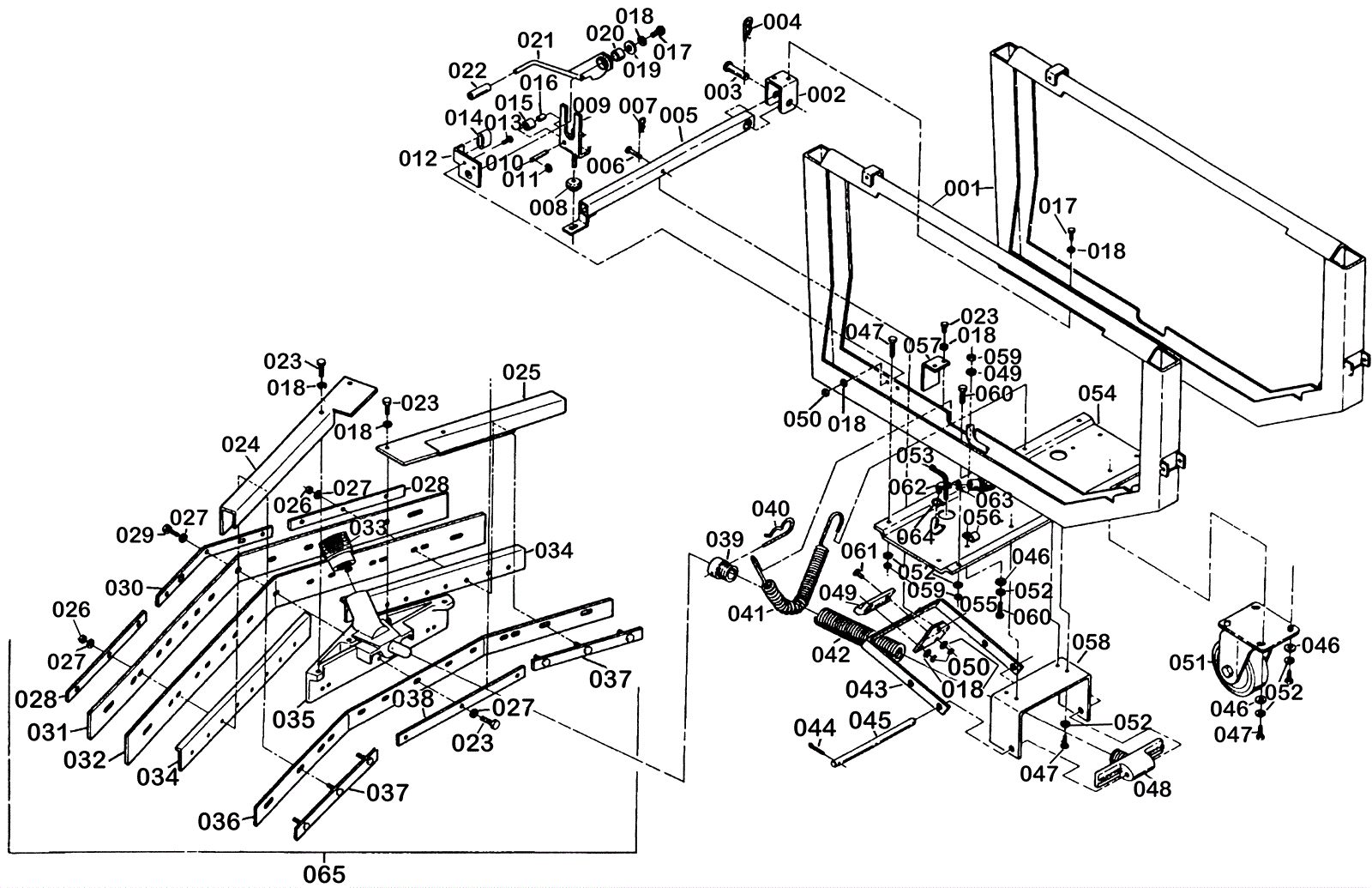

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
170-0420
|
Main frame assembly (OBSOLETE) |
2 |
|
|
002 |
N/A
|
Not available |
2 |
(Not Available) Bracket Pivot Squeegee |
|
003 |
170-0398
|
Connecting pin |
1 |
|
|
004 |
997-2516
|
Cotter pin |
1 |
|
|
005 |
170-0422
|
Squeegee arm assembly (OBSOLETE) |
1 |
|
|
006 |
170-0423
|
Release pin (FSO) (OBSOLETE) |
1 |
|
|
007 |
170-0135
|
Cotter pin (OBSOLETE) |
3 |
|
|
008 |
170-0424
|
Knob adjustment (OBSOLETE) |
1 |
|
|
009 |
170-0425
|
Bracket and screw assembly (OBSOLETE) |
1 |
|
|
010 |
170-0426
|
Pin follower (OBSOLETE) |
1 |
|
|
011 |
170-0427
|
Retaining ring (OBSOLETE) |
2 |
|
|
012 |
170-0428
|
Squeegee pedal plate assembly (OBSOLETE) |
1 |
|
|
013 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
2 |
|
|
014 |
170-0429
|
Pedal stop sleeve (OBSOLETE) |
1 |
|
|
015 |
170-0430
|
Follower (OBSOLETE) |
1 |
|
|
016 |
170-0431
|
Sleeve bearing (OBSOLETE) |
1 |
|
|
017 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
3 |
|
|
018 |
999-0060
|
Washer 1/4 split lock plain finish |
11 |
|
|
019 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
1 |
|
|
020 |
170-0432
|
Pedal assembly bushing (OBSOLETE) |
1 |
|
|
021 |
170-0433
|
Squeegee pedal assembly (OBSOLETE) |
1 |
|
|
022 |
170-0434
|
Brake pedal cover (OBSOLETE) |
1 |
|
|
023 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
9 |
|
|
024 |
170-5764
|
Squeegee frame left hand (OBSOLETE) |
1 |
|
|
025 |
170-5765
|
Squeegee frame right hand (OBSOLETE) |
1 |
|
|
026 |
999-0465
|
Screw 6-32 x 3/8 oval head phillips zinc |
4 |
|
|
027 |
999-0016
|
Washer 1/4 flat plain finish |
12 |
|
|
028 |
170-5766
|
Squeegee blade retainer rear (OBSOLETE) |
2 |
|
|
029 |
999-0076
|
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
5 |
|
|
030 |
170-0438
|
Center rear retainer (OBSOLETE) |
1 |
|
|
031 |
170-5767
|
Squeegee blade back up |
1 |
|
|
032 |
170-0712
|
Squeegee blade |
1 |
|
|
033 |
170-0007
|
Squeegee hose with cuffs |
1 |
|
|
034 |
170-5769
|
Squeegee blade rear support |
2 |
|
|
035 |
170-0442
|
Squeegee housing (OBSOLETE) |
1 |
|
|
036 |
170-0711
|
Squeegee blade front (OBSOLETE) |
1 |
|
|
037 |
170-5770
|
Squeegee retainer assembly (OBSOLETE) |
2 |
|
|
038 |
170-0445
|
Center front retainer (OBSOLETE) |
1 |
|
|
039 |
170-0446
|
Spring coupling |
1 |
|
|
040 |
170-0447
|
Squeegee locking pin |
1 |
|
|
041 |
N/A
|
Not available |
1 |
Spring |
|
042 |
170-0449
|
Squeegee spring (OBSOLETE) |
1 |
|
|
043 |
170-0450
|
Squeegee bracket |
1 |
|
|
044 |
997-2500
|
Cotter pin |
2 |
|
|
045 |
170-0452
|
Squeegee pivot shaft (OBSOLETE) |
1 |
|
|
046 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
|
047 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
14 |
|
|
048 |
170-0454
|
Squeegee bracket guide |
1 |
|
|
049 |
170-0005
|
Squeegee pad |
1 |
|
|
050 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
051a |
991-2011
|
Caster wheel assembly |
2 |
|
|
051b |
991-2004
|
Caster and swivel assembly |
2 |
|
|
051c |
170-7201
|
Caster wheel |
2 |
|
|
052 |
999-0028
|
Washer 5/16 split lock plain finish |
18 |
|
|
053 |
170-0080
|
Wire tie |
1 |
|
|
054 |
170-0455
|
Caster bracket (OBSOLETE) |
1 |
|
|
055 |
170-0456
|
Squeegee pick up bracket (OBSOLETE) |
1 |
|
|
056 |
170-0457
|
Strap (OBSOLETE) |
1 |
|
|
057 |
170-0458
|
Squeegee bracket guide (OBSOLETE) |
1 |
|
|
058 |
170-0459
|
Squeegee pivot bracket (OBSOLETE) |
1 |
|
|
059 |
999-0069
|
Nut 5/16-18 hex |
5 |
|
|
060 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
3 |
|
|
061 |
999-0432
|
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
|
062 |
572-3946
|
5/8 inch elbow |
1 |
|
|
063 |
997-2004
|
Hose clamp |
2 |
|
|
064 |
997-2004
|
Hose clamp |
1 |
|
|
065 |
170-5771
|
Squeegee assembly (OBSOLETE) |
1 |
|
|
