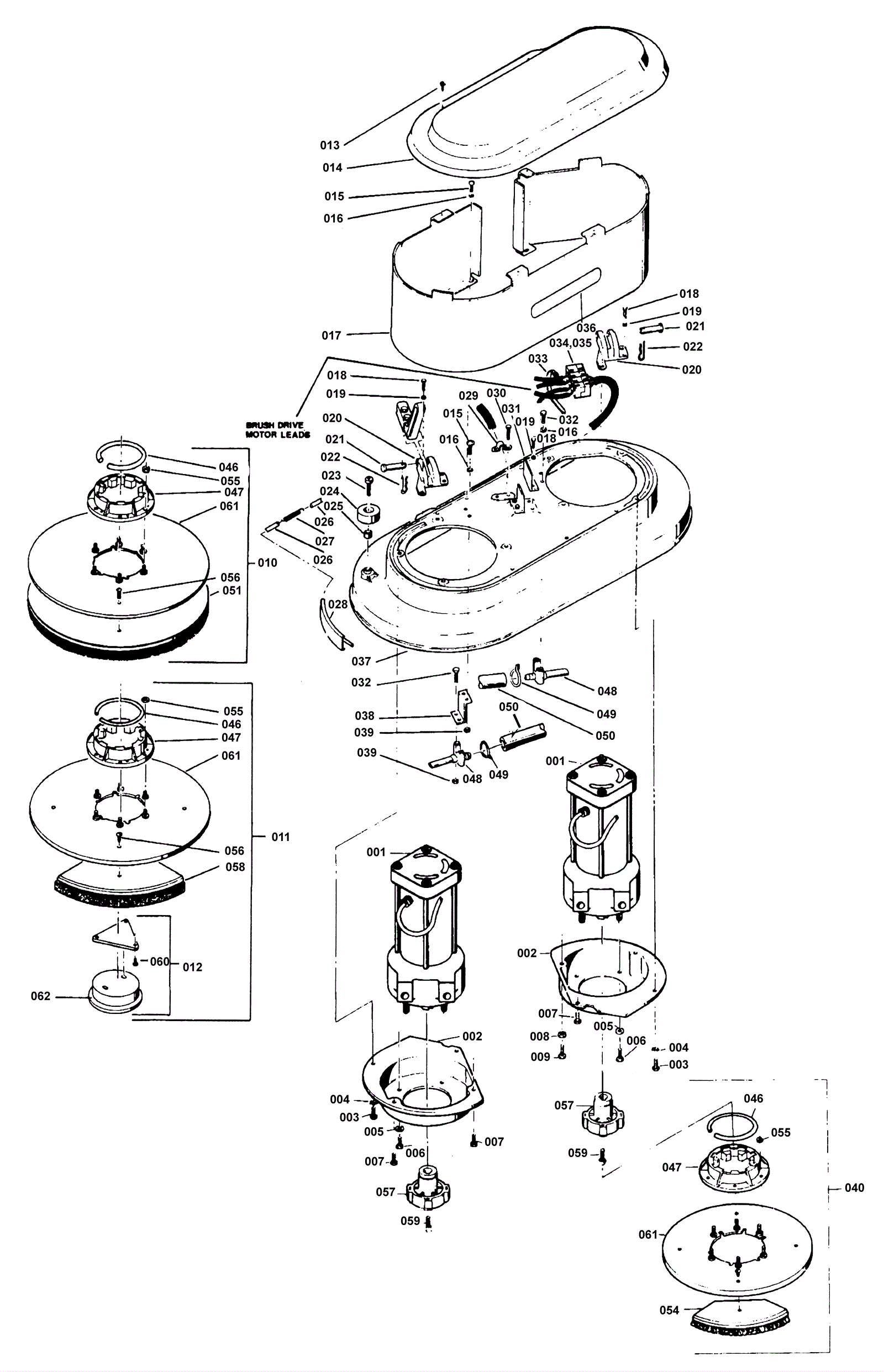

Brush Housing Assembly

#PartDescription ReqNotesAvailability
001 170-5744 Motor- Gear (OBSOLETE) 2
002 170-5745 Adaptor-Motor (OBSOLETE) 2
003 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
004 999-0017 Washer 1/4 external star lock 4
005 999-0016 Washer 1/4 flat plain finish 8
006 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 10
007 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 3
008 999-0105 Washer 5/16 external star lock zinc plated 11
009 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1
010 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
011 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages
012a N/A Not available 2 Pad holder - Can replace with 991-2206
012b 991-2212 Plastic plate only (for 991-2207) (OBSOLETE)
013 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 4
014 170-5750 Cover- Brush Housing (OBSOLETE) 1
015 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 8
016 999-0311 Washer #10 external star lock zinc plated 10
017 170-5751 Shield- Brush Housing (OBSOLETE) 1
018 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 10
019 999-0105 Washer 5/16 external star lock zinc plated 14
020 170-0008 Brush housing bracket (OBSOLETE) 2
021 170-0398 Connecting pin 2
022 997-2516 Cotter pin 2
023 999-1667 Screw 5/16-18 x 1 1/4 socket head stainless steel 1
024 170-0404 Wheel spacer (OBSOLETE) 1
025 170-0403 Brush guide wheel (OBSOLETE) 1
026 170-5753 Strip Skirt Retaining (OBSOLETE) 2
027 170-0068 Control handle spring (OBSOLETE) 1
028 170-5754 Skirt-Brush Housing (OBSOLETE) 1
029 170-0401 Wire clamp (OBSOLETE) 1
030 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 2
031 170-0405 Housing lift bracket (OBSOLETE) 2
032 999-0574 Screw 10-24 x 1 3/4 pan head slotted zinc plated 4
033 170-0080 Wire tie 1
034 170-0218 Contact pins for charger plug (sold individually) 4
035 170-0009 Connector housing 8
036 170-0419 Label - Series II (OBSOLETE) 1
037 170-5755 Housing Brush (OBSOLETE) 1
038 170-5756 Bracket- solution adapter (OBSOLETE) 1
039 999-0062 Nut 10-24 hex 4
040 170-5757 Brush Assembly (OBSOLETE) 2
046 170-0031 Brush holder spring 2
047 996-0336 Clutch plate with brush holder spring 2
048 170-0400 Solution adapter 2
049 997-2004 Hose clamp 2
050 170-0408 Valve/brush hose 2
051 170-5758 Pad-Positive Grip Driver (OBSOLETE) 2
054 170-5759 Brush- poly-sectional 2
055 999-0190 Nut 1/4-20 hex plain finish 12
056 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 8
057a 170-0207 Male gimbal with collar 2
057b 170-0207 Male gimbal with collar
058 170-5760 Block Assembly-sectional (OBSOLETE) 8
059 170-0461 Screw 5/16-18 x 3/4 truss head thread cutting ss (OBSOLETE) 2
060 999-0451 Screw 10-16 x 5/8 pan head phillips self-drilling 8
061 170-5762 Plate Assembly-brush holder (OBSOLETE) 2
062 170-0693 Plate cup 1
