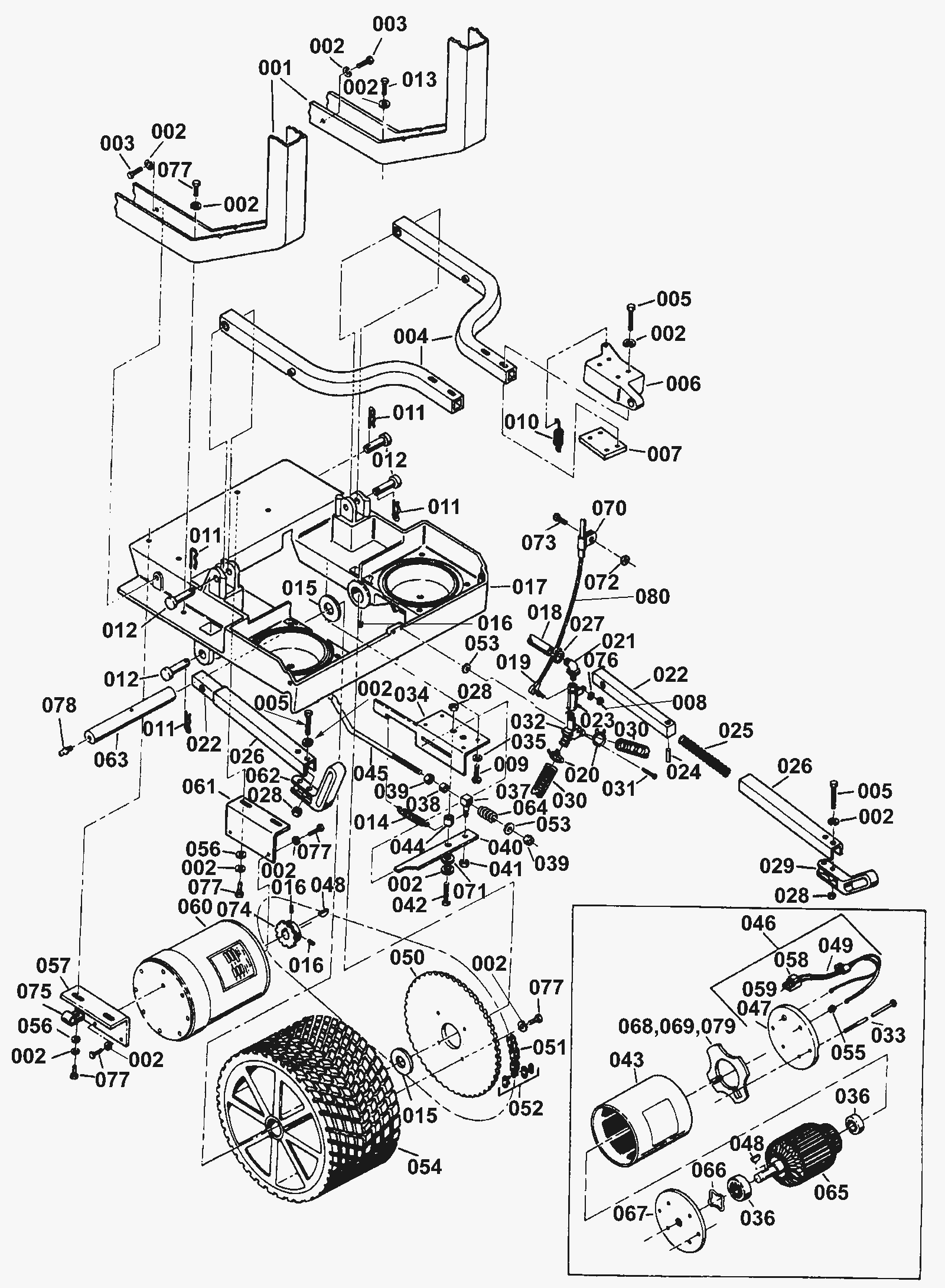

#PartDescription ReqNotesAvailability
001 170-0420 Main frame assembly (OBSOLETE) 2
002 999-0028 Washer 5/16 split lock plain finish 23
003 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 2
004 170-0655 Brush lift arm assembly (OBSOLETE) 2
005 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 8
006 170-0656 Brush lift link 1
007 170-0657 Plate Nut (OBSOLETE) 1
008 999-0460 Nut 10-32 hex 1
009 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
010 170-0658 Idler tension spring (OBSOLETE) 1
011 997-2516 Cotter pin 4
012 170-0398 Connecting pin 4
013 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1
014 170-0127 Brake spring 1
015 170-0143 Spacer washer (OBSOLETE) 2
016 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish 4
017 170-0659 Machine support (OBSOLETE) 1
018 170-0624 Elbow hose (OBSOLETE) 1
019 170-0511 Ball joint assembly (OBSOLETE) 1
020 997-2004 Hose clamp 2
021 170-0660 Solution elbow 1
022 170-0661 Parallel arm (OBSOLETE) 2
023 170-0006 Manual solution valve 1
024 170-0662 Roll Pin (OBSOLETE) 2
025 170-0663 Press control spring (OBSOLETE) 2
026 170-0664 Parallel arm tube (OBSOLETE) 2
027 997-2004 Hose clamp 1
028 999-0069 Nut 5/16-18 hex 5
029 170-0665 Left hand parallel arm end (OBSOLETE) 1
030 170-0408 Valve/brush hose 2
031 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
032 170-0208 Water splitter (OBSOLETE) 1
033 N/A Not available 2 (not available) Thru bolt
034 170-0666 Brake arm guide (FSO) (OBSOLETE) 1
035 999-0060 Washer 1/4 split lock plain finish 4
036 170-0321 Front end bearing 2
037 170-0130 Brake rod swivel 1
038 170-0667 Brake rod spacer (FSO) (OBSOLETE) 1
039 170-0465 Nut 1/4-20 ESNA heavy jam 2
040 170-0668 Brake arm 1
041 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
042 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 1
043 170-0669 Stator frame assembly (OBSOLETE) 1
044 170-0128 Brake arm spacer (OBSOLETE) 1
045 170-0550 Brake rod (OBSOLETE) 1
046 170-0670 Commutator bracket (OBSOLETE) 1
047 N/A Not available 1 (not available) Bracket
048 170-0672 Square keyway 1
049 170-0673 Lead assembly (OBSOLETE) 1
050 170-0674 Driven sprocket (OBSOLETE) 1
051 170-0675 Drive chain (OBSOLETE) 1
052 170-0676 Connecting link 1
053 999-0123 Washer 1/4 SAE flat zinc plated 5
054 N/A Not available 1 (Drive wheel assembly)
055 N/A Not available 2 (not available) Strain relief
056 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
057 170-0679 Motor mounting bracket (FSO) (OBSOLETE) 1
058 170-0385 Male terminal housing connector 1
059 170-0386 Male terminal (OBSOLETE) 1
060 170-0680 Traverse motor (OBSOLETE) 1
061 170-0681 Motor mounting bracket (FSO) (OBSOLETE) 1
062 170-0682 Right hand parallel arm end (OBSOLETE) 1
063 170-0683 Front end wheel shaft (OBSOLETE) 1
064 170-0113 Spring (OBSOLETE) 1
065 N/A Not available 1 (not available) Armature assembly
066 170-0379 Wave washer 1
067 170-0685 Bracket (FSO) (OBSOLETE) 1
068 170-0686 Brush assembly (OBSOLETE) 4
069 372-1685 Springs 4
070 170-0263 Cable clip 1
071 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 1
072 999-0151 Nut 8-32 nylon insert lock zinc plated 1
073 999-0385 Screw 8-32 x 1/2 round head slotted zinc plated 1
074 170-0687 Drive sprocket 1
075 170-0457 Strap (OBSOLETE) 1
076 999-0311 Washer #10 external star lock zinc plated 1
077 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 11
078 170-0016 Grease fitting 1
079 170-0689 Brush board assembly (OBSOLETE) 1
080 N/A Not available 1 (not available) Solution contol with cable
