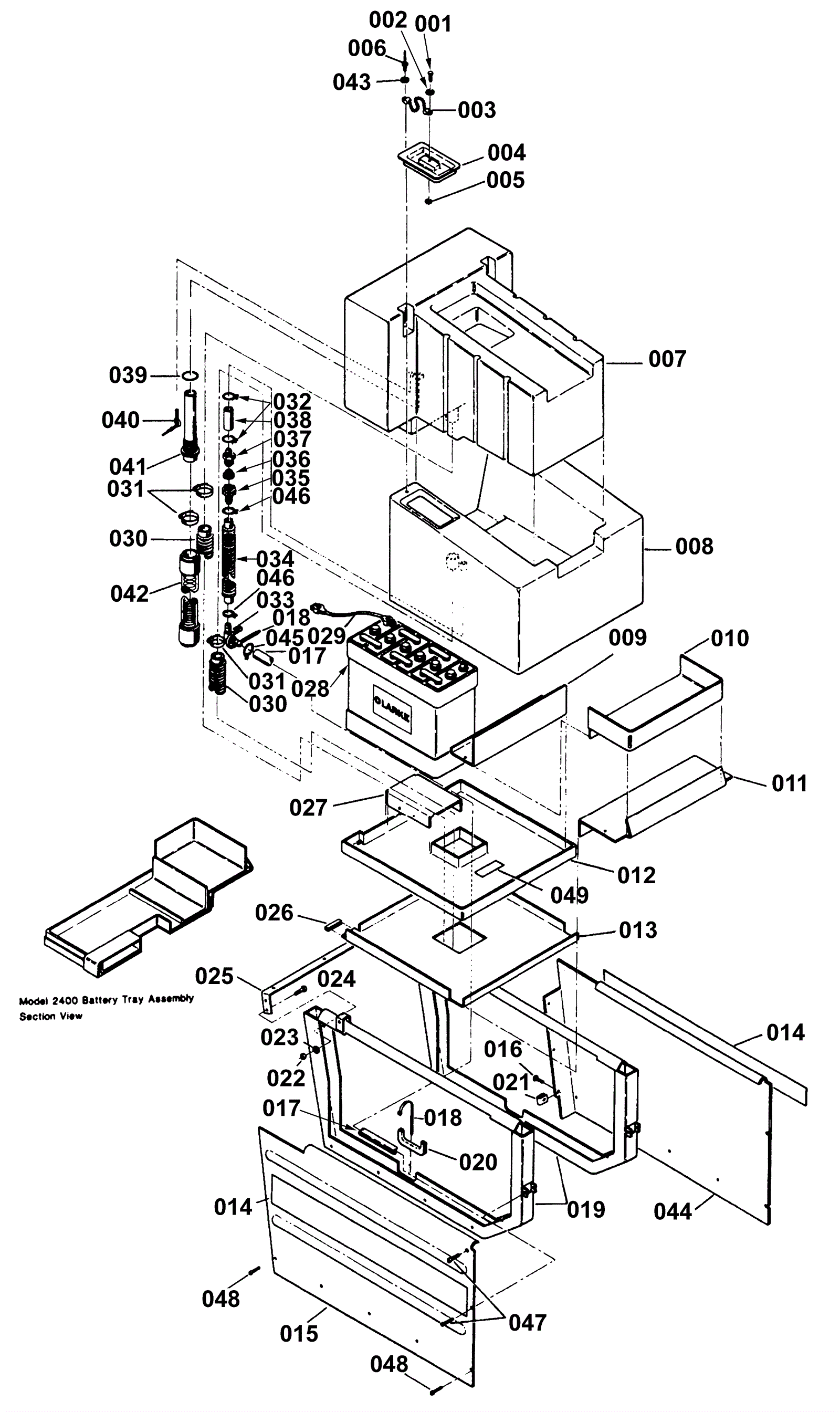

LEADER 2400D SII Main Frame and Tank

#PartDescriptionPriceReqNotesAvailability
001 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 1 ships same day
002 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
003 172-2474 8 inch chain $10.85 1 usually ships 17-28 days
004 170-0613 Tank lid $49.63 1 ships same day
005 999-0062 Nut 10-24 hex $0.99 1 ships same day
006 170-0614 Rivet (OBSOLETE) $5.50 1 usually ships 1-5 days
007 170-0615 Recovery tank (OBSOLETE) $634.99 1 usually ships 1-5 days
008 170-0616 Solution tank (OBSOLETE) $773.86 1 usually ships 1-5 days
009 170-0617 Battery front spacer (FSO) (OBSOLETE) $54.30 1 usually ships 17-28 days
010 170-0618 Liner battery support (OBSOLETE) $39.33 1 usually ships 1-5 days
011 N/A Not available Call for price 1 (not available) Battery support usually ships 3-26 days
012 170-0620 Battery tray liner (OBSOLETE) $96.84 1 usually ships 1-5 days
013 170-0621 Battery tray (OBSOLETE) $165.86 1 usually ships 1-5 days
014 170-0622 Clarke leader label (OBSOLETE) $20.20 2 usually ships 1-5 days
015 170-0623 Right hand side panel (OBSOLETE) $202.68 1 usually ships 1-5 days
016 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 6 ships same day
017 170-0624 Elbow hose (OBSOLETE) $40.51 1 usually ships 1-5 days
018 170-0080 Wire tie $12.31 2 usually ships 17-28 days
019 170-0420 Main frame assembly (OBSOLETE) $264.57 2 usually ships 1-5 days
020 170-0625 Frame trim (OBSOLETE) $4.14 1 usually ships 1-5 days
021 170-0462 Nut 1/4-20 speed (OBSOLETE) $5.50 6 usually ships 1-5 days
022 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
023 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
024 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
025 170-0626 Switch assembly mounting bracket (FSO) (OBSOLETE) $39.92 1 usually ships 1-5 days
026 170-0627 Tray trim (OBSOLETE) $33.02 1 usually ships 1-5 days
027 N/A Not available Call for price 1 (not available) Battery rear spacer usually ships 3-26 days
029 170-0224 Battery cable $37.05 2 usually ships 17-28 days
030 170-0557 Drain hose (OBSOLETE) $84.94 2 usually ships 1-5 days
031 997-2007 Hose clamp $2.07 3 ships same day
032 997-2004 Hose clamp $2.15 2 ships same day
033 572-3946 5/8 inch elbow $12.31 1 usually ships 17-28 days
034 170-0632 Solution tank to elbow hose $37.73 1 usually ships 17-28 days
035 170-0633 Female swivel connector (FSO) (OBSOLETE) $7.48 1 usually ships 1-5 days
036 164-0065 Filter screen $3.04 1 ships same day
037 170-0264 Hose barb $10.85 1 usually ships 17-28 days
038 170-0634 Tank to filter hose (OBSOLETE) $7.01 1 usually ships 1-5 days
039 170-0273 O-ring $7.67 1 ships same day
040 170-0546 Tank stop cord assembly (OBSOLETE) $15.44 1 usually ships 1-5 days
041 170-0271 Hose adaptor assembly (OBSOLETE) $25.31 1 usually ships 17-28 days
042 170-0007 Squeegee hose with cuffs $68.99 1 usually ships 17-28 days
043 999-1416 Washer 7/16 flat stainless steel $0.99 1 ships same day
044 170-0635 Left hand side panel (OBSOLETE) $202.68 1 usually ships 1-5 days
045 997-2004 Hose clamp $2.15 1 ships same day
046 997-2004 Hose clamp $2.15 2 ships same day
047 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 4 ships same day
048 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 10 ships same day
049 N/A Not available Call for price 1 (not available) Caution label usually ships 3-26 days
028 162-0002 12V 185Ah wet battery (SNSR) $646.73 3 ships same day
028 162-0047 12V 215Ah AGM battery (Group J185) $907.50 3 ships same day
