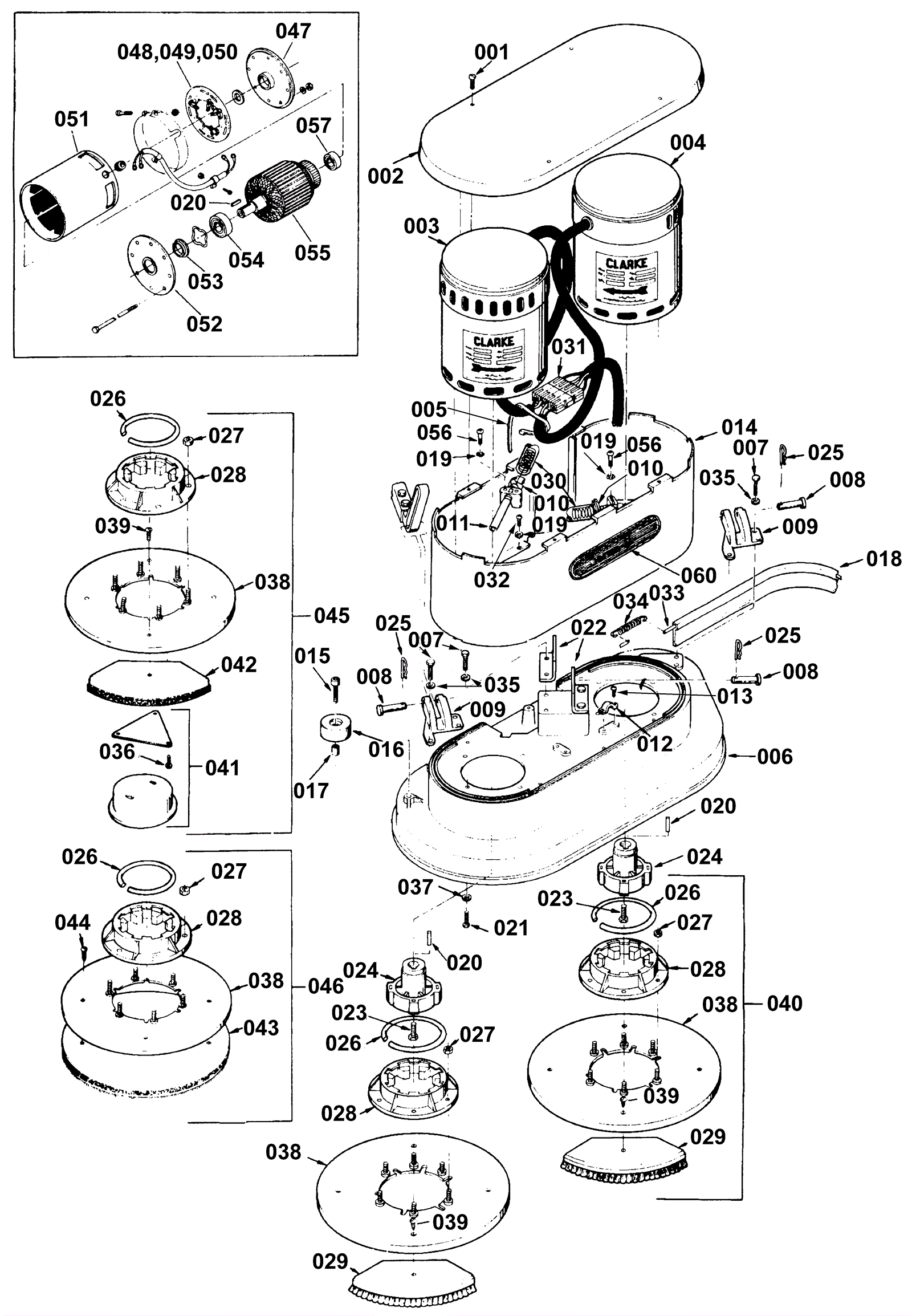

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0572
|
Screw 10-24 x 1/2 pan head self-tapping zinc |
4 |
|
|
002 |
170-0392
|
Brush motor cover (OBSOLETE) |
1 |
|
|
003 |
170-0393
|
Right brush drive motor (OBSOLETE) |
1 |
|
|
004 |
170-0396
|
Left brush drive motor (OBSOLETE) |
1 |
|
|
005 |
170-0080
|
Wire tie |
1 |
|
|
006 |
170-0397
|
Brush housing (OBSOLETE) |
1 |
|
|
007 |
999-0512
|
Bolt 3/8-24 x 3/4 hex head grade 5 zinc plated |
10 |
|
|
008 |
170-0398
|
Connecting pin |
3 |
|
|
009 |
170-0008
|
Brush housing bracket (OBSOLETE) |
2 |
|
|
010 |
997-2004
|
Hose clamp |
2 |
|
|
011 |
170-0400
|
Solution adapter |
2 |
|
|
012 |
170-0401
|
Wire clamp (OBSOLETE) |
1 |
|
|
013 |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
2 |
|
|
014 |
170-0402
|
Brush housing shield (OBSOLETE) |
1 |
|
|
015 |
999-0573
|
Screw 5/16-18 x 1 1/4 socket head alloy plain finish |
1 |
|
|
016 |
170-0403
|
Brush guide wheel (OBSOLETE) |
1 |
|
|
017 |
170-0404
|
Wheel spacer (OBSOLETE) |
1 |
|
|
018 |
170-0690
|
Brush housing skirt (OBSOLETE) |
1 |
|
|
019 |
999-0311
|
Washer #10 external star lock zinc plated |
10 |
|
|
020 |
164-0132
|
Square keyway 1/4 x 1/4 |
2 |
|
|
021 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
8 |
|
|
022 |
170-0405
|
Housing lift bracket (OBSOLETE) |
2 |
|
|
023 |
170-0461
|
Screw 5/16-18 x 3/4 truss head thread cutting ss (OBSOLETE) |
2 |
|
|
024a |
170-0207
|
Male gimbal with collar |
2 |
|
|
024b |
170-0207
|
Male gimbal with collar |
|
|
|
025 |
997-2516
|
Cotter pin |
3 |
|
|
026 |
170-0031
|
Brush holder spring |
2 |
|
|
027 |
999-0190
|
Nut 1/4-20 hex plain finish |
12 |
|
|
028 |
996-0336
|
Clutch plate with brush holder spring |
2 |
|
|
029 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
|
030 |
170-0408
|
Valve/brush hose |
2 |
|
|
031 |
170-0009
|
Connector housing |
4 |
|
|
032 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
|
033 |
170-0409
|
Skirt retaining strip (OBSOLETE) |
1 |
|
|
034 |
170-0068
|
Control handle spring (OBSOLETE) |
1 |
|
|
035 |
999-0105
|
Washer 5/16 external star lock zinc plated |
10 |
|
|
036 |
999-0451
|
Screw 10-16 x 5/8 pan head phillips self-drilling |
6 |
|
|
037 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
038 |
170-0411
|
Brush plate assembly (OBSOLETE) |
2 |
|
|
039 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
8 |
|
|
040 |
170-0412
|
Nylon brush assembly |
2 |
(does not include pad driver) |
|
041a |
N/A
|
Not available |
2 |
Pad holder - Can replace with 991-2206 |
|
041b |
991-2212
|
Plastic plate only (for 991-2207) (OBSOLETE) |
|
|
|
042 |
170-0413
|
Sectional block assembly (OBSOLETE) |
8 |
|
|
043 |
N/A
|
Not available |
2 |
|
|
044 |
999-0413
|
Screw 10-32 x 1/2 pan head slotted zinc plated |
8 |
|
|
045 |
170-0415
|
Sectional pad driver (OBSOLETE) |
2 |
(Optional) |
|
046 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
|
|
047 |
170-0417
|
Communicator cover bracket (OBSOLETE) |
1 |
|
|
048 |
170-0387
|
Brush holder assembly (OBSOLETE) |
1 |
|
|
049 |
164-0325
|
Carbon brush with lead and terminal (sold individually) |
4 |
|
|
050 |
372-1685
|
Springs |
4 |
|
|
051 |
170-0384
|
Field assembly (OBSOLETE) |
1 |
|
|
052 |
170-0418
|
Pulley end bell bracket |
1 |
|
|
053 |
170-0382
|
Oil seal |
1 |
|
|
054 |
372-1890
|
Bearing (rear) |
1 |
|
|
055 |
170-0381
|
Armature assembly (OBSOLETE) |
1 |
|
|
056 |
999-0574
|
Screw 10-24 x 1 3/4 pan head slotted zinc plated |
4 |
|
|
057 |
170-0321
|
Front end bearing |
1 |
|
|
058 |
N/A
|
Not available |
1 |
Label series 11 |
|
